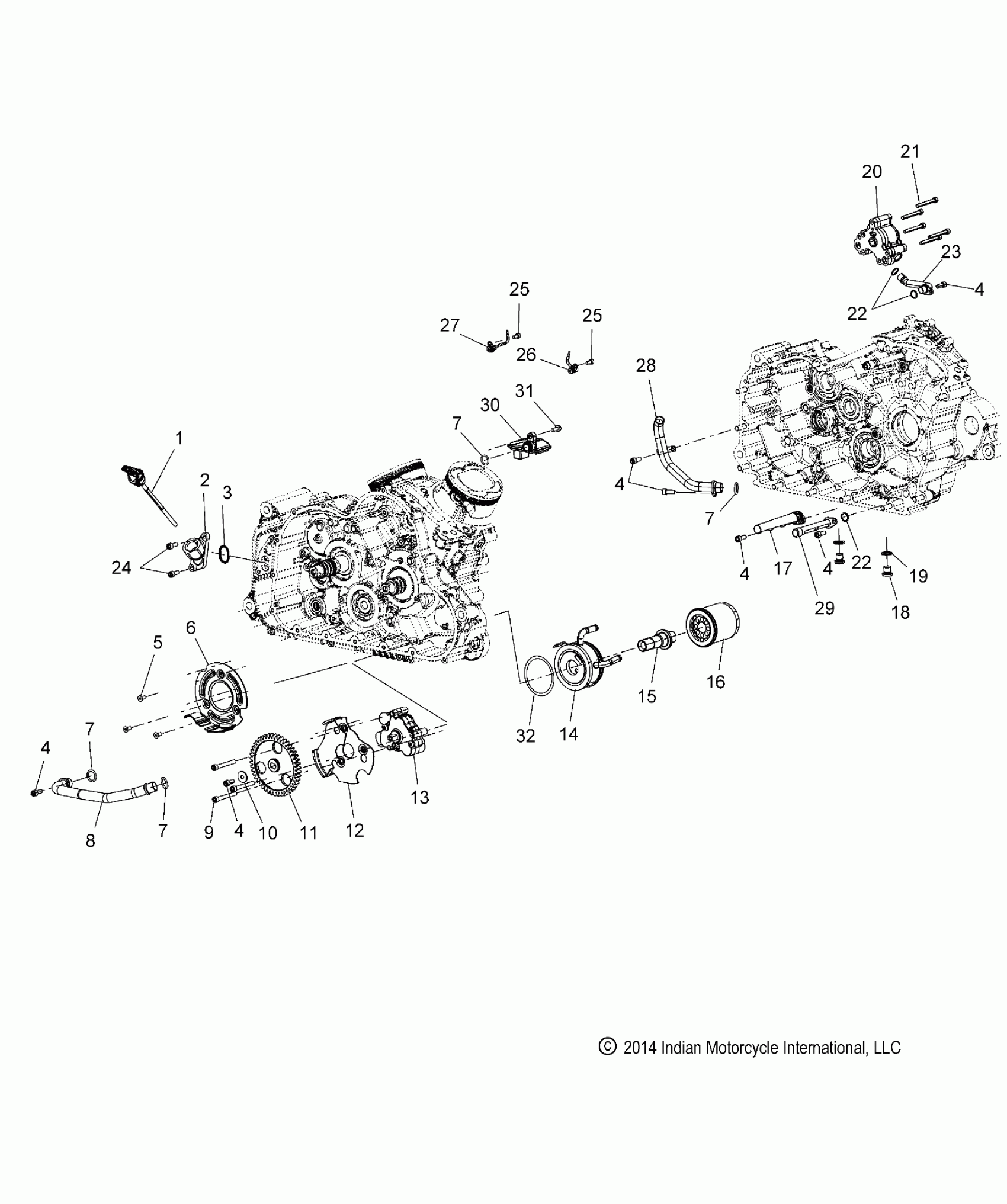

Polaris SCOUT - N15MSA00AA/AB/AC/AE ENGINE, OIL SYSTEM - N15MSA00AA/AB/AC/AE (49INDIANOILFILTER15SCOUT) Diagram

#

Description
Price

1

DIPSTICK

5451846

$36.41

2

ADAPTER, DIPSTICK, BRONZE

5139173-687

$47.60

3

SEAL, DIPSTICK ADAPTER

5415005

$4.76

4

SCREW

7517775

$5.22

4

SCREW

7517775

$5.22

4

SCREW

7517775

$5.22

4

SCREW

7517775

$5.22

4

SCREW

7517775

$5.22

4

SCREW

7517775

$5.22

5

SCREW

7518817

$3.97

6

SHIELD-GEAR,CRANK

5258759

$40.46

7

O-RING

5413837

$4.84

7

O-RING

5413837

$4.84

7

O-RING

5413837

$4.84

7

O-RING

5413837

$4.84

8

TUBE, PRESSURE, OIL INLET

2521510

$60.70

9

SCREW

7518348

$5.69

10

WASHER

7556054

$11.33

11

GEAR, OIL PUMP

5451819

$36.41

12

SHIELD, GEAR, OIL PUMP

5258842

$32.37

13

ASM., OIL PUMP [INCL. 11]

1205159

$152.37

14

ASM., OIL COOLER

1205160

$179.11

15

SPIGOT, OIL COOLER

5139240

$77.44

16

Filter, Oil

2520799

$11.90

17

SCREEN, OIL INLET, SCAVENGE

2521285

$48.56

18

PLUG, SOCKET

7052306

$15.37

19

WASHER-COPPER SEALING

7556937

$3.22

20

ASM., OIL PUMP, DUAL SCAVENGE

1205110

Unavailable

21

SCREW

7518348

$5.69

22

O-RING

5414100

$0.79

22

O-RING

5414100

$0.79

23

TUBE, SCAVENGE, INLET

2521479

Unavailable

24

SCREW

7517272

$7.84

25

SCREW

7517847

$3.17

25

SCREW

7517847

$3.17

26

ASM., PISTON, COOLING JET, FRONT

1205134

$42.84

27

ASM., PISTON, COOLING JET, REAR

1205135

$42.84

28

TUBE, SCAVENGE, OIL RETURN

2521384

$67.76

29

PICKUP, SCAVENGE

2521480

$58.08

30

ASM., OIL PICKUP

2521505

$44.99

31

SCREW

7520179

$5.56

32

O-RING [SVC]

5415708

$6.99
