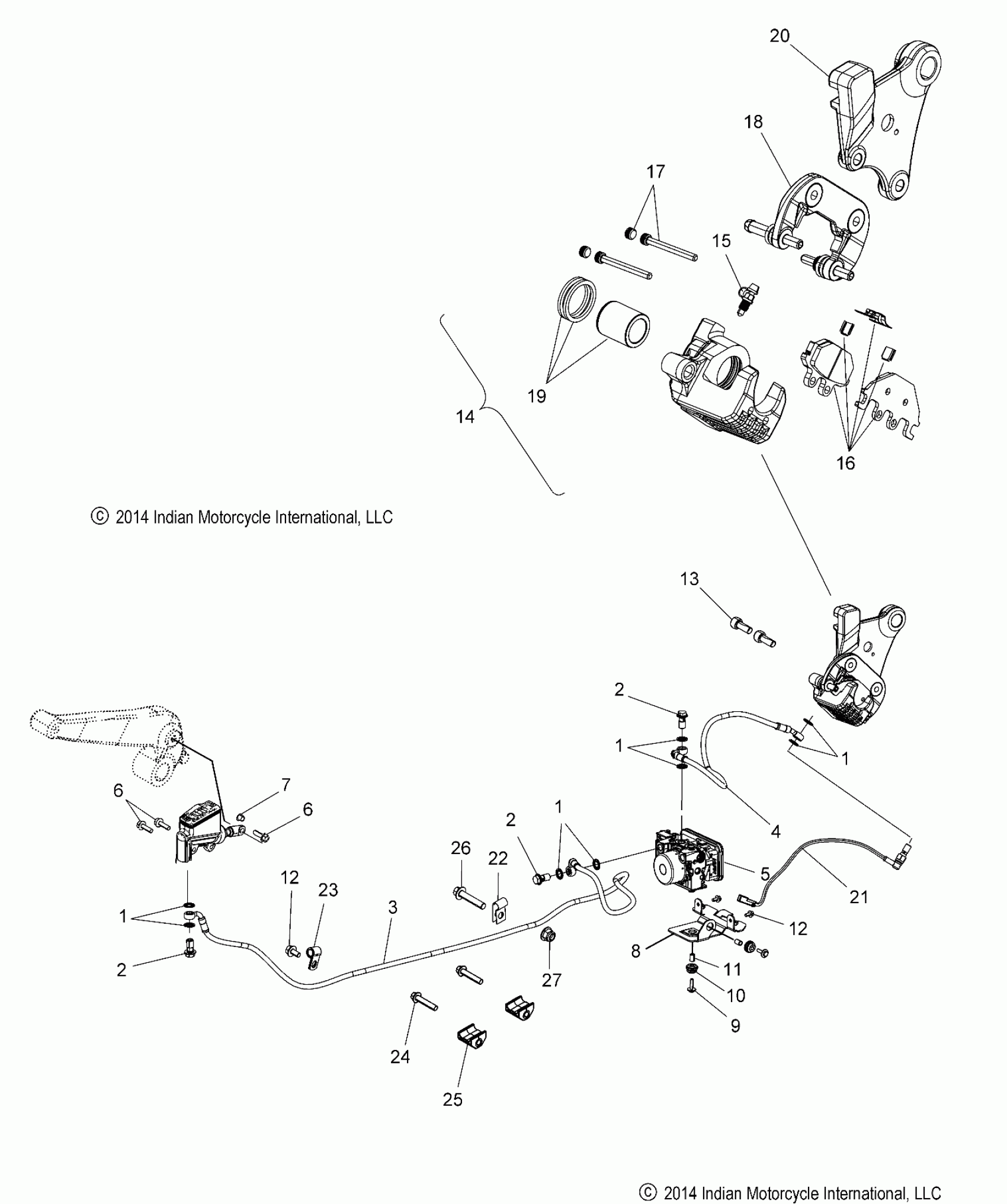

Polaris SCOUT - N15MSA00AA/AB/AC/AE BRAKES, REAR ASM., ABS (INTL MODELS ONLY) - N15MSA00AA/AB/AC/AE (49INDIANBRAKERR15SCOUT2) Diagram

#

Description
Price

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

3

HOSE, BRAKE, ABS, REAR MASTER CYL.

1912268

$93.08

4

HOSE, BRAKE, ABS, REAR CALIPER

1912269

$68.79

5

MODULE, ABS, SVC, CRUISER

2205610

$849.99

6

SCREW

7518141

$4.76

6

SCREW

7518141

$4.76

7

BUSHING, BRAKE PIVOT

5338020

$9.52

8

BRKT, MOUNT, LOWER

1021210

$40.46

9

COLLAR, ABS

5136840

$2.38

10

GROMMET, ABS MOUNT

5413711

$3.17

11

SCREW, HXHD

7519089

$3.97

12

SCREW, HXFLG

7517704

$7.84

12

SCREW, HXFLG

7517704

$7.84

13

SCREW

7517990

Unavailable

14

ASM., REAR CALIPER/BRACKET [INCL. 18]

1912483-266

Unavailable

14

CALIPER, REAR, BLK

1911992-266

$199.99

15

KIT, BLEEDER SET

2205851

$87.13

16

KIT, BRAKE PADS, REAR CALIPER [INCL. SPRING AND CLIPS]

2205854

$64.99

17

KIT, SPRINGS AND PIN, REAR CALIPER

2205855

$32.37

18

KIT, BRKT., REAR CALIPER

2205856

$58.08

19

KIT, PISTON AND SEALS, REAR CALIPER

2205857

$11.90

20

MOUNT, CALIPER, REAR, BLK

5138892-266

$76.17

21

SWITCH, BANJO

1912344

$80.94

22

CLAMP-CABLE

7080367

$2.38

23

CLAMP-REAR BRAKE

7080983

$4.35

24

SCREW

7518530

$3.97

25

CLIP, HOSE, CABLE

5415337

$23.81

26

SCREW

7517881

$1.98

27

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.38
