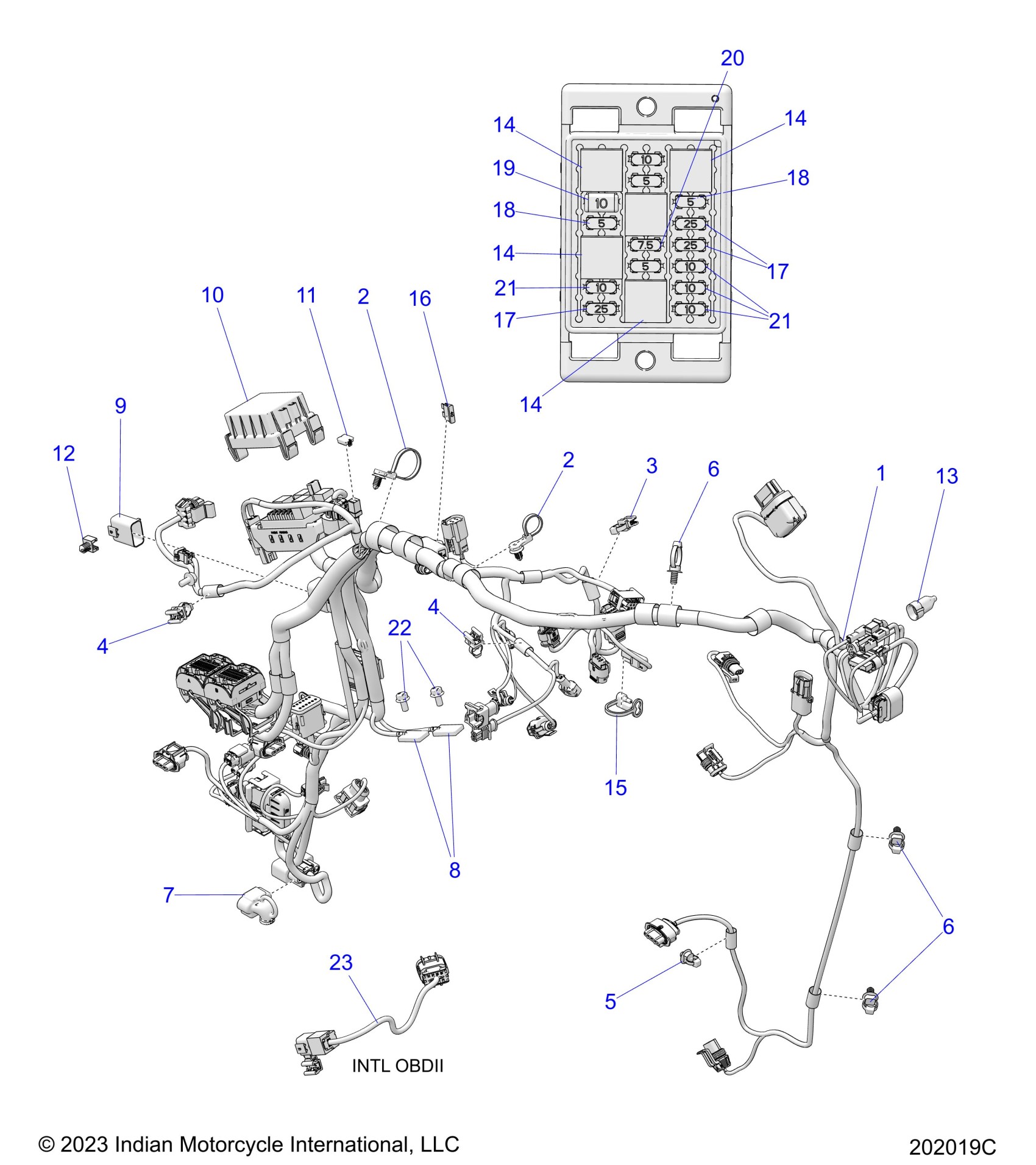

Polaris SCOUT CLASSIC ALL OPTIONS (R02) - N25SCB76AA/BA/CA/EA/JA/PA/XA/C76AA/C/BA/C/CA/C/EC/JC/PC/XC/D76JK/R/W/PK/R/W/XK/R/W/F70ER/F76AA/C/K/R ELECTRICAL, WIRE HARNESS - N25SCB76/SCC76/SCD76/SCF76 ALL OPTIONS (202019C) Diagram

HARN-CHASSIS,IND,CMS,V1 [INCLUDES 2-21]

2417451

$1,324.99

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.74

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.74

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$33.32

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$33.32

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

BOOT-RUBBER

5418919

$5.65

COVER-RING TERMINAL

4082136

Unavailable

COVER-TYCO, 16P, F

4081624

$9.70

COVER-FUSEBOX,CMS,V

4081576

$29.99

CAP-JST,6P,F

4019150

$3.97

CLIP-CONNECTOR,GREY

4018311

$3.99

SENSOR-AIR TEMP,-30C TO +80C

4017980

$64.75

RELAY, SPST, 12V, 20A, SEALED, HFA

4016186

$36.41

RELAY, SPST, 12V, 20A, SEALED, HFA

4016186

$36.41

RELAY, SPST, 12V, 20A, SEALED, HFA

4016186

$36.41

RELAY, SPST, 12V, 20A, SEALED, HFA

4016186

$36.41

COVER-CONNECTOR,SAE

4015736

Unavailable

FUSE, ATC 40 AMP

4012421

$43.56

FUSE-25A,MINI BLADE

4011653

$8.89

FUSE-25A,MINI BLADE

4011653

$8.89

FUSE-5A,MINI BLADE

4011652

$11.32

FUSE-5A,MINI BLADE

4011652

$11.32

BREAKER, CIRCUIT, 10 AMP, SEALED

4011371

$15.87

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

FUSE-IGNITION,10 AMP

2434016

$5.65

FUSE-IGNITION,10 AMP

2434016

$5.65

SCR-HXFL-M6X1.0X12 10.9ZFB

7521331-12

$3.97

HARN-DIAG,IND,OBDII,3-6MM CLIP [INTL ONLY] [TO 5/15/25]

2417568

$69.99

HARN-DIAG,IND,OBDII [INTL ONLY] [FROM 5/15/25]

2415819

Unavailable
