- SCOUT CLASSIC ALL OPTIONS (R02) - N25SCB76AA/BA/CA/EA/JA/PA/XA/C76AA/C/BA/C/CA/C/EC/JC/PC/XC/D76JK/R/W/PK/R/W/XK/R/W/F70ER/F76AA/C/K/R
ELECTRICAL, COMPONENTS - N25SCB76/SCC76/SCD76/SCF76 (202032C)

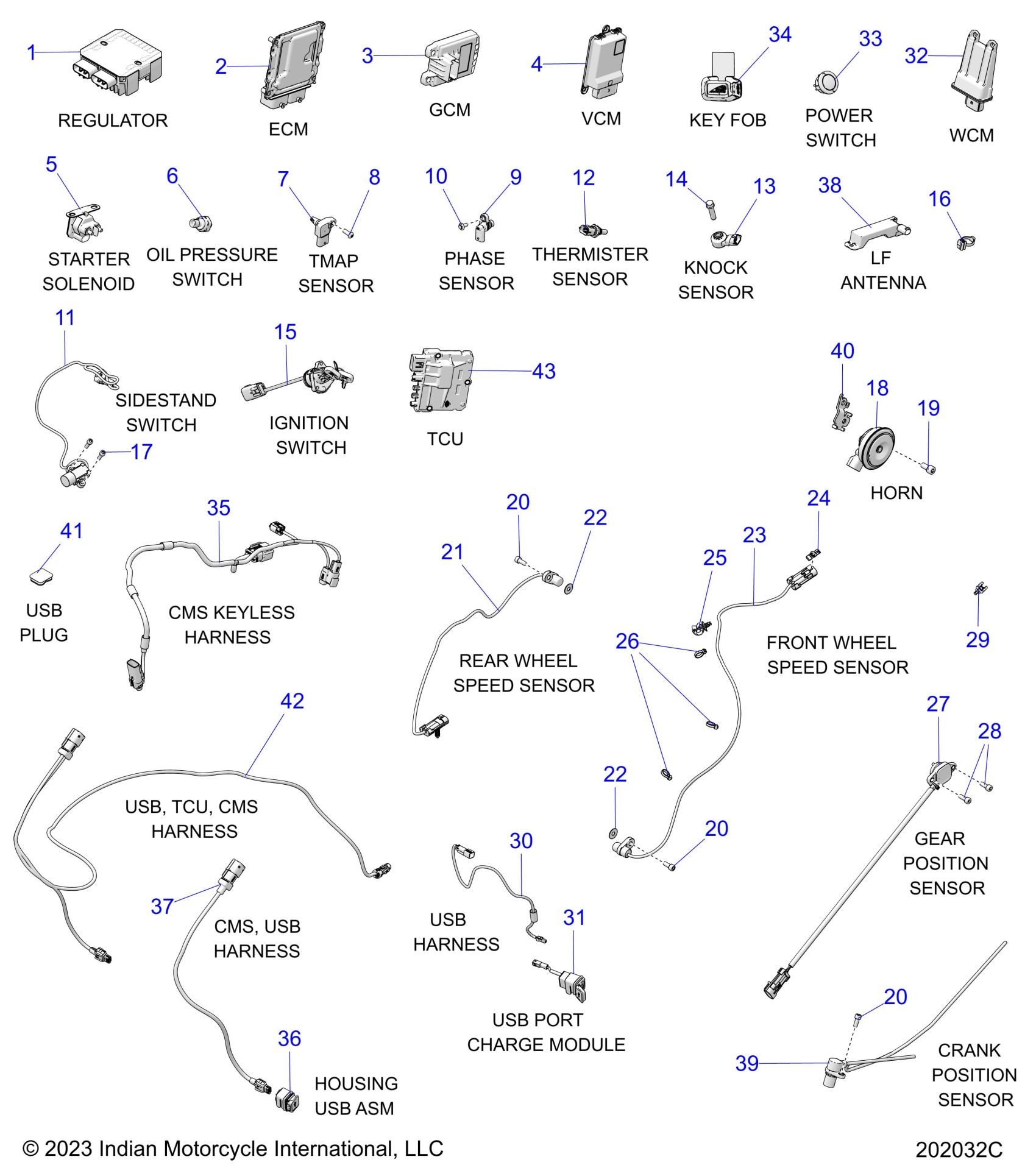

Polaris SCOUT CLASSIC ALL OPTIONS (R02) - N25SCB76AA/BA/CA/EA/JA/PA/XA/C76AA/C/BA/C/CA/C/EC/JC/PC/XC/D76JK/R/W/PK/R/W/XK/R/W/F70ER/F76AA/C/K/R ELECTRICAL, COMPONENTS - N25SCB76/SCC76/SCD76/SCF76 (202032C) Diagram
#
1
REGULATOR-3PH,50A,SERIES,HISPD
4016868
$123.99
2
ECM-HARD,MG1,112P,3LSF [DEALER INSTALL REQUIRED]
4082489
$263.99
3
GCM-HARD,4CH,0L,G1,V1 [DEALER INSTALL REQUIRED]
4080915
Unavailable
4
VCM-GEN2.1,UNPROGRAMMED,V2 [DEALER INSTALL REQUIRED]
4082236
Unavailable
5
SOLENOID-STARTER,SEALED
4014655
$49.99
6
SWITCH-OIL PRESSURE MG1
4017989
Unavailable
7
SENSOR-TMAP
2413061
Unavailable
8
SCR-TXBH-M6X1.0X16 8.8 ZC
7519748
$4.79
9
SENSOR-PHASE
4016465
$63.99
10
SCREW-HXFL-M5X0.8X12 4.8 ZPC
7518338
$4.79
11
SWITCH, SIDE STAND, PLUNGER
4014289
Unavailable
12
SENSOR-THERMISTER
4010644
$87.13
13
SENSOR-KNOCK BOSCH
2413713
$59.99
14
SCREW-M8X1.25X30,HX/FL-YD
7517262
$5.59
15
ASM-IGN/NO FRK LK [INCLUDES SWITCH AND KEYS]
1028600
Unavailable
15
ASM-IGN/FRK LK [INTL ONLY] [INCLUDES SWITCH, LOCK, AND KEYS]
4081381
Unavailable
16
CLIP-EDGE,1-3MM THICKNESS
7082401
$7.91
17
SCR-SH-M5X0.8X10 8.8 ZPB D204
7516610
$3.99
17
SCR-SH-M5X0.8X16 8.8 ZNBH [JAPAN ONLY]
7528254
Unavailable
18
HORN-DISK,76MM DIA
4081384
Unavailable
19
SCREW-SH-M8X1.25X16 8.8 ZPC
7519894
Unavailable
20
SCREW-SH-M6X1.0X15 10.9 ZPC
7517272
$7.19
20
SCREW-SH-M6X1.0X15 10.9 ZPC
7517272
$7.19
20
SCREW-SH-M6X1.0X15 10.9 ZPC
7517272
$7.19
21
SENSOR-WHEEL SPEED,590MM
4081070
Unavailable
22
SHIM-SENSOR,ABS,0.5MM
5255106
Unavailable
22
SHIM-SENSOR,ABS,0.5MM
5255106
Unavailable
23
SENSOR-WHEEL SPEED,803.5MM
4081071
Unavailable
24
CLIP-FIR,HOLE6.35MM
7082134
$3.99
25
CLIP-NYLON, C, FIR-TREE
7662310
$4.79
26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
SENSOR-GEAR POSITION,N-6,475
4019453
Unavailable
28
SCREW-SH-M6X1.0X16 8.8 ZPY D204
7519303
$3.99
29
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
$12.79
30
HARN-USB,MODULE,CMS,V [LIMITED MODELS]
2417126
Unavailable
31
MODULE-USB PORT,CHRG ONLY [LIMITED MODELS]
4081613
Unavailable
32
WCM,GEN1,UNPROGRAMMED,V1 [DEALER INSTALL REQUIRED] [LIMITED +TECH MODELS]
4019281
Unavailable
32
ASM-WCM,GEN1,PGM,V4,315MHZ [LIMITED +TECH MODELS] [JAPAN ONLY]
2417572
Unavailable
33
SWITCH-POWER, 38MM BLACK [LIMITED +TECH MODELS]
4016998
Unavailable
34
KEYFOB-GEN2,NOKEY,0B,V1 [LIMITED +TECH MODELS]
4017768
Unavailable
34
KEYFOB-GEN2,NOKEY,0B,V1,315MHZ [LIMITED +TECH MODELS] [JAPAN ONLY]
4019469
Unavailable
35
HARN-KEYLESS,IND,CMS,D1 [LIMITED +TECH MODELS]
2416667
Unavailable
36
ASM-USB,HOUSING [LIMITED +TECH MODELS]
2639192
Unavailable
37
HARN-USB,CMS [LIMITED +TECH MODELS]
2416824
Unavailable
38
ANTENNA-LF,21KHZ [LIMITED +TECH MODELS]
4018381
Unavailable
39
SENSOR-CRANK POSITION,445MM
4015068
$107.99
40
BRKT-MOUNT,HORN
5274735
Unavailable
41
PLUG-USB [BASE MODELS]
5416461
Unavailable
42
HARN-CELL,USB,TCU,CMS [LIMITED +TECH MODELS]
2416825
Unavailable
43
TCU-PGM,500K,G1,V1.2 [LIMITED +TECH MODELS]
2418125
Unavailable
43
TCU-PGM,500K,G1,V1.2,GLOBAL [INTL] [LIMITED +TECH MODELS]
2418126
Unavailable
