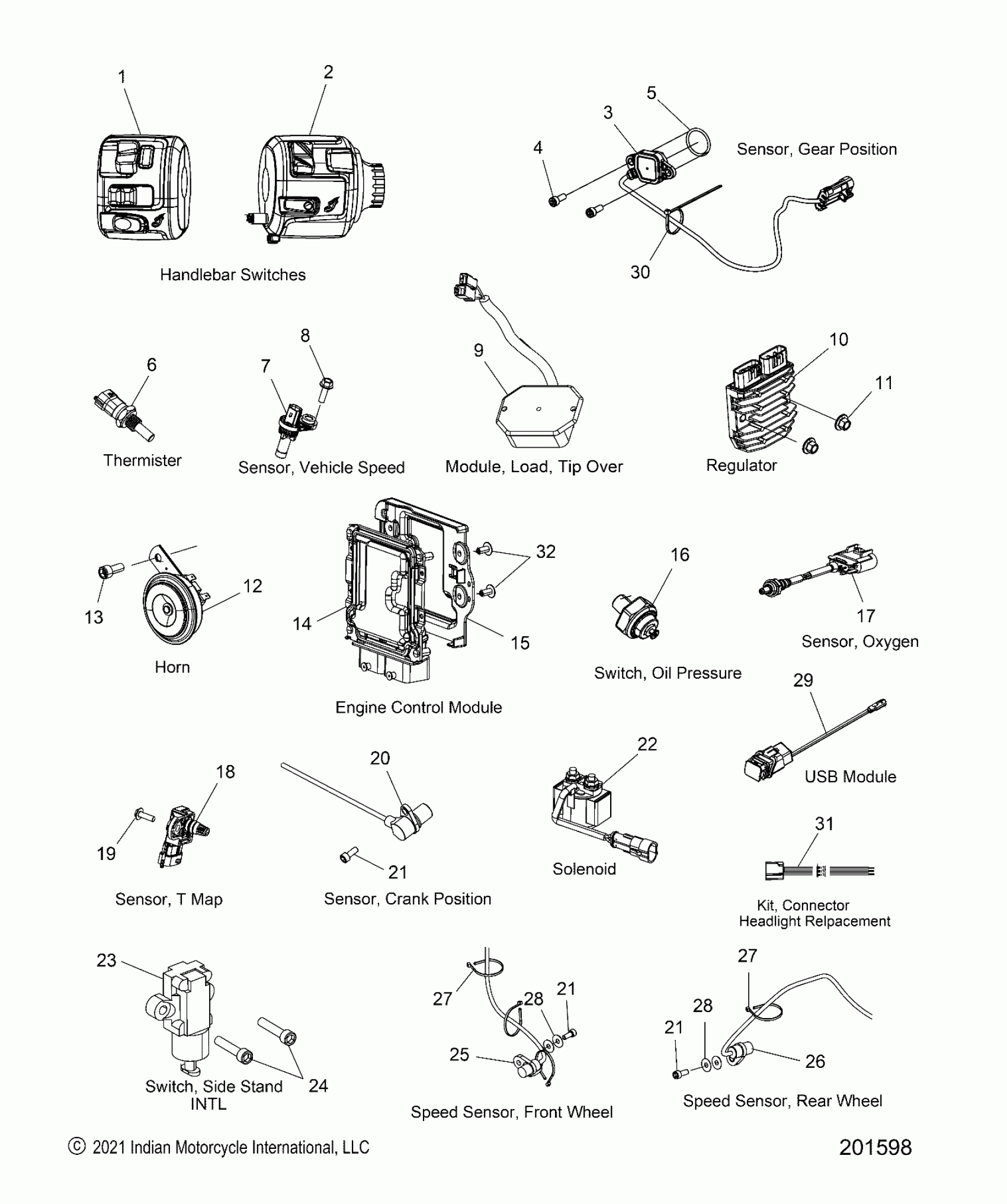

Polaris SCOUT BOBBER/BOBBER TWENTY ALL OPTIONS (R02) - N22MTA0011/6/A/D/H/U/A1/5/6/A/C/D/G/U/B1/5/6/A/C/D/G/U/C1/5/6/A/C/D/G/U/E1/5/6/A/C/D/G/H/U/P1/6/A/D/ ELECTRICAL, COMPONENTS - N22MTA00/MTB00/MTG00/MTH00 ALL OPTIONS (201598) Diagram

#

Description
Price

1

CUBE, SWITCH, LH

4014449

Unavailable

1

SCR-M5X0.8X25,TRX,GR8.8

7519939

$3.97

2

CUBE, SWITCH,RH

4014450

$344.99

2

SCREW

7519939

$3.97

3

SENSOR-GEAR POSITION,N-6,475

4019453

$91.97

4

SCR-SH-M6X1.0X12

7519303

$3.97

5

O-RING

5412530

$1.60

6

SENSOR-THERMISTER

4010644

$91.97

7

SENSOR, VEHICLE SPEED

4011884

$232.37

8

SCR-HXFL-M6X1.0X20 8.8 ZPB D51

7517750

$10.32

9

MODULE, LOAD/TIP OVER

4017165

$234.99

10

REGULATOR-3PH,35A,SERIES,105C

4012941

$284.99

11

NUT-HXFLGHD,M6,0600087

7710495

$5.22

12

HORN-DISK,350HZ,76MM DIA

4015254

$77.44

13

SCR-SH-M8X1.25X16 8.8 ZPC

7519894

$4.76

14

ECM, NO START, ME17 [SVC]

4014125

$749.99

15

MOUNT, ECM

5451843

$32.37

16

SWITCH-OIL PRESSURE-NON-NPT

4080753

Unavailable

17

SENSOR, OXYGEN

4016021

$169.98

18

SENSOR-TMAP DSS3-TF

2411528

$97.13

19

SCR-M5X0.8X16,HX/FL-Y

7517277

$3.17

20

SENSOR, CRANK POSITION

4015068

$135.54

21

SCR-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

21

SCR-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

21

SCR-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

22

SOLENOID-STARTER,RUBBER MNT

4012017

$80.94

23

SWITCH, SIDE STAND, PLUNGER [INTL. ONLY]

4014289

$64.75

24

SCR-SH-M5X0.8X16 8.8 ZPB [INTL. ONLY]

7516610

$3.97

25

SENSOR, WHEEL SPEED

4013251

$242.05

26

SENSOR, WHEEL SPEED, REAR

4014216

$256.57

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

SHIM, SENSOR, ABS

5255106

Unavailable

28

SHIM, SENSOR, ABS

5255106

Unavailable

29

MODULE-USB

2414051

$119.99

30

STRAP-CABLE TIE 4"

7080792

$4.35

31

K-CONNECTOR, HEADLIGHT REPLACEMENT

2205394

$71.41

32

CLIP-XMAS TREE,.187 DIA

5432966

$1.19
