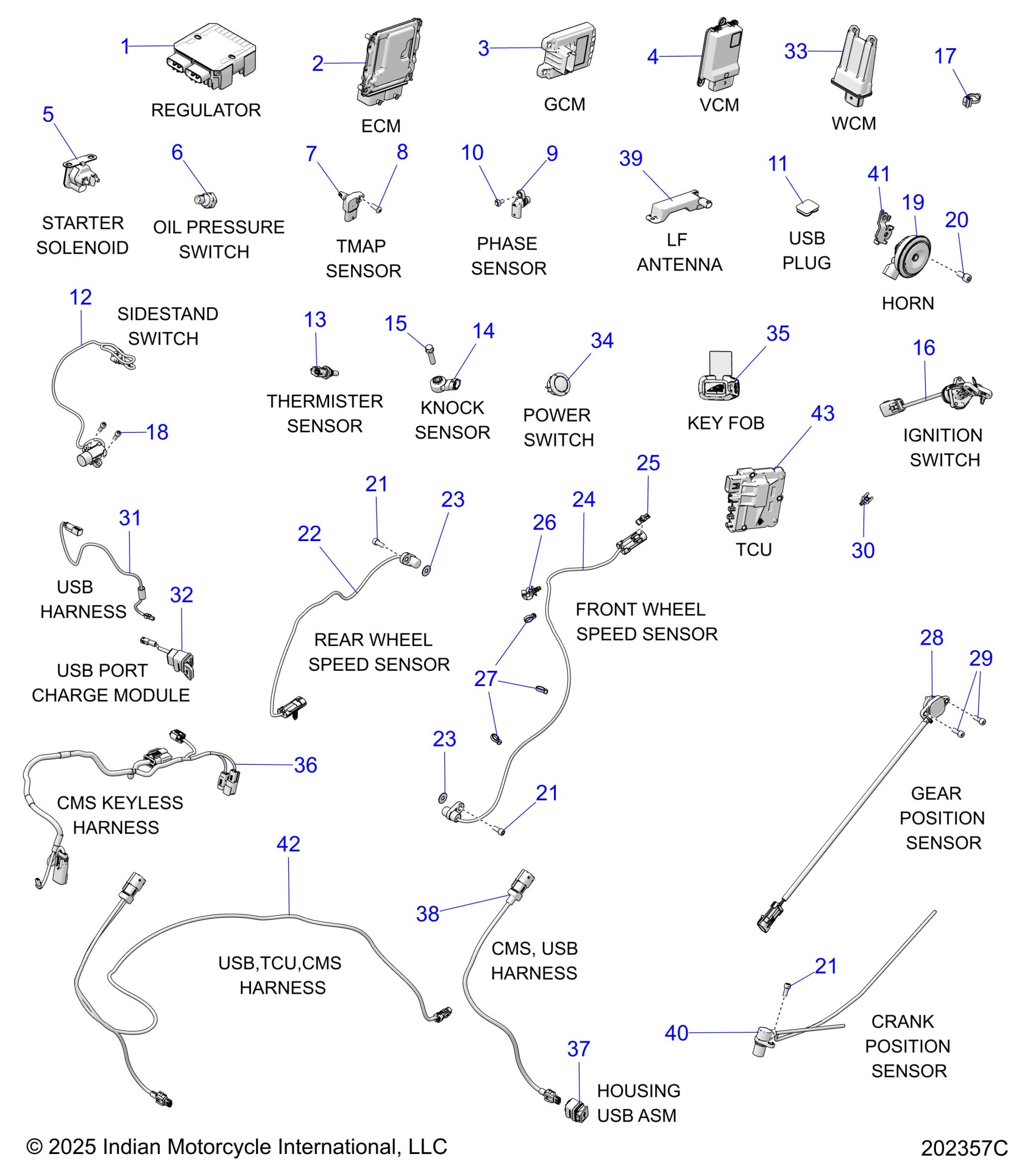

Polaris SCOUT BOBBER ALL OPTIONS (R01) - N26SBB76AA/P/BA/P/CA/P/DA/P/EA/P/FA/JA/P/PA/P/XA/D70FC/H/L/D76AA/C/H/L/P/BA/C/H/L/P/CC/H/L/P/DA/C/H/ ELECTRICAL, COMPONENTS - N26SBB76/SBC76/SBD76 (202357C) Diagram

#

Description
Price

1

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

2

ECM-HARD,MG1,112P,3LSF [DEALER INSTALL REQUIRED]

4082489

$344.99

3

GCM-HARD,4CH,SHORT,V2 [DEALER INSTALL REQUIRED]

4082719

$344.99

4

VCM-GEN2.1,UNPROGRAMMED,V2 [DEALER INSTALL REQUIRED]

4082236

$304.99

5

SOLENOID-STARTER,SEALED

4014655

$54.99

6

SWITCH-OIL PRESSURE MG1

4017989

$44.51

7

SENSOR-TMAP

2413061

Unavailable

8

SCR-TXBH-M6X1.0X16 8.8 ZC

7519748

$4.76

9

SENSOR-PHASE

4016465

$68.79

10

SCREW-HXFL-M5X0.8X12 4.8 ZPC

7518338

$5.99

11

PLUG-USB

5416461

$3.97

12

SWITCH, SIDE STAND, PLUNGER

4014289

$64.75

13

SENSOR-THERMISTER

4010644

$91.97

14

SENSOR-KNOCK BOSCH

2413713

$64.75

15

SCREW-M8X1.25X30,HX/FL-YD

7517262

$5.56

16

ASM-IGN/NO FRK LK [INCLUDES SWITCH AND KEYS]

2640623

Unavailable

16

ASM-IGN/FRK LK [INTL ONLY] [INCLUDES SWITCH, KEYS, AND LOCK]

2640625

Unavailable

17

CLIP-EDGE,1-3MM THICKNESS

7082401

$8.99

18

SCR-SH-M5X0.8X10 8.8 ZPB D204

7516610

$3.97

18

SCR-SH-M5X0.8X16 8.8 ZNBH [JAPAN ONLY]

7528254

$0.79

19

HORN-DISK,76MM DIA

4081384

$67.76

20

SCREW-SH-M8X1.25X16 8.8 ZPC

7519894

$4.76

21

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

21

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

21

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

22

SENSOR-WHEEL SPEED,590MM

4081070

$232.37

23

SHIM-SENSOR,ABS,0.5MM

5255106

Unavailable

23

SHIM-SENSOR,ABS,0.5MM

5255106

Unavailable

24

SENSOR-WHEEL SPEED,803.5MM

4081071

$232.37

25

CLIP-FIR,HOLE6.35MM

7082134

$3.97

26

CLIP-NYLON, C, FIR-TREE

7662310

$4.76

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

SENSOR-GEAR POSITION,N-6,475

4019453

$91.97

29

SCREW-SH-M6X1.0X16 8.8 ZPY D204

7519303

$3.97

30

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

31

HARNESS-USB,MODULE,CMS,V1 [LIMITED MODELS]

2418223

$29.99

32

MODULE-USB PORT,CHRG ONLY [LIMITED MODELS]

4081613

$124.99

33

WCM,GEN1,UNPROGRAMMED,V1 [DEALER INSTALL REQUIRED] [LIMITED +TECH MODELS]

4019281

$649.99

33

ASM-WCM,GEN1,PGM,V4,315MHZ [LIMITED +TECH MODELS] [JAPAN ONLY]

2417572

$594.99

34

SWITCH-POWER, 38MM BLACK [LIMITED +TECH MODELS]

4016998

$82.29

35

KEYFOB-GEN2,NOKEY,0B,V1 [LIMITED +TECH MODELS]

4017768

$290.46

35

KEYFOB-GEN2,NOKEY,0B,V1,315MHZ [LIMITED +TECH MODELS] [JAPAN ONLY]

4019469

$266.25

36

HARNESS-KEYLESS,IND,CMS,V1 [LIMITED +TECH MODELS]

2418220

$104.99

37

ASM-USB,HOUSING [LIMITED +TECH MODELS]

2639192

$29.99

38

HARN-USB,CMS [LIMITED +TECH MODELS]

2416824

$49.99

39

ANTENNA-LF,21KHZ [LIMITED +TECH MODELS]

4018381

$48.56

40

SENSOR-CRANK POSITION,445MM

4015068

$135.54

41

BRKT-MOUNT,HORN

5274735

$10.99

42

HARN-CELL,USB,TCU,CMS [LIMITED +TECH MODELS]

2416825

$109.99

43

TCU-HARD,500K,G1,V1.3,NA [DEALER INSTALL REQUIRED] [LIMITED +TECH MODELS]

4083664

$859.99

43

TCU-HARD,500K,G1,V1.3,GLOBAL [DEALER INSTALL REQUIRED] [LIMITED +TECH MODELS] [INTL MODELS]

4083665

Unavailable
