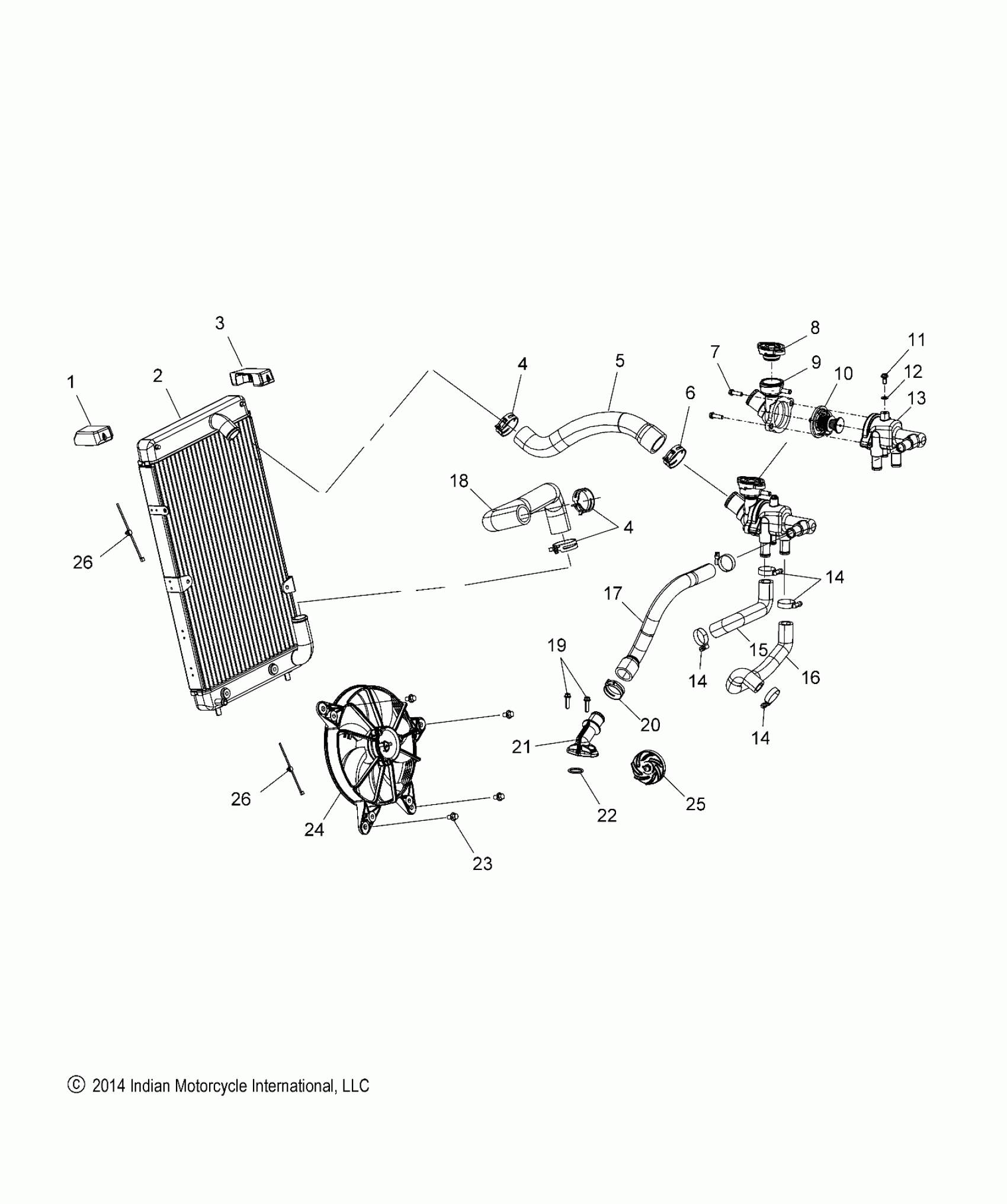

Polaris SCOUT 1200/ANNIVERSARY ALL OPTIONS (R01) - N20MSA00A1/7/A/D/E/F/M/V/B1/7/A/D/E/F/M/V/C1/7/A/D/E/F/M/V/E1/7/A/D/E/F/M/V/B00AA/BA/CA/E00AW/BW/CW/ ENGINE, COOLING ASM. - N20MSA00/MSB00/MSE00 ALL OPTIONS (49INDIANCOOLING15SCOUT) Diagram

#

Description
Price

1

MOUNT, RADIATOR, UPPER, LH

5415296

$8.89

2

RADIATOR

1240902

$600.30

3

MOUNT, RADIATOR, UPPER, RH

5415297

$8.89

4

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

4

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

5

HOSE-RAD IN

5414845

$40.46

6

SPRINGBAND-CLAMP 38/12,BLK

7082025

$5.56

7

SCR-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.76

8

CAP, PRESSURE

1240797

$24.27

9

COVER, THERMOSTAT

5453083

$60.70

10

THERMOSTAT

7052600

$52.24

11

SCREW, BLEED

7517679

$13.49

12

WASHER, FLAT

7555998

$1.19

13

ASM., HOUSING, THERMOSTAT

1205889

$89.03

14

CLAMP-HOSE,CTN 24MM

7081976

$4.76

14

CLAMP-HOSE,CTN 24MM

7081976

$4.76

14

CLAMP-HOSE,CTN 24MM

7081976

$4.76

15

HOSE, COOLANT, FRONT HEAD OUT

5415371

$36.41

16

HOSE, COOLANT, REAR HEAD OUT

5415372

$40.46

17

HOSE, BYPASS

5415373

$40.46

18

HOSE, RADIATOR OUT

5414842

$48.56

19

SCR-HXFL-M6X1.0X20 8.8 ZPC

7520035

$4.76

20

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.14

21

BY-PASS RETURN, COOLANT

5451967

$40.46

22

O-RING

5413563

$1.60

23

SCR-M6X1.0X10,HX/FL-Y/D

7517278

$5.56

24

ASM., FAN

2412703

$280.78

25

IMPELLER, WATERPUMP

5138209

Unavailable

26

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

26

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76
