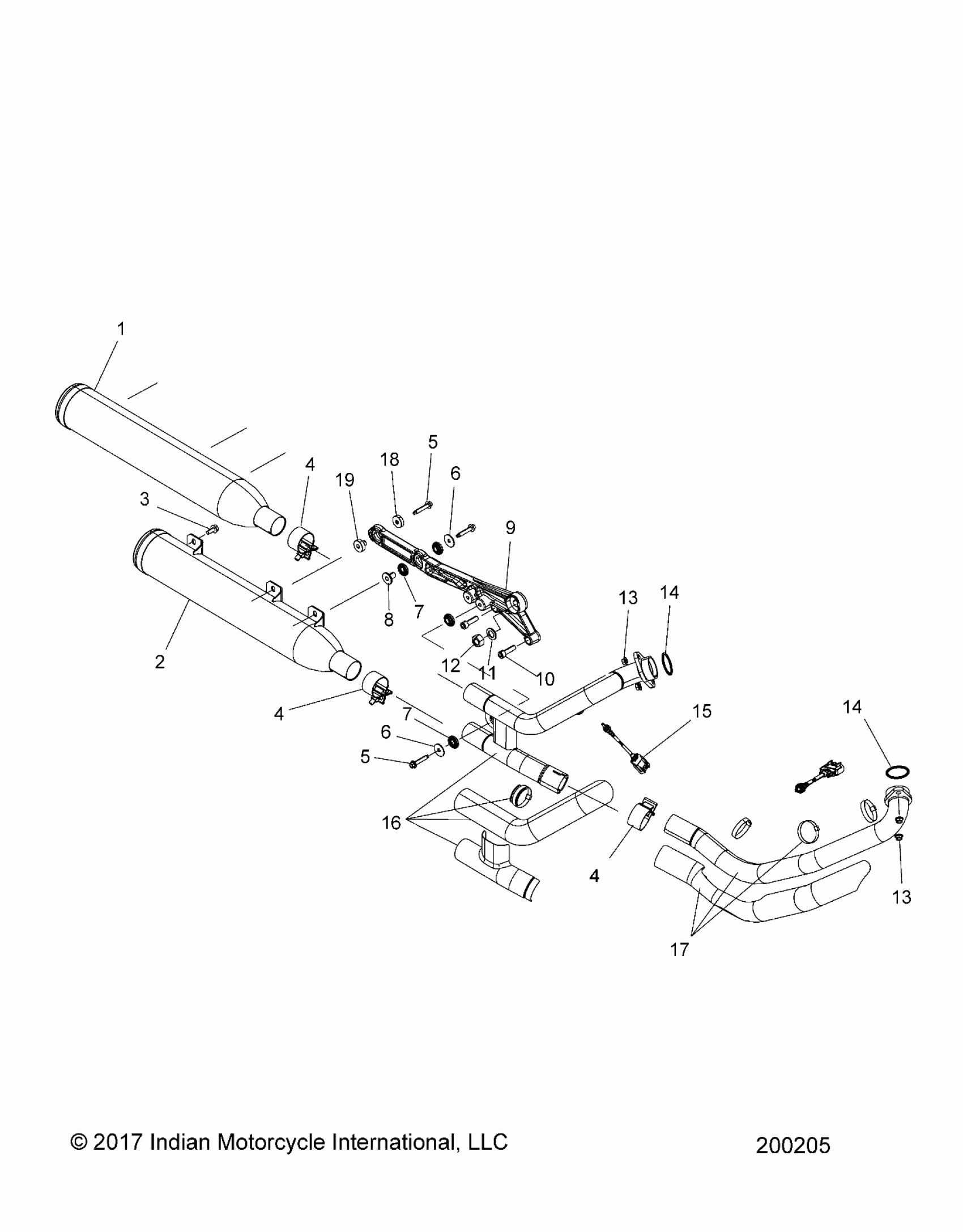

Polaris SCOUT 1200 ALL OPTIONS (R02) - N182SA00E3/8/A/G/J/V/MSA00A3/C/D/E/F/G/J/N/V/B3/C/D/E/F/G/J/N/V/C3/C/D/E/F/G/J/N/V/E3/8/A/C/D/E/F/G/ ENGINE, EXHAUST ASM. - N18MSA00/MSB00 ALL OPTIONS (200205) Diagram

SCR-TXBH-M6X1.0X8.8

7519975

Unavailable

TIP-MUFFLER

5258421

Unavailable

ASM., MUFFLER, UPPER, CHROME

1262908-156

Unavailable

ASM., MUFFLER, UPPER, E4 INTL, CHROME [INTL]

1263025-156

Unavailable

SCR-TXBH-M6X1.0X8.8

7519975

Unavailable

TIP-MUFFLER

5258421

Unavailable

ASM., MUFFLER, LOWER, CHROME

1262907-156

Unavailable

ASM., MUFFLER, LOWER, E4 INTL, CHROME [INTL]

1263026-156

Unavailable

SCREW-M8x20 HXFL

7520031

Unavailable

CLAMP, EXHAUST, SS

7081179

Unavailable

CLAMP, EXHAUST, SS

7081179

Unavailable

CLAMP, EXHAUST, SS

7081179

Unavailable

SCREW-M8x45 DOG PT

7520549

$3.99

SCREW-M8x45 DOG PT

7520549

$3.99

WASHER

7556219

$6.39

WASHER

7556219

$6.39

ISOLATOR-EXHAUST

5415881

Unavailable

ISOLATOR-EXHAUST

5415881

Unavailable

BUSHING-FLANGE

5633598

Unavailable

MOUNT, EXHAUST

5633742-658

Unavailable

SCREW-M10 SH

7519959

$1.59

WASHER

7556236

Unavailable

NUT

7540001

Unavailable

NUT

7547014

$7.84

NUT

7547014

$7.84

GASKET-EXHAUST, HEADER

5261515

Unavailable

GASKET-EXHAUST, HEADER

5261515

Unavailable

SENSOR-OXYGEN [SEE ELECTRICAL COMPONENTS PAGE]

-------

Unavailable

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

SHIELD-EXHAUST, REAR, UPPER, CHROME

1263190-156

Unavailable

SHIELD-EXHAUST, REAR, LOWER, CHROME

1263191-156

Unavailable

ASM., HEADPIPE, EXHAUST, REAR, LSGDA CHROME

1263186-156

Unavailable

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

ASM., HEADPIPE, EXHAUST, FRONT, CHROME

1263183-156

Unavailable

SPACER-EXHAUST

5141244

Unavailable

SPACER-SHOULDER, EXHAUST

5141245

Unavailable
