1973 Yamaha SC500 (SC500) Transmission Diagram

← All diagrams

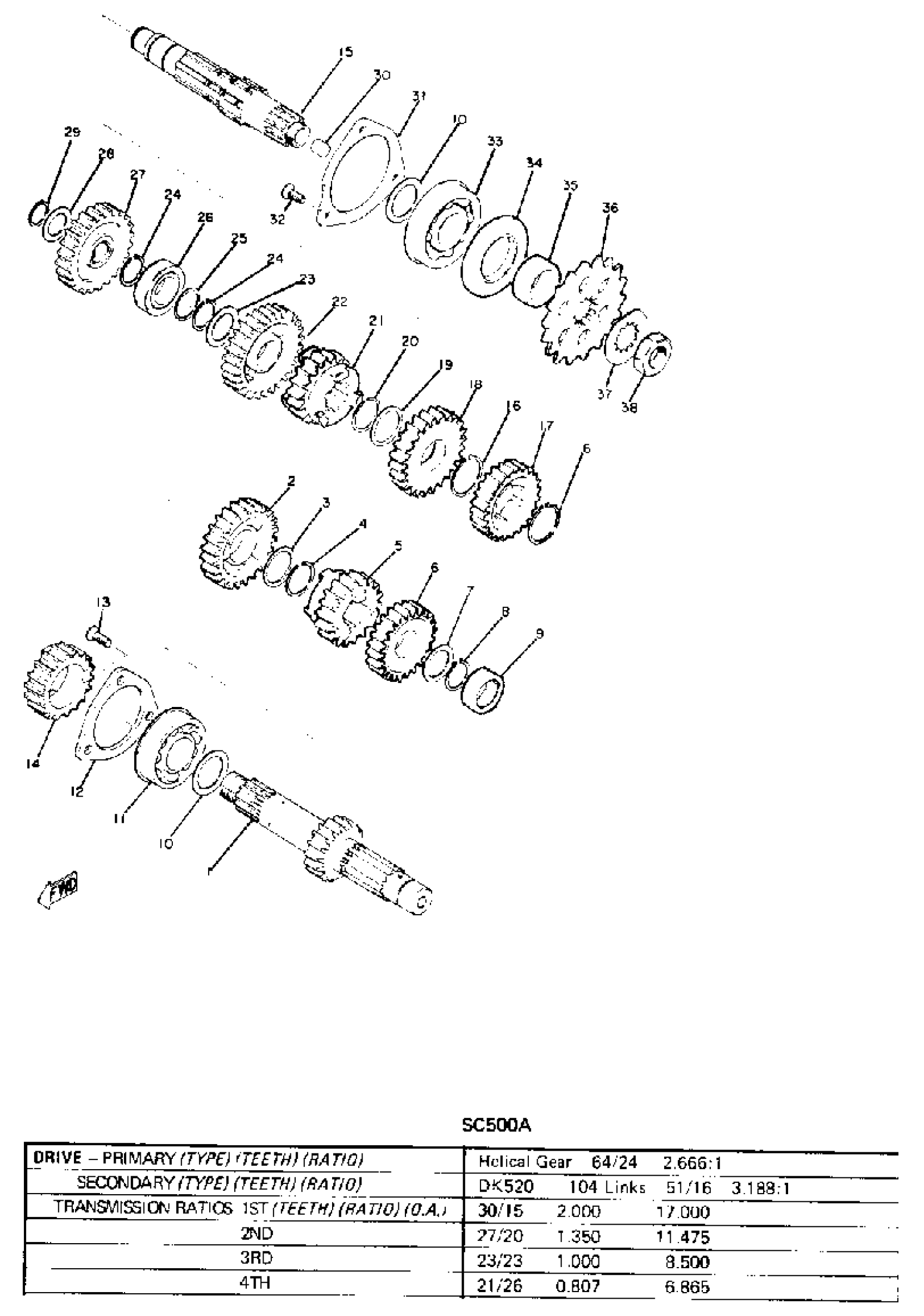

Find the part on the Transmission diagram for your 1973 Yamaha SC500 (SC500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SC500 (SC500) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(363-17411-00-00)

1
Out of stock

1

AXLE, MAIN

(363-17411-60-00)

1
Out of stock

2

GEAR, 4TH PINION

(363-17141-60-00)

1
Out of stock

2

GEAR, 2ND WHEEL

(363-17221-00-00)

1
Out of stock

3

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

4

CIRCLIP

93440-25020-00

1
Out of stock

5

GEAR, 2ND PINION

(363-17121-00-00)

1
Out of stock

5

GEAR, 2ND PINION

(363-17121-60-00)

1
Out of stock

6

GEAR, 3RD PINION

(363-17131-00-00)

1
Out of stock

7

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

8

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

9

BEARING

93311-42077-00

1
Out of stock

10

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

10

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

11

BRG,R-B 4205 52MM 185G KY

93304-20501-00

1

$90.57

In stock

12

PLATE, BRNG COVER

(363-15383-00-00)

1
Out of stock

13

SCREW, FLAT

98707-06014-00

—
Out of stock

14

GEAR, KICK PINION

(363-15631-00-00)

1
Out of stock

15

AXLE, DRIVE

(363-17421-00-00)

1
Out of stock

16

CIRCLIP, OUTER

93440-30015-00

1
Out of stock

17

GEAR, 3RD WHEEL

(363-17231-00-00)

1
Out of stock

18

GEAR, 2ND WHEEL

(363-17221-00-00)

1
Out of stock

18

NO LONGER AVAILABLE

363-17221-60-00

1
Out of stock

19

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

20

1 CIRCLIP, OUTER

93440-25027-00

1
Out of stock

21

GEAR, 4TH WHEEL

(363-17241-00-00)

1
Out of stock

22

GEAR, 1ST WHEEL

(363-17211-00-00)

1
Out of stock

22

GEAR, 1ST WHEEL

(363-17211-60-00)

1
Out of stock

23

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

24

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

25

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

26

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

—
Out of stock

27

GEAR, KICK IDLE

(363-15651-00-00)

1
Out of stock

28

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

29

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

30

. PLUG, BLIND

214-17481-00-00

1
Out of stock

31

PLATE, BRNG COVER

(363-15381-00-00)

1
Out of stock

32

SCREW, FLAT

98707-05012-00

—
Out of stock

33

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

—
Out of stock

34

OIL SEAL (35X62X6-371)

93102-35109-00

—
Out of stock

35

COLLAR

(90387-25193-00)

1
Out of stock

36

SPROCKET, DRIVE

4DN-17460-00-00

—

$50.31

In stock

36

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

1
Out of stock

37

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

38

NUT 152174630000

90179-18020-00

—
Out of stock
