1973 Yamaha SC500 (SC500) Clutch Diagram

← All diagrams

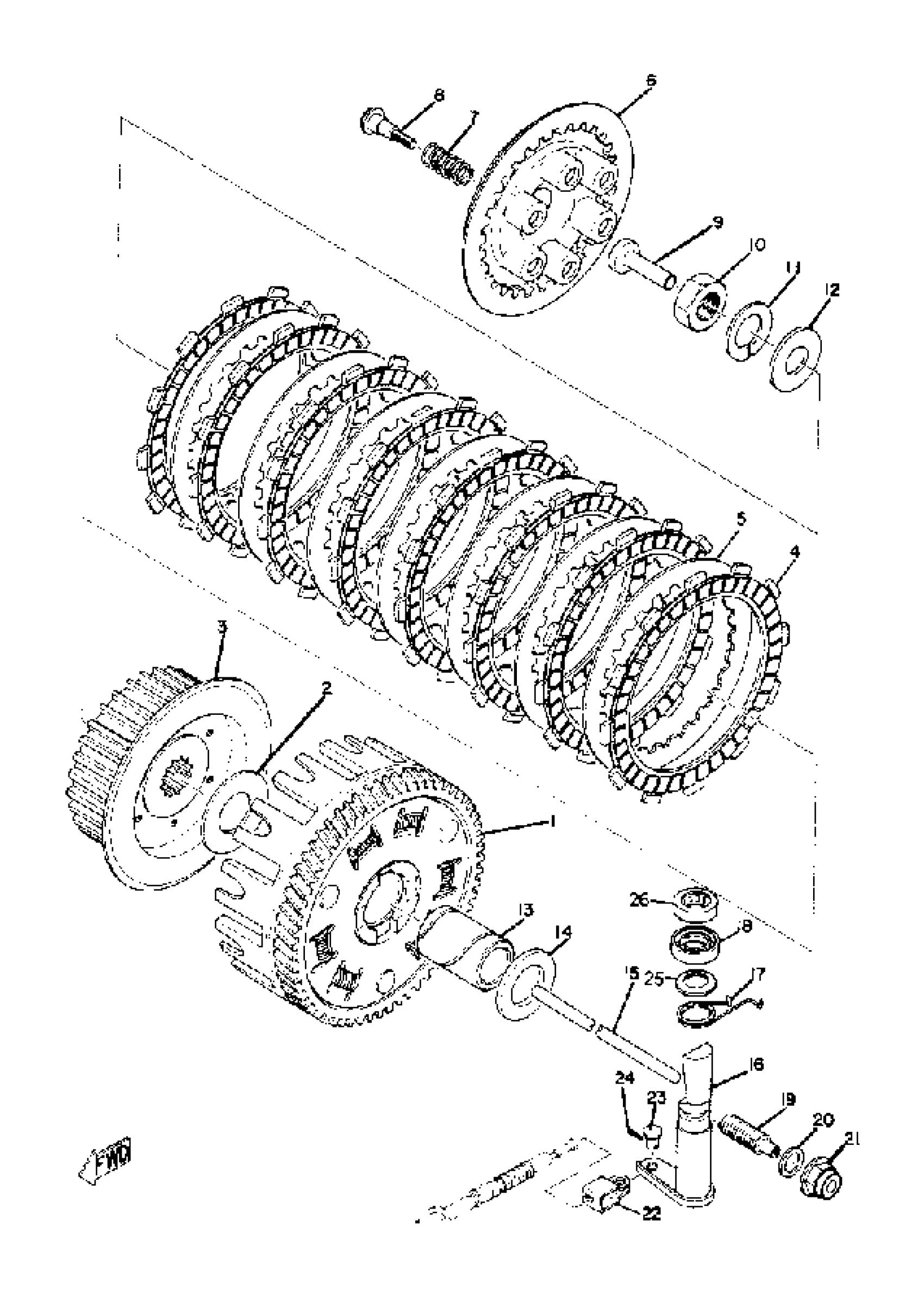

Find the part on the Clutch diagram for your 1973 Yamaha SC500 (SC500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SC500 (SC500) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(363-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(363-16301-00-00)

1
Out of stock

2

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

3

BOSS, CLUTCH

(363-16371-00-00)

1
Out of stock

4

PLATE, FRICTION

363-16321-09-00

1
Out of stock

5

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

6

PLATE, PRESSURE 1

(363-16351-00-00)

1
Out of stock

7

SPRING, COMPRESSION (400)

90501-20361-00

1

$10.92

In stock

8

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

9

ROD, PUSH

174-16356-00-00

1
Out of stock

10

NUT

90170-18089-00

1
Out of stock

11

WASHER(N15)

92907-18100-00

1

$7.09

In stock

12

WASHER (6E5)

92990-18200-00

1

$2.23

In stock

13

SPACER 1

(363-16181-00-00)

1
Out of stock

14

PLATE, THRUST

363-16154-00-00

1

$14.25

In stock

15

ROD, PUSH 1

(363-16356-00-00)

1
Out of stock

16

AXLE, PUSH LEVER

(363-16382-00-00)

1
Out of stock

16

AXLE, PUSH LEVER

434-16382-01-00

1
Out of stock

17

SPRING, TORSION

(90508-12131-00)

1
Out of stock

18

OIL SEAL (17X28X6-101)

93102-17004-00

—
Out of stock

19

SCREW, ADJUSTING

(363-16343-00-00)

1
Out of stock

20

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

21

NUT, CLUTCH ADJUSTING

583-16344-00-00

—
Out of stock

22

JOINT

214-16389-00-00

—
Out of stock

23

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

24

. PIN, COTTER

91401-10015-00

1
Out of stock

25

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

26

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

—
Out of stock
