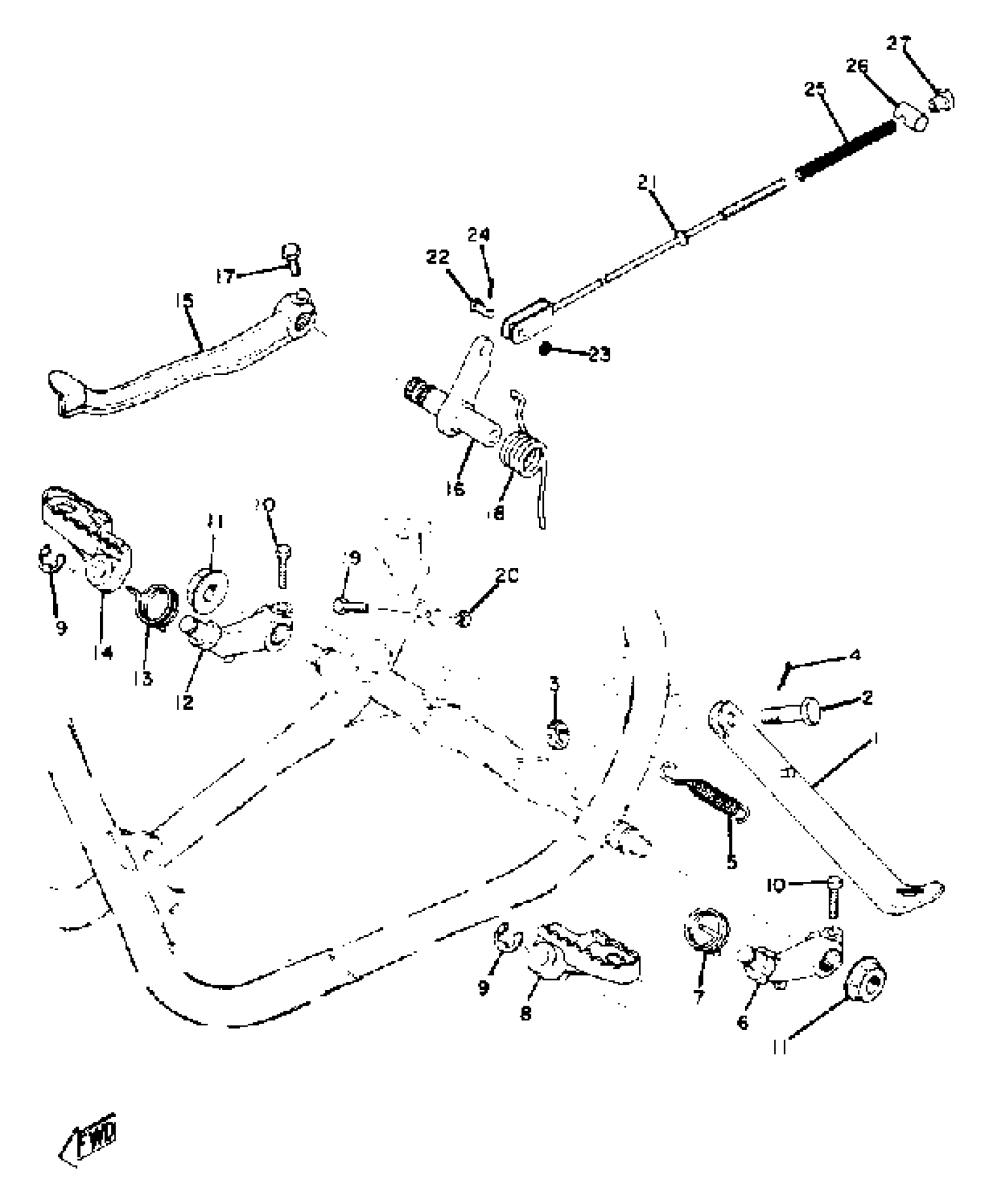

Yamaha SC500 (SC500) 1973 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

214-27311-01-00

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING, TENSION (1L9)

90506-26270-00

$15.99

6

BRACKET, FOOTREST 1

(363-27412-01-00)

Unavailable

7

SPRING, TORSION

(90508-26039-00)

Unavailable

8

FOOTREST 1

(363-27411-00-00)

Unavailable

9

CIRCLIP (137)

93430-10015-00

$9.49

10

BOLT (682)

97013-08025-00

$8.49

11

NUT, HEXAGON SMALL

95317-12700-00

$8.49

11

NUT(3GG)

90179-12588-00

$7.49

12

BRACKET, FOOTREST 2

(363-27422-01-00)

Unavailable

13

SPRING, TORSION

(90508-26112-00)

Unavailable

14

FOOTREST 2

(363-27421-00-00)

Unavailable

15

PEDAL, BRAKE

363-27211-00-33

Unavailable

16

SHAFT, BRAKE PEDAL

(363-27212-00-00)

Unavailable

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

SPRING, BRAKE PEDAL

(363-27216-00-00)

Unavailable

19

BOLT

(90109-06339-00)

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

ROD, BRAKE

363-27231-00-00

Unavailable

22

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

SPRING, (180-27236-00)

90501-10245-00

Unavailable

26

PIN 1562723700

90249-12008-00

Unavailable

27

NUT (25K)

90179-06411-00

Unavailable
