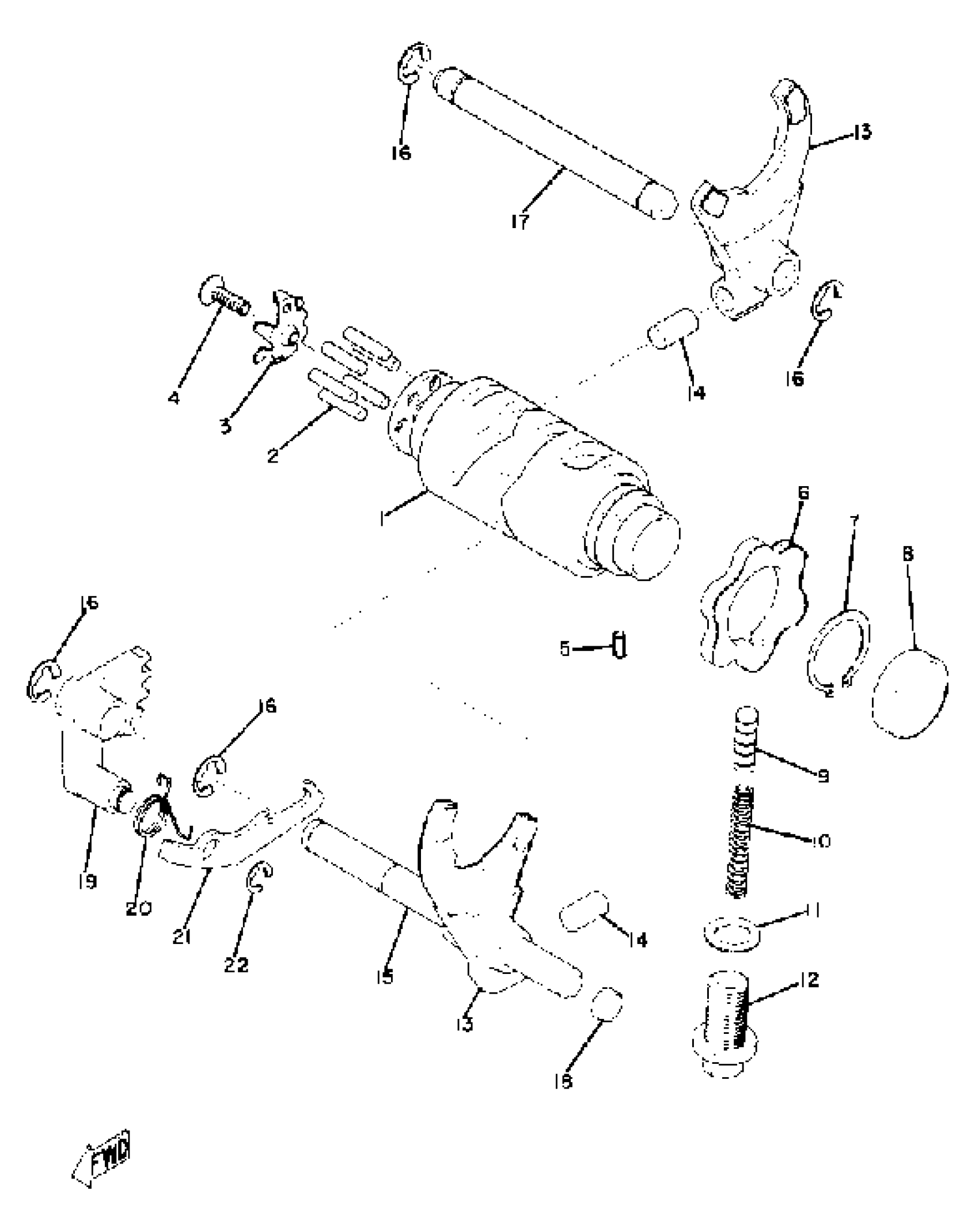

Yamaha SC500 (SC500) 1973 SHIFTER 1 Diagram

#

Description
Price

1

CAM, SHIFT

(363-18541-00-00)

Unavailable

1

CAM, SHIFT

(363-18541-01-00)

Unavailable

2

PIN, DOWEL (363)

93604-18100-00

$3.55

3

PLATE, SIDE 1

(363-18561-01-00)

Unavailable

3

PLATE, SIDE

434-18561-00-00

$5.49

4

SCREW, FLAT

98707-05012-00

$1.71

5

PLATE, STOPPER

360-18141-01-00

Unavailable

5

PIN, DOWEL (278)

93604-08071-00

$8.49

7

CIRCLIP(4A6)

99009-30400-00

$8.49

8

PLUG, SPEC''L SHAPE

(90338-32031-00)

Unavailable

9

STOPPER, CAM

278-18547-02-00

Unavailable

10

SPRING COMPRESSION278185570000

90501-10062-00

$9.49

11

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

12

BOLT (1K8)

90109-14485-00

$7.49

13

FORK, SHIFT 1

363-18511-00-00

Unavailable

14

PIN, STRAIGHT

90250-08017-00

Unavailable

15

BAR, SHIF FRK GDE 1

(363-18531-00-00)

Unavailable

16

CIRCLIP(2R6)

99001-08600-00

Unavailable

17

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

Unavailable

18

PLUG, BLIND

90334-10006-00

Unavailable

19

LEVER, SHIFT 2

(363-18122-00-00)

Unavailable

19

LEVER, CHANGE 2

434-18122-00-00

Unavailable

20

SPRING

90508-08008-00

Unavailable

21

LEVER, CHANGE 3

498-18151-03-00

Unavailable

22

CIRCLIP

99080-07600-00

Unavailable
