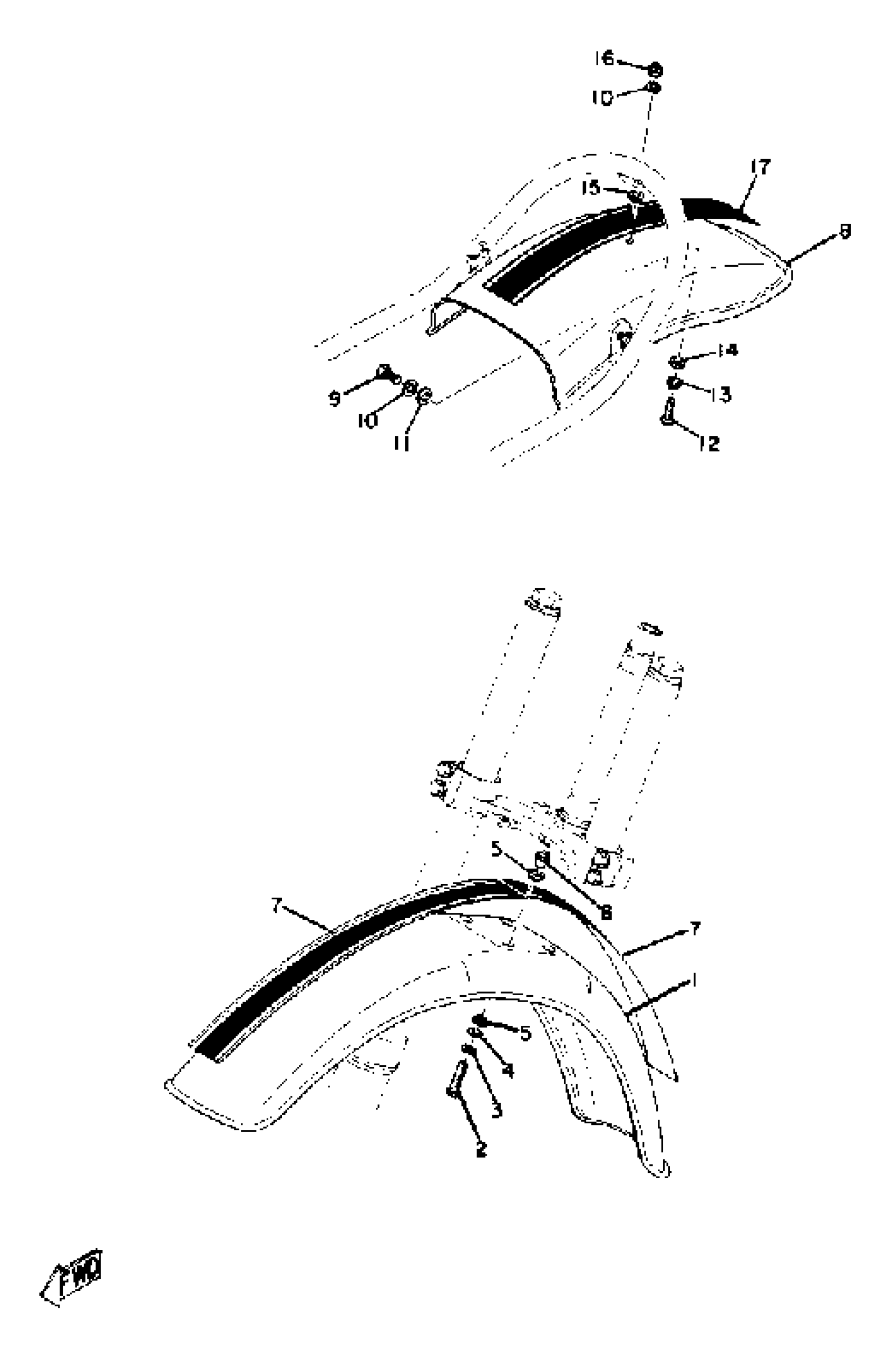

Yamaha SC500 (SC500) 1973 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(322-21511-00-Y1)

Unavailable

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT(JF7)

97080-06030-00

$5.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

MOLD, FENDER

(363-21519-00-01)

Unavailable

7

MOLD, FENDER

(402-21519-00-00)

Unavailable

8

UNAVAILABLE IN PRICE BOOK

322-26111-00-Y1

Unavailable

8

FENDER, REAR

363-21611-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLATE

90201-06380-00

$0.60

12

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

13

WASHER, SPECIAL SHAPE

90209-06087-00

Unavailable

14

DAMPER 2

(322-21639-00-00)

Unavailable

15

DAMPER, FENDER

322-21541-00-00

$7.99

16

NUT(650)

95380-06700-00

Unavailable

17

STRIPE, REAR FENDER

(363-21619-00-01)

Unavailable

17

STRIPE, REAR FENDER

(363-21619-10-00)

Unavailable
