1973 Yamaha SC500 (SC500) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1973 Yamaha SC500 (SC500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

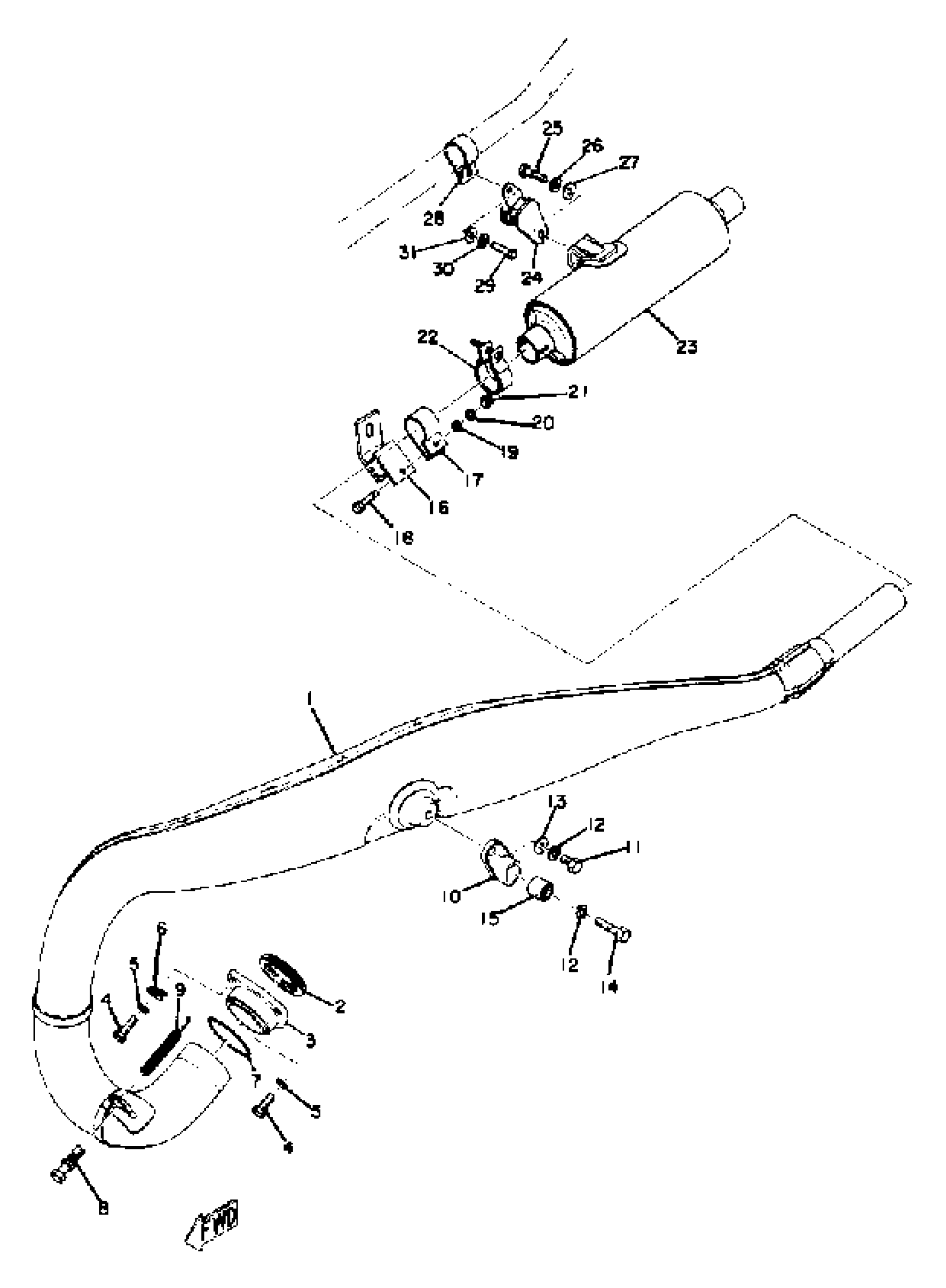

1973 Yamaha SC500 (SC500) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(363-14610-01-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(364-14610-01-00)

1
Out of stock

2

GASKET, EXST PIPE

(363-14613-00-00)

1
Out of stock

3

NUT, RING

(363-14612-00-00)

1
Out of stock

3

NUT, RING

(363-14612-01-00)

1
Out of stock

4

BOLT, HEXAGON

97017-06020-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1
Out of stock

6

PLATE

363-14685-00-00

1
Out of stock

7

GASKET

248-14623-10-00

1
Out of stock

8

BOLT (322-14684-10)

90109-08305-00

1
Out of stock

9

SPRING,TENSION

90507-20012-00

1
Out of stock

10

STAY, MUFFLER 1

363-14771-00-00

1
Out of stock

11

BOLT(JA9)

90101-08691-00

1
Out of stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

13

WASHER, PLAIN

92990-08200-00

1
Out of stock

14

BOLT

97013-08035-00

—
Out of stock

15

BUSHING, REAR CUSHION

164-22216-00-00

—
Out of stock

16

STAY, MUFFLER

(363-14791-00-00)

1
Out of stock

17

STAY, MUFFLER 2

(285-14781-11-00)

1
Out of stock

18

BOLT, HEXAGON

97017-06025-00

—
Out of stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

20

WASHER, SPRING

92995-06100-00

1
Out of stock

21

NUT, HEXAGON

95380-06600-00

1
Out of stock

22

BAND, SILENCER

322-14788-11-00

1
Out of stock

22

CLAMP, HOSE (363-14788-10)

90460-34018-00

1
Out of stock

23

SILENCER, EXHAUST

(363-14753-11-00)

1
Out of stock

23

SILENCER, EXHAUST

(364-14753-00-00)

1
Out of stock

24

STAY 5

363-14782-10-00

1
Out of stock

25

BOLT(JA9)

90101-08691-00

1
Out of stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

27

WASHER, PLAIN

92990-08200-00

1
Out of stock

28

STAY, MUFFLER

(322-14792-10-00)

1
Out of stock

29

BOLT, HEXAGON

97017-06020-00

1
Out of stock

30

WASHER, SPRING

92995-06100-00

1
Out of stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock
