1973 Yamaha SC500 (SC500) Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1973 Yamaha SC500 (SC500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

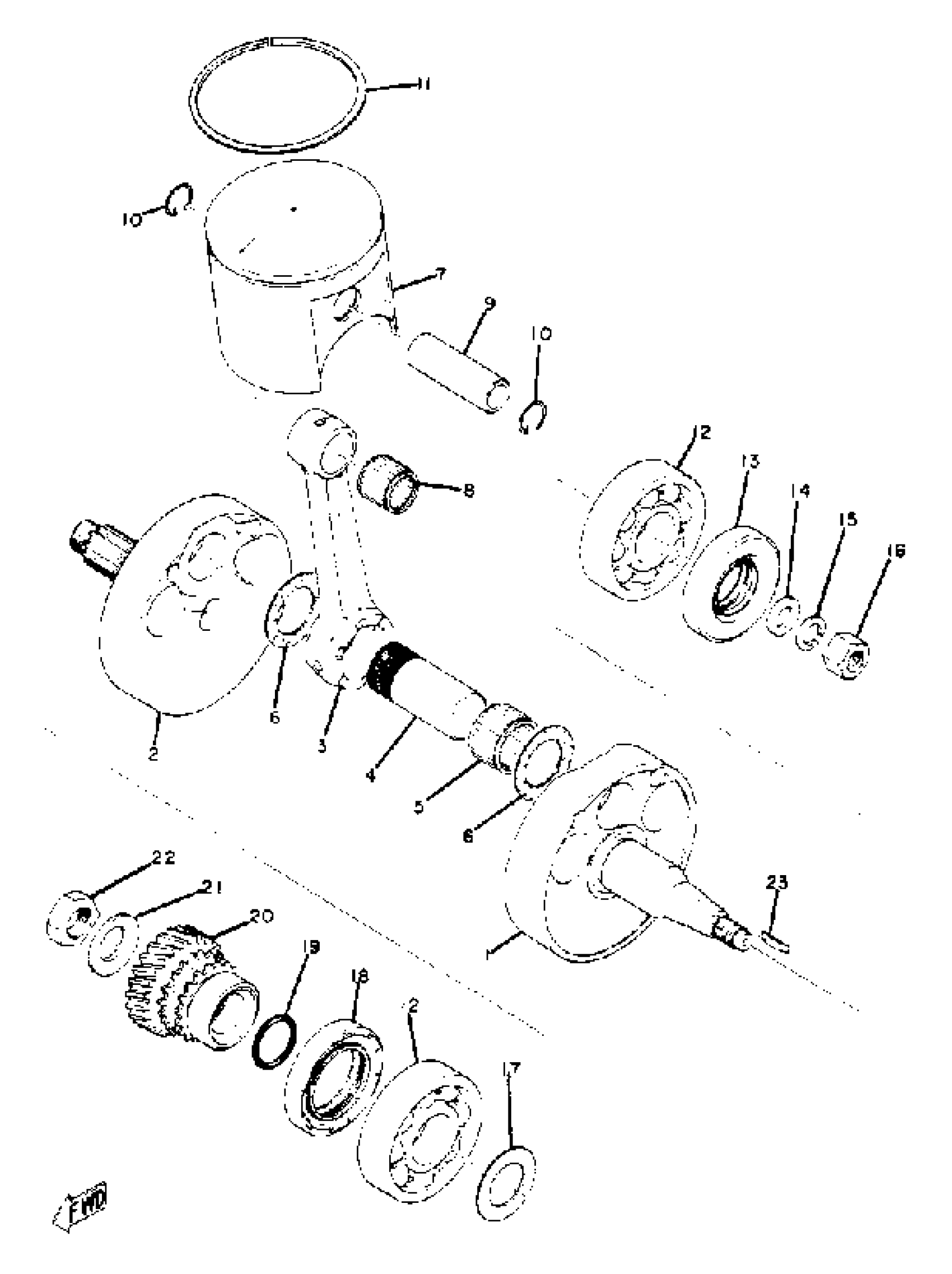

1973 Yamaha SC500 (SC500) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(363-11400-00-00)

1
Out of stock

1

. CRANK 1

(363-11412-01-00)

1
Out of stock

2

. CRANK 2

(363-11422-00-00)

1
Out of stock

3

. ROD, CONNECTING

(363-11651-01-00)

1
Out of stock

4

. PIN, CRANK 1

(363-11681-00-00)

1
Out of stock

5

. BEARING, CYLINDER#10

93310-42775-00

1
Out of stock

6

. WASHER, CRANK PIN

(363-11685-00-00)

1
Out of stock

7

PISTON STD 001

(363-11631-03-96)

1
Out of stock

7

PISTON 1 O/S 0.25

(363-11635-03-00)

1
Out of stock

7

PISTON 2 O/S 0.50

363-11636-03-00

1
Out of stock

7

PISTON 3 O/S 0.75

363-11637-03-00

1
Out of stock

7

PISTON 4 O/S 1.00

363-11638-03-00

1
Out of stock

8

BEARING, CYLINDER.#10

93310-22062-00

1
Out of stock

9

PIN, PISTON

363-11633-00-00

1
Out of stock

10

CLIP, PISTON PIN

363-11634-00-00

1
Out of stock

11

RING, PISTON STD

(363-11611-00-00)

1
Out of stock

11

RING, PISTON 1ST

363-11611-10-00

1
Out of stock

11

RING, PISTON 2ND

363-11611-20-00

1
Out of stock

11

RING, PISTON 3RD

363-11611-30-00

1
Out of stock

11

RING, PISTON 4TH

363-11611-40-00

1
Out of stock

12

BRG,R-B 6306 72MM 351G KY

93306-30615-00

—

$72.96

In stock

12

BEARING(3KW)

93306-30630-00

—

$64.14

In stock

13

OIL SEAL (38W)

93103-30072-00

1
Out of stock

14

WASHER (492)

90201-12535-00

—
Out of stock

15

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

16

NUT(55K)

90170-12347-00

—

$8.43

In stock

17

. SHIM, CRANK 4 (25-44-03)

156-11564-00-03

1
Out of stock

17

. SHIM, CRANK 4 (25-44-05)

156-11564-00-04

1
Out of stock

18

OIL SEAL

93103-38086-00

1
Out of stock

19

O-RING (437)

93210-24235-00

—

$5.72

In stock

20

GEAR, PRI DRIVE

(363-16111-01-00)

1
Out of stock

21

SPRING

214-16119-00-00

—
Out of stock

22

NUT HEXAGON 363115550000

90170-18086-00

—
Out of stock

23

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock
