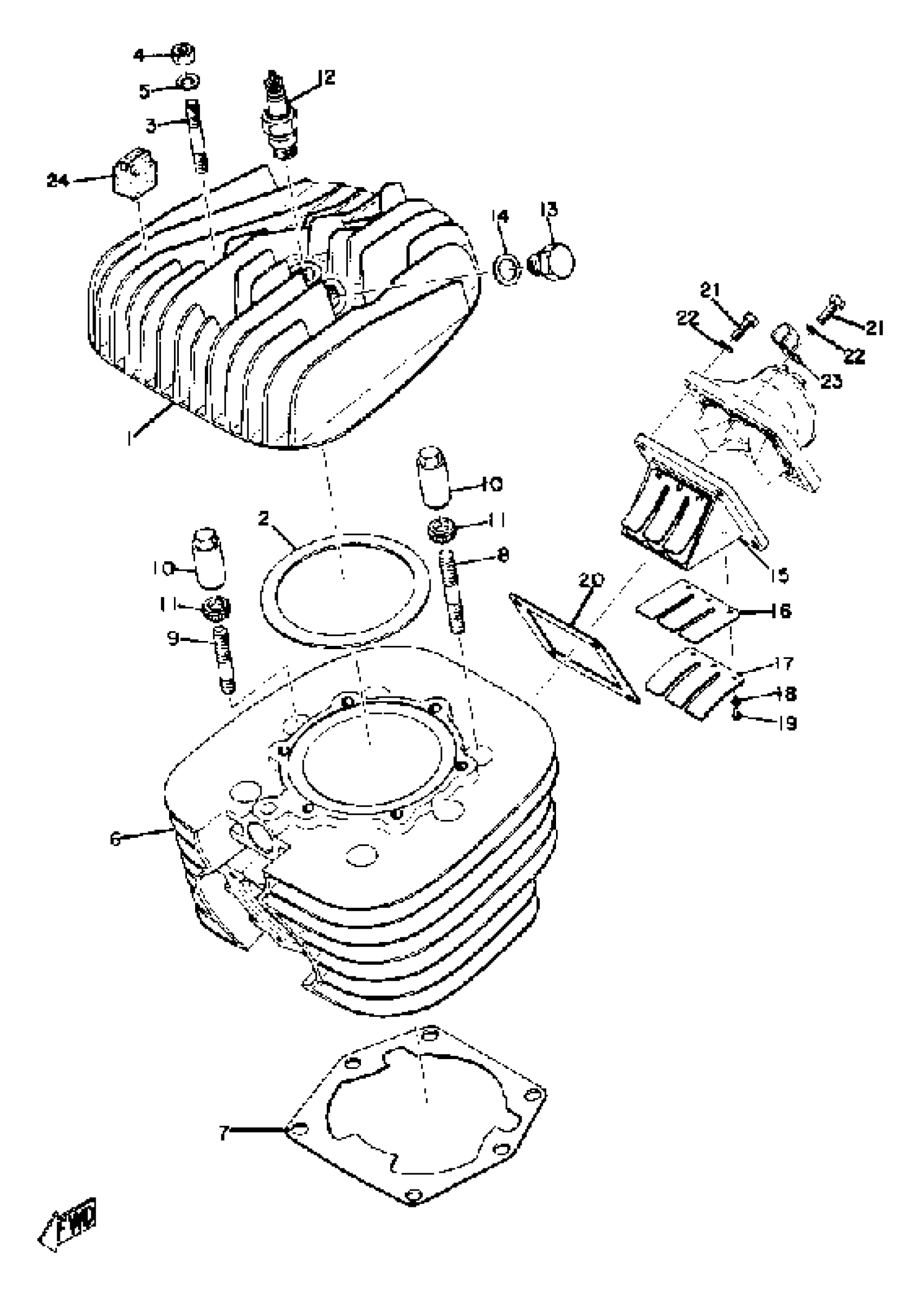

Yamaha SC500 (SC500) 1973 CYLINDER - REED VALVE Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(363-11111-00-00)

Unavailable

2

GASKET (363-11181-00)

90430-98066-00

Unavailable

3

BOLT STUD 363111790000

90116-08104-00

$17.99

4

NUT(6L2)

95333-08600-00

$2.49

5

WASHER, PLATE (397)

90201-08100-00

$8.49

6

CYLINDER 1

(363-11311-00-00)

Unavailable

6

CYLINDER 1

(363-11311-01-00)

Unavailable

7

GASKET,CYLINDER

363-11351-09-00

Unavailable

8

BOLT (363-11361-00)

90116-10087-00

$17.99

9

BOLT, STUD

90116-10088-00

Unavailable

10

NUT

90179-10021-00

$25.99

11

WASHER, PLATE (363-11175-00)

90201-11155-00

Unavailable

12

NGK BR8EV 4PK

NGK-BR8EV-00-00

Unavailable

13

PLUG, BLIND

90340-14022-00

Unavailable

14

GASKET

214-11198-01-00

$3.17

15

REED VALVE ASSEMBLY

(363-13610-00-00)

Unavailable

16

. REED, VALVE

363-13613-00-00

Unavailable

17

. STOPPER, REED VALVE

363-13616-00-00

Unavailable

18

WASHER, SPRING

92990-03100-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

GASKET,VALVE SEAT

363-13621-01-00

Unavailable

21

BOLT(JF7)

97080-06030-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

CLAMP 363154850100

90462-05005-00

Unavailable

24

ABSORBER

363-11161-00-00

Unavailable
