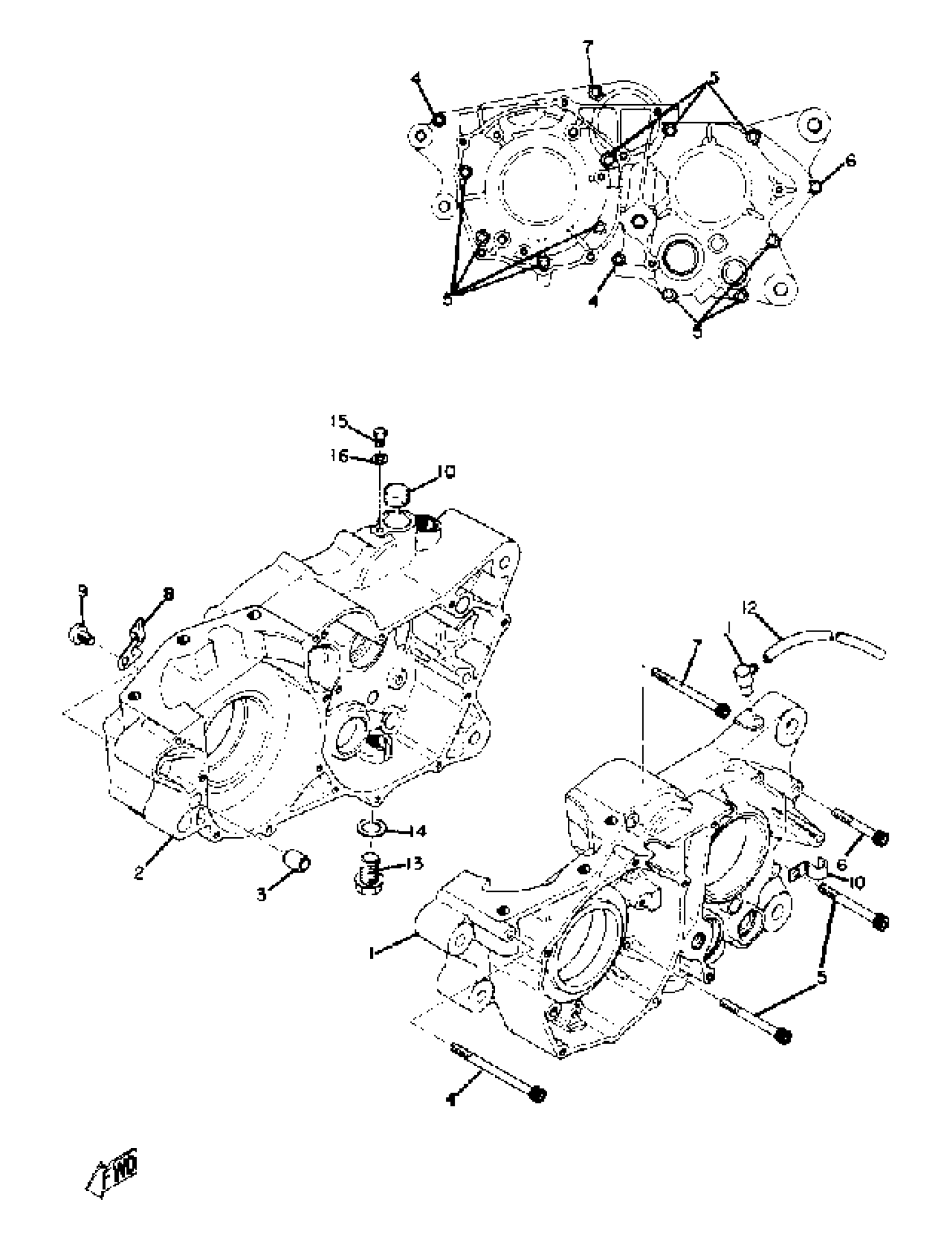

Yamaha SC500 (SC500) 1973 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(363-15111-00-00)

Unavailable

1

CRANKCASE 1

(363-15111-02-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

BOLT,SOCKET

91317-06060-00

$3.76

6

BOLT,SOCKET

91317-06045-00

$4.99

7

BOLT, SOCKET

91317-06070-00

$4.99

8

HOLDER

(363-15118-00-00)

Unavailable

9

SCREW,PAN HEAD

98580-08012-00

Unavailable

10

PLUG 363174810000

90338-20023-00

$5.60

11

BREATHER

583-15371-00-00

$6.99

12

HOSE(7EG)

90446-07241-00

$10.49

13

BOLT

90109-14385-00

$16.99

14

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

15

BOLT(3JP)

97017-06010-00

$3.76

16

WASHER, SPRING

92995-06100-00

Unavailable
