CARBURETOR

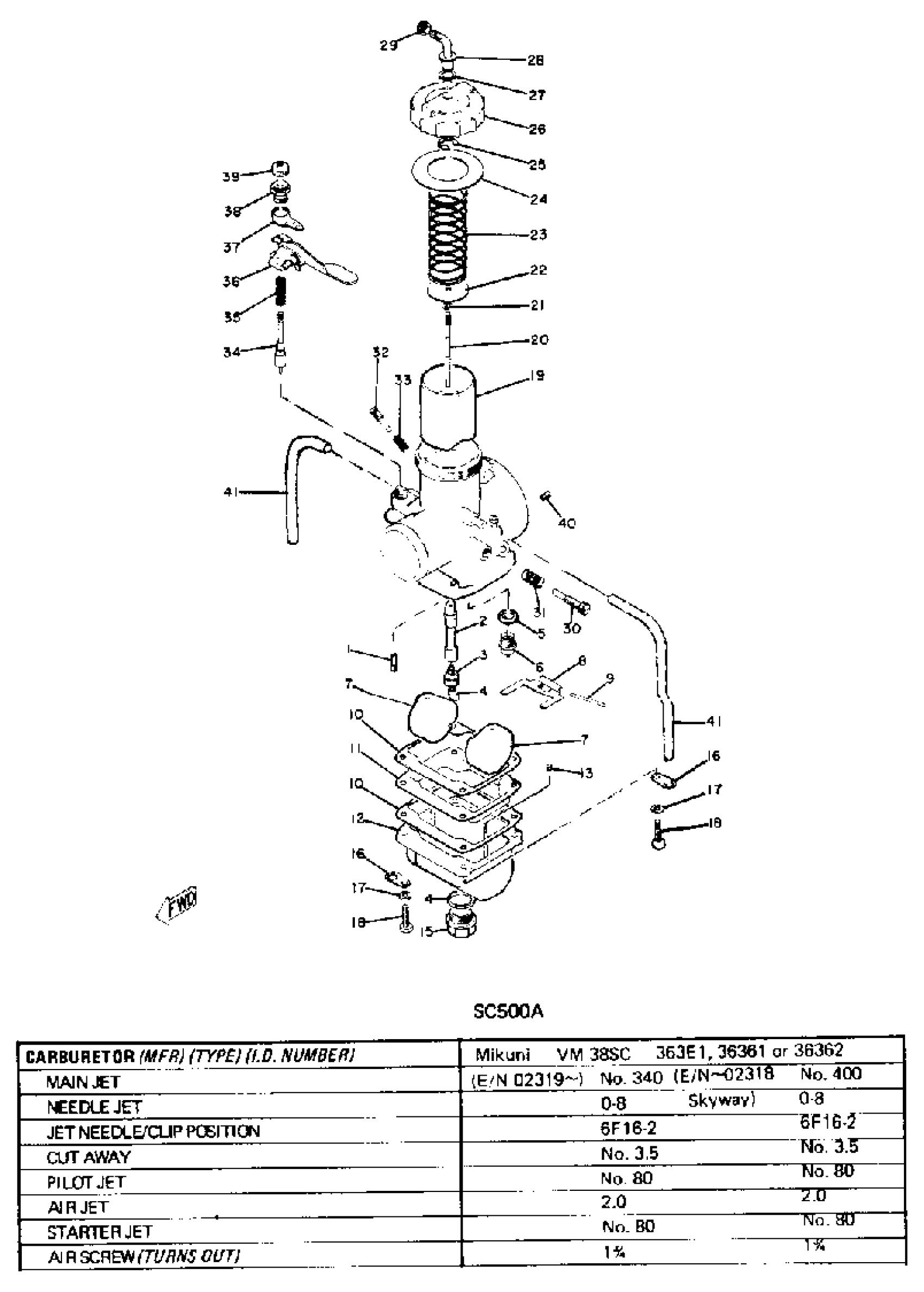

1973 Yamaha SC500 (SC500) Carburetor Diagram
Find the part on the Carburetor diagram for your 1973 Yamaha SC500 (SC500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1
(363-14101-63-00)
2
NOZZLE, MAIN
(363-14141-38-00)
3
. SETTER, NEEDLE JET
363-14145-00-00
4
JET,MAIN #340
137-14143-68-00
7
. FLOAT
214-14185-00-00
8
. ARM, FLOAT
363-14187-00-00
11
PLATE
(363-14146-00-00)
12
BODY, FLOAT CHMBR 1
(363-14181-00-33)
14
. WASHER, PLUG SCREW
239-14117-00-00
15
. PLUG, SCREW
363-14115-00-00
16
. PLATE
313-14146-00-00
17
YBS67-5 WASHER, SPRING
92990-05100-00
19
VALVE, THROTTLE 1
(363-14112-35-00)
20
. NEEDLE
239-14116-16-00
22
SEAT, SPRING
(363-14136-00-00)
23
. SPRING, THROTTLE VALVE
363-14131-00-00
24
. GASKET
363-14126-00-00
26
TOP, MIXING CHAMBER
(363-14158-00-33)
28
. GUIDE, CABLE
363-14155-00-00
34
. PLUNGER, STARTER
174-14171-00-00
35
. SPRING, PLUNGER
256-14135-00-00
36
LEVER, STARTER 1
(310-14175-00-00)
37
. PLATE, STARTER LEVER
275-14178-00-00
38
. CAP, PLUNGER
802-14174-00-00
39
. COVER, PLUNGER CAP
802-14173-00-00
40
PILOT JET, AIR #20
(237-14172-20-00)
