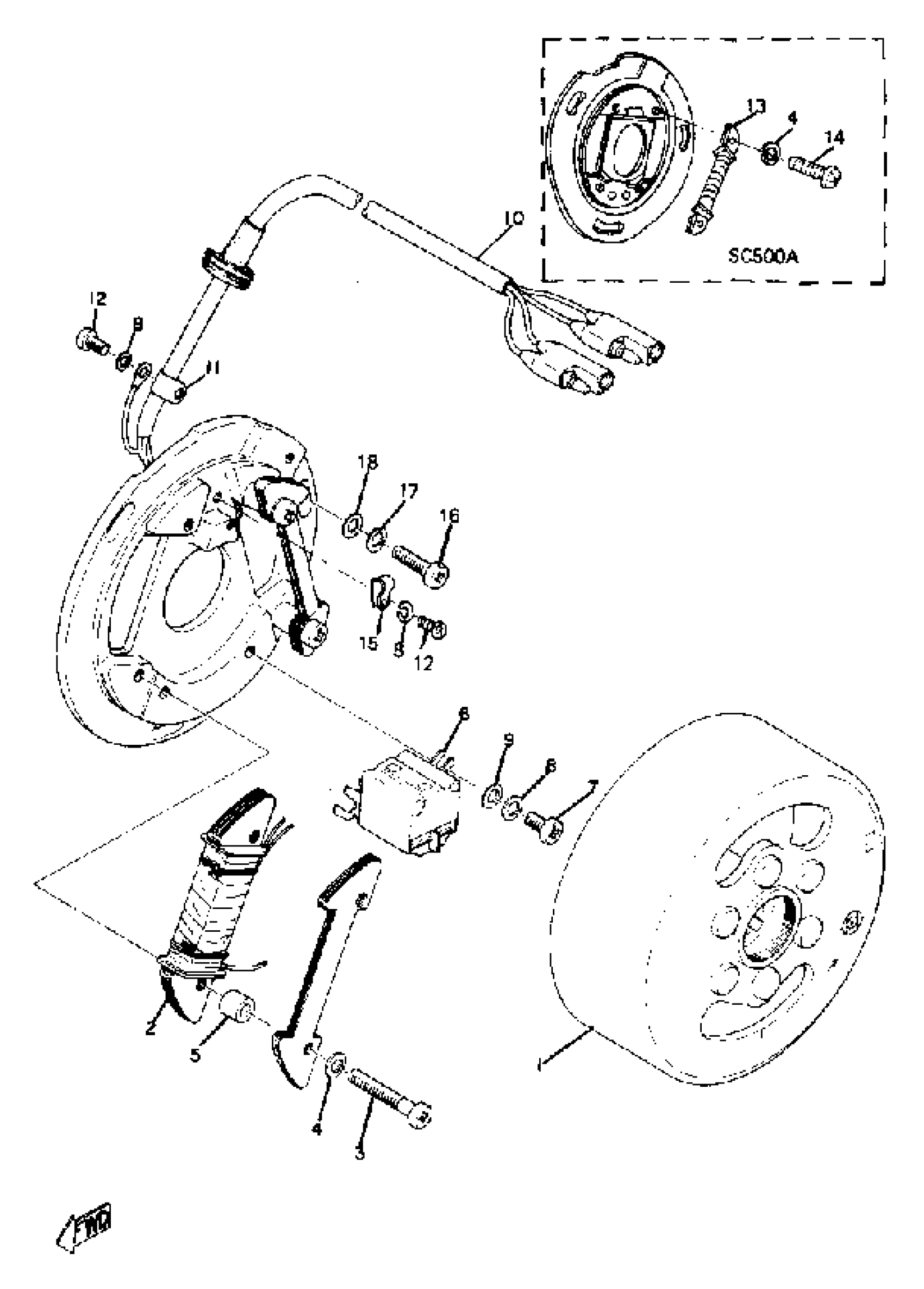

Yamaha SC500 (SC500) 1973 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(363-85500-12-00)

Unavailable

1

ROTOR ASSEMBLY

(363-85550-10-00)

Unavailable

1

ROTOR ASSEMBLY

(363-85550-11-00)

Unavailable

2

COIL, CHARGE

(363-85541-10-00)

Unavailable

3

SCREW 1

(647-81323-10-00)

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

. SPACER

647-81318-10-00

Unavailable

6

COIL PULSER

(363-85543-10-00)

Unavailable

6

COIL PULSER

(363-85543-11-00)

Unavailable

7

SCREW, PAN HEAD

110-81346-21-00

$5.49

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

10

LEAD WIRE ASSEMBLY

(363-85515-10-00)

Unavailable

10

LEAD WIRE ASSEMBLY

(363-85515-11-00)

Unavailable

11

. CLAMP

109-81328-11-00

Unavailable

12

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

13

. PULSER 2

363-85544-10-00

Unavailable

14

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

15

CLAMP, LEAD

(363-85528-10-00)

Unavailable

16

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
