Description

Price

11047

BRACKET,SEAT SIDE LOCK

11047-3732

Unavailable

11047A

BRACKET,DECK SIDE HINGE,WHITE

11047-3733-8C

Unavailable

11047B

BRACKET,SEAT SIDE HINGE,WHITE

11047-3734-8C

Unavailable

11047C

BRACKET,DECK SIDE HINGE

11047-3742

Unavailable

11047D

BRACKET,DECK SIDE LOCK

11047-3757

Unavailable

13168

LEVER,SEAT LOCK

13168-3718

Unavailable

13183

PLATE,DECK SIDE

13183-3778

Unavailable

13183A

PLATE,HINGE BASE

13183-3780

Unavailable

53001B

SEAT-ASSY,T.GREEN

53001-3717-LH

Unavailable

92036

RING,SNAP

92036-518

$1.56

92043

PIN,6X27.5

92043-3732

$9.97

92043A

PIN,6X10X38

92043-3733

Unavailable

92144

SPRING

92144-3731

Unavailable

92150

BOLT,SOCKET,6X20

92150-3748

$3.92

92160

DAMPER

92160-3766

$2.91

156

BOLT-WP,6X20

156R0620

$3.65

224

SCREW-PAN-WP-CROS,5X12

224R0512

$4.18

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

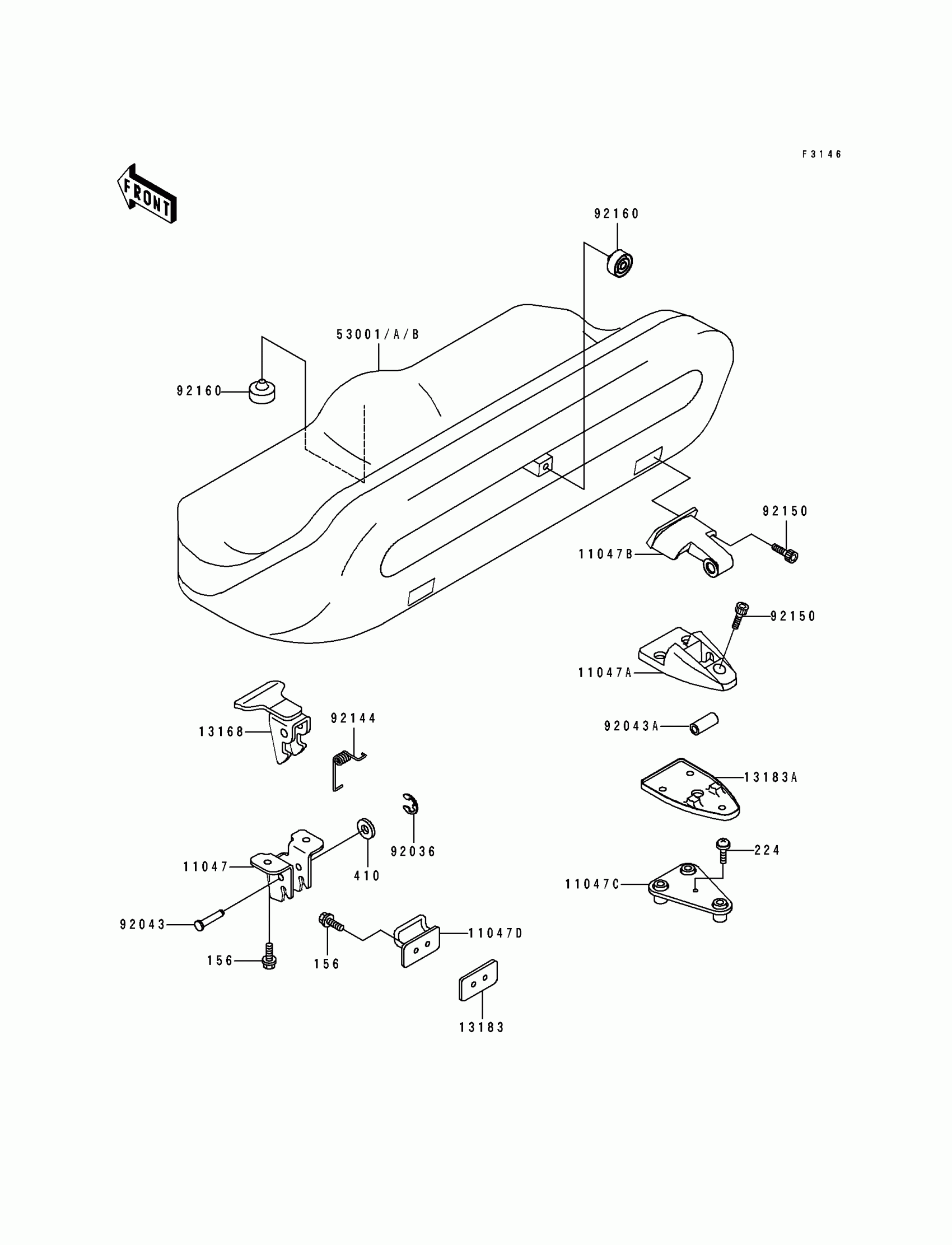

Kawasaki SC Seat Diagram

BRACKET,SEAT SIDE LOCK

BRACKET,DECK SIDE HINGE,WHITE

BRACKET,SEAT SIDE HINGE,WHITE

BRACKET,DECK SIDE HINGE

BRACKET,DECK SIDE LOCK

LEVER,SEAT LOCK

PLATE,DECK SIDE

PLATE,HINGE BASE

SEAT-ASSY,T.GREEN

RING,SNAP

PIN,6X27.5

PIN,6X10X38

SPRING

BOLT,SOCKET,6X20

DAMPER

BOLT-WP,6X20

SCREW-PAN-WP-CROS,5X12

WASHER-PLAIN-SMALL,6MM
