Description

Price

11012

CAP,SIDE BUMPER

11012-3748

Unavailable

39027A

BUMPER-FRONT

39027-3722

Unavailable

39156A

PAD,SIDE,GRAY

39156-3746-RA

Unavailable

39156C

PAD,TRAY AREA,LH,GRAY

39156-3747-RA

Unavailable

39156E

PAD,TRAY AREA,RH,GRAY

39156-3748-RA

Unavailable

53004A

MAT,TOE BOARD,LH,GRAY

53004-3738-RA

Unavailable

53004C

MAT,TOE BOARD,RH,GRAY

53004-3739-RA

Unavailable

53044

TRIM,SIDE BUMPER

53044-3711

Unavailable

53044A

TRIM,REAR BUMPER

53044-3712

Unavailable

53044C

TRIM,FRONT BUMPER

53044-3723

Unavailable

59201

BUMPER,CORNER,RR

59201-3720

Unavailable

59201A

BUMPER,SIDE,RH

59201-3728

Unavailable

59201B

BUMPER,SIDE,LH

59201-3729

Unavailable

59201C

BUMPER,RR

59201-3730

Unavailable

92015

NUT,CAP,6MM

92015-3755

$4.99

92015B

NUT,CAP,5MM

92015-3802

$4.99

92015C

NUT,26MM

92015-3840

$9.98

92028

BUSHING

92028-3734

$9.98

92039

RIVET

92039-3747

$1.70

92200

WASHER,5.5X12X3

92200-3728

Unavailable

221

SCREW-CSK-CROS,6X25

221R0625

$4.45

411A

WASHER-PLAIN,6MM

411S0600

$2.06

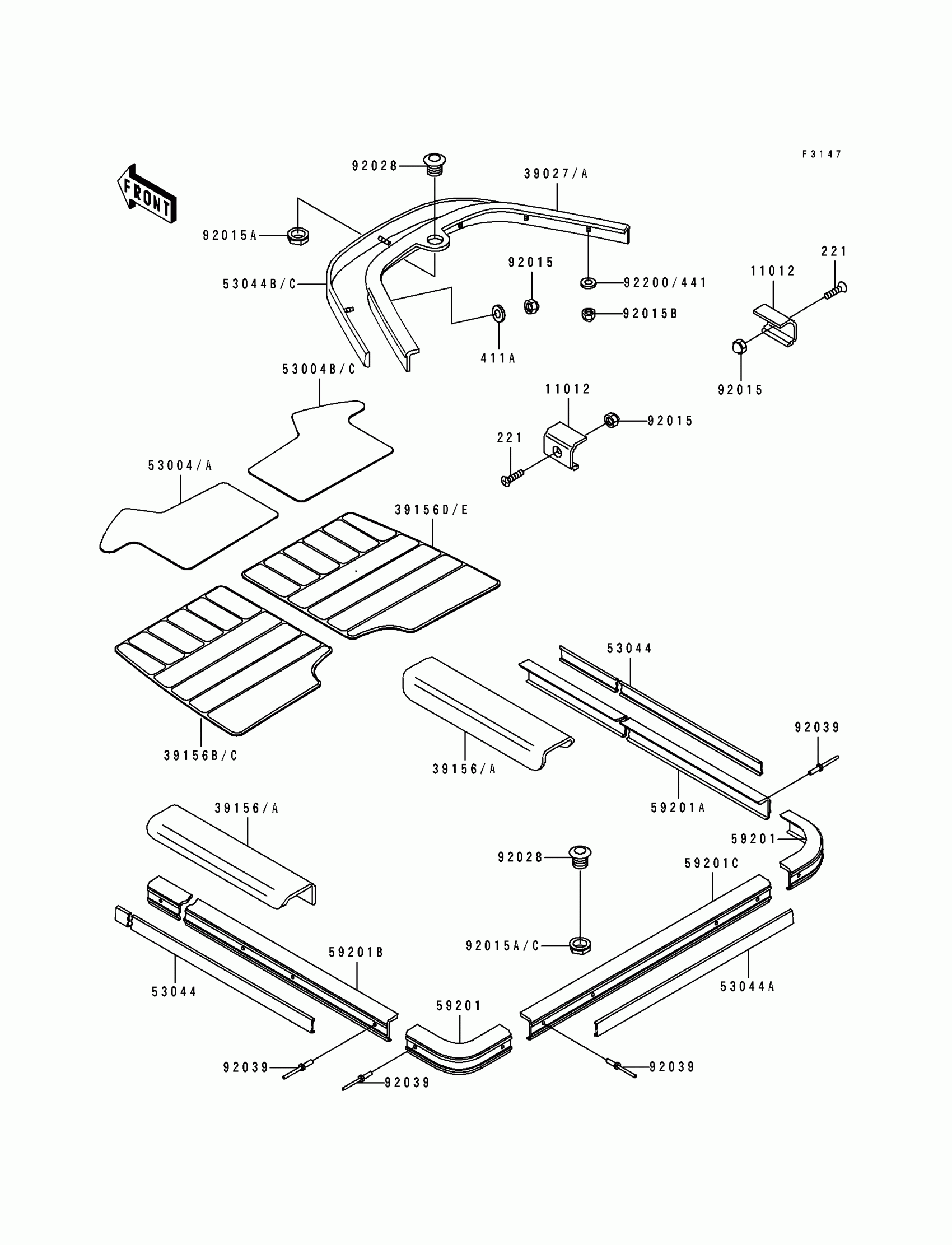

Kawasaki SC Pads Diagram

CAP,SIDE BUMPER

BUMPER-FRONT

PAD,SIDE,GRAY

PAD,TRAY AREA,LH,GRAY

PAD,TRAY AREA,RH,GRAY

MAT,TOE BOARD,LH,GRAY

MAT,TOE BOARD,RH,GRAY

TRIM,SIDE BUMPER

TRIM,REAR BUMPER

TRIM,FRONT BUMPER

BUMPER,CORNER,RR

BUMPER,SIDE,RH

BUMPER,SIDE,LH

BUMPER,RR

NUT,CAP,6MM

NUT,CAP,5MM

NUT,26MM

BUSHING

RIVET

WASHER,5.5X12X3

SCREW-CSK-CROS,6X25

WASHER-PLAIN,6MM
