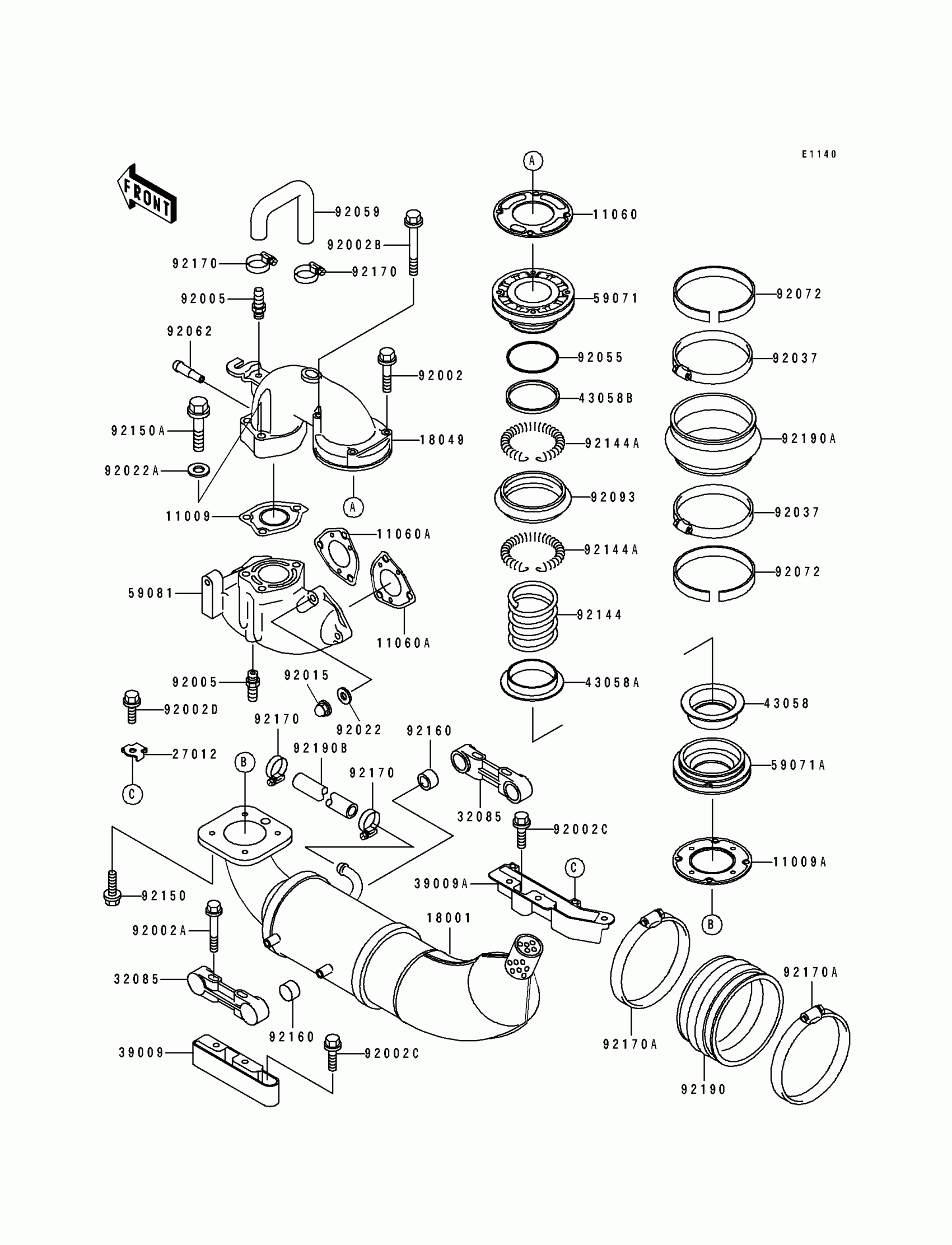

Kawasaki SC Muffler(s) Diagram
#
11009
GASKET,EXHAUST PIPE
11009-3752
$26.93
11009A
GASKET,MUFFLER
11009-3756
$34.27
11060
GASKET,EXHAUST PIPE
11060-3718
$40.73
11060A
GASKET,EXHAUST PIPE
11060-3721
Unavailable
18001
MUFFLER
18001-3734
Unavailable
18049
PIPE-EXHAUST
18049-3727
Unavailable
27012
HOOK
27012-501
Unavailable
32085
STOPPER
32085-3713
$73.03
39009
BLOCK-MOUNT,LH
39009-3705
Unavailable
39009A
BLOCK-MOUNT,RH
39009-3706
Unavailable
43058
RING
43058-3702
Unavailable
43058A
RING
43058-3703
Unavailable
43058B
RING
43058-3704
Unavailable
59071
JOINT
59071-3722
Unavailable
59071A
JOINT
59071-3731
Unavailable
59081
MANIFOLD-EXHAUST
59081-3706
Unavailable
92002
BOLT,6X35
92002-3715
$6.61
92002A
BOLT,6X45
92002-3717
$6.05
92002B
BOLT,6X65
92002-3720
Unavailable
92002C
BOLT,6X20
92002-3755
$4.69
92002D
BOLT,6X12
92002-3763
$4.69
92005
FITTING,HOSE
92005-3712
$10.88
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92037
CLAMP
92037-3706
$10.67
92055
RING-O
92055-3717
$18.32
92059
TUBE,HEAD-EXHAUST
92059-3872
$11.83
92062
NOZZLE
92062-3705
$8.44
92072
BAND,ID=111
92072-3740
$14.29
92093
SEAL
92093-3732
$24.68
92144
SPRING
92144-3718
Unavailable
92144A
SPRING
92144-3726
$11.99
92150
BOLT,6X18
92150-3729
$4.69
92150A
BOLT,10X50
92150-3819
$13.08
92160
DAMPER
92160-3740
Unavailable
92170
CLAMP
92170-3718
$13.67
92170A
CLAMP
92170-3721
$9.12
92190
TUBE
92190-3709
Unavailable
92190A
TUBE,JOINT
92190-3712
$49.75
92190B
TUBE,13X19X140
92190-3714
$4.63
