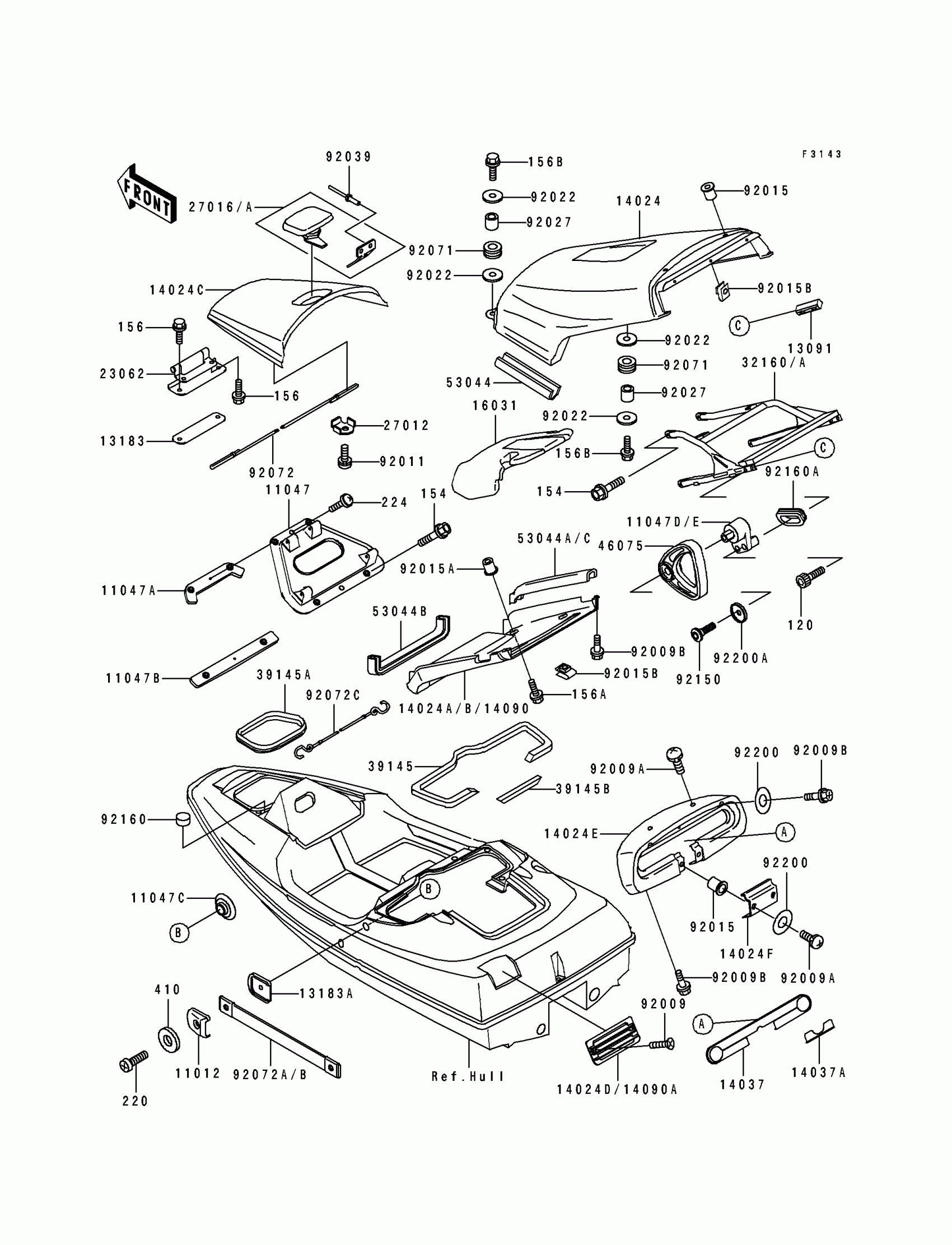

Kawasaki SC Hull Fittings Diagram
#
11012
CAP,SIDE BAND,J.WHITE
11012-3756-8C
Unavailable
11047
BRACKET,HANDLE FRAME
11047-3735
Unavailable
11047A
BRACKET,HANDLE FRAME,UNDER,FR
11047-3736
Unavailable
11047B
BRACKET,HANDLE FRAME,UNDER,RR
11047-3737
Unavailable
11047C
BRACKET,SIDE BAND
11047-3751
Unavailable
11047D
BRACKET,PASSENGER GRIP,LH
11047-3785
Unavailable
11047E
BRACKET,PASSENGER GRIP,RH
11047-3786
Unavailable
13091
HOLDER
13091-3772
Unavailable
13183
PLATE,HINGE BRACKET
13183-3781
Unavailable
13183A
PLATE,SIDE BAND
13183-3796
$6.37
14024
COVER,HANDLE TOWER,UPP,J.WHITE
14024-3790-8C
Unavailable
14024C
COVER,HATCH,J.WHITE
14024-3792-8C
Unavailable
14024E
COVER,HANDLE TOWER,TOP,GRAY
14024-3802-JH
Unavailable
14024F
COVER,HANDLE TOWER,TOP,GRAY
14024-3803-JH
Unavailable
14037
SCREEN,HANDLE TOWER,TOP
14037-3703
Unavailable
14037A
SCREEN,HANDLE TOWER,TOP
14037-3704
Unavailable
14090
COVER,HANDLE TOWER,LWR,GRAY
14090-3720-JH
Unavailable
14090A
COVER,REAR DUCT
14090-3726
Unavailable
16031
FLOAT,HANDLE,UPP
16031-3806
$105.68
23062
BRACKET-COMP,HATCH COVER
23062-3703
$61.36
27012
HOOK
27012-501
Unavailable
27016A
LOCK-ASSY,HATCH
27016-3719
$96.44
32160A
FRAME-COMP,HANDLE
32160-3702
Unavailable
39145A
TRIM-SEAL,L=1058
39145-3730
Unavailable
39145B
TRIM-SEAL,SEAT,L=1600
39145-3738
Unavailable
46075
GRIP,PASSENGER
46075-3727
Unavailable
53044
TRIM,L=250
53044-3709
$2.40
53044B
TRIM,L=550
53044-3716
$3.90
53044C
TRIM,L=390
53044-3726
$2.81
92009
SCREW,TAPPING,4X14
92009-3755
$2.55
92009A
SCREW,6X20
92009-3781
$6.57
92009B
SCREW,5X16
92009-3789
$2.97
92011
SCREW,TAPPING
92011-561
Unavailable
92015
NUT
92015-1700
$8.58
92015A
NUT,POP,6MM
92015-3762
Unavailable
92015B
NUT,5MM
92015-3799
$11.34
92022
WASHER,6.2X20X2
92022-3714
$4.18
92027
COLLAR,6.2X10X10
92027-3705
$8.86
92039
RIVET,4MM
92039-3703
$4.69
92071
GROMMET
92071-3716
$4.96
92072
BAND,STORAGE COVER
92072-3756
Unavailable
92072A
BAND,SIDE,GREEN
92072-3758-LH
Unavailable
92072C
BAND,SEAT STOPPER
92072-3762
$27.15
92150
BOLT,SOCKET,8X30
92150-3805
Unavailable
92160
DAMPER
92160-3775
Unavailable
92160A
DAMPER
92160-3796
Unavailable
92200
WASHER,NYLON,5.2X12X1
92200-1011
$3.09
92200A
WASHER
92200-3726
$7.62
120
BOLT-SOCKET,6X40
120R0640
$5.00
154
BOLT-WP-SMALL,8X30
154R0830
$6.34
156
BOLT-WP,6X18
156R0618
$3.73
156A
BOLT-WP,6X20
156R0620
$3.65
156B
BOLT-WP,6X25
156R0625
$4.76
220
SCREW,PAN HEAD,6X25
220R0625
$3.53
224
SCREW-PAN-WP-CROS,5X14
224R0514
$2.97
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
