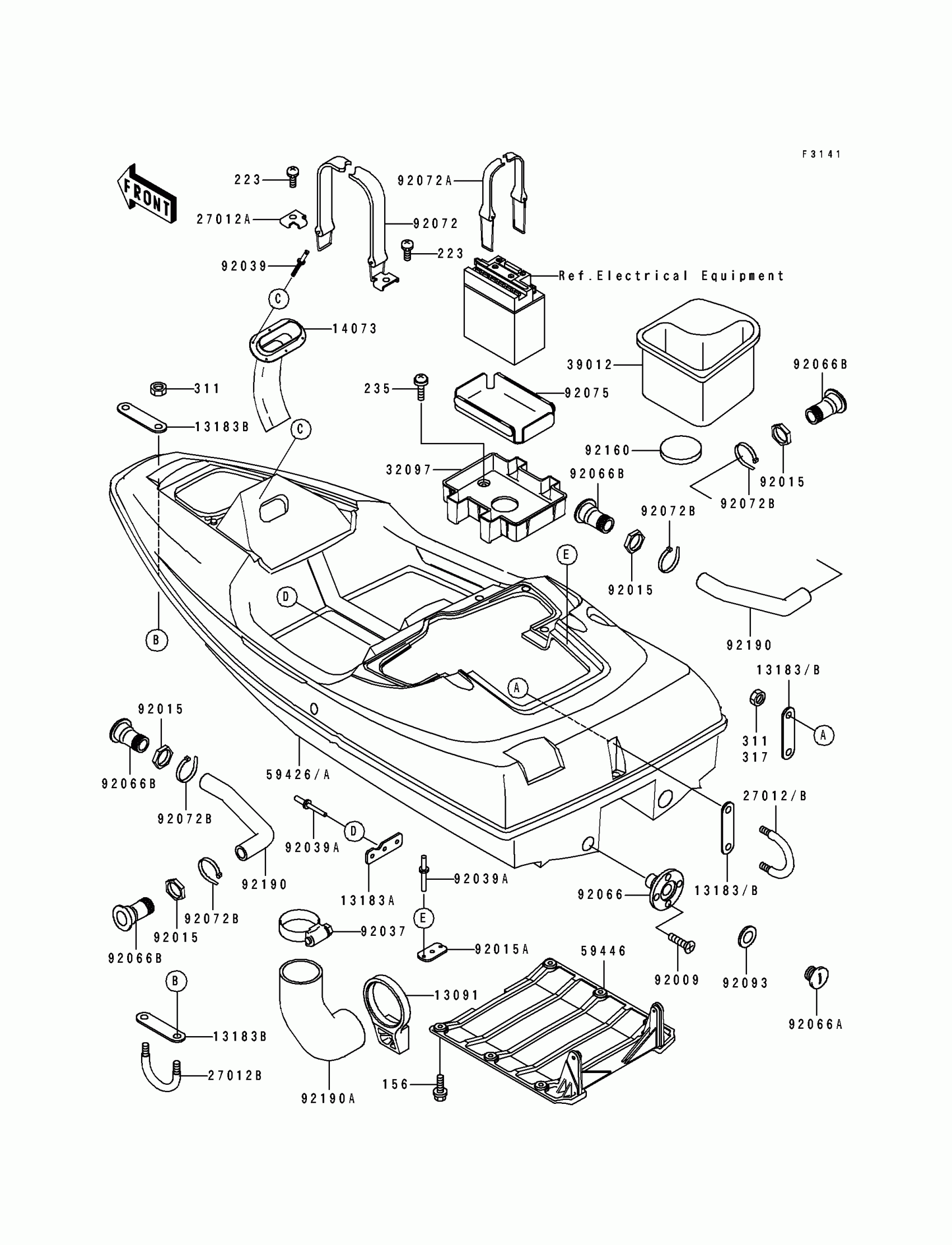

Kawasaki SC Hull Diagram
#
Description
Price
13091
HOLDER
13091-3765
Unavailable
13183A
PLATE
13183-3777
Unavailable
13183B
PLATE
13183-3809
$7.34
14073
DUCT
14073-3732
$50.63
27012A
HOOK
27012-3751
$6.01
27012B
HOOK
27012-3761
$36.68
32097
CASE-BATTERY
32097-3703
$19.99
39012
CASE-STORAGE
39012-3709
Unavailable
59426
HULL-COMP,J.WHITE
59426-3810-8C
Unavailable
59446
COVER-JET PUMP
59446-3717
Unavailable
92009
SCREW,TAPPING,4X14
92009-3755
$2.55
92015
NUT
92015-3772
Unavailable
92015A
NUT
92015-3815
Unavailable
92037
CLAMP
92037-541
$10.24
92039
RIVET
92039-3701
$1.67
92039A
RIVET,4MM
92039-3703
$4.69
92066
PLUG,RR,DRAIN
92066-3724
Unavailable
92066A
PLUG,RR,DRAIN
92066-3725
$19.96
92066B
PLUG,DRAIN
92066-3736
Unavailable
92072
BAND,FIRE EXTINGUISHER
92072-3752
$32.89
92072A
BAND,BATTERY
92072-3753
$39.63
92072B
BAND,L=201
92072-3778
$1.84
92075
DAMPER,BATTERY
92075-3714
$16.74
92093
SEAL
92093-3720
$3.62
92160
DAMPER
92160-1267
Unavailable
92190
TUBE,DRAIN
92190-3792
$8.36
92190A
TUBE,DUCT
92190-3839
$14.66
156
BOLT-WP,6X20
156R0620
$3.65
223
SCREW-PAN-WS-CROS,6X14
223R0614
$3.34
235
SCREW-PAN-WP-CROS,6X16
235R0616
$4.04
311
NUT-HEX,6MM
311R0600
$0.70
