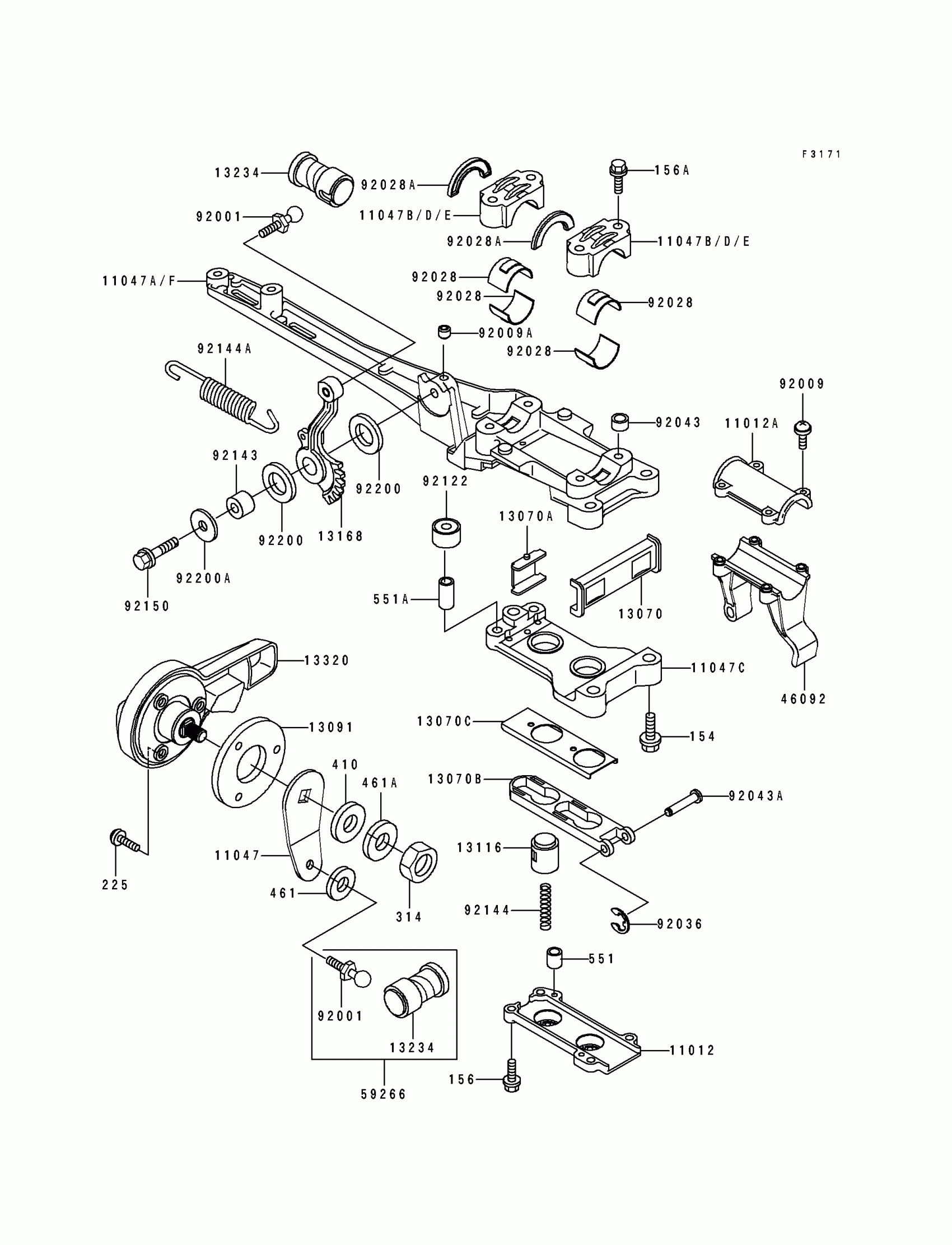

Kawasaki SC Handle Pole Diagram
#
11012
CAP,BRACKET,LWR
11012-3751
Unavailable
11012A
CAP,LEVER GRIP
11012-3755
Unavailable
11047
BRACKET,CABLE JOINT
11047-3723
Unavailable
11047C
BRACKET,STEERING,LWR
11047-3729
Unavailable
11047D
BRACKET,STEERING SHAFT
11047-3771
Unavailable
11047F
BRACKET,STEERING BASE
11047-3782
Unavailable
13070
GUIDE,SLIDE
13070-3703
Unavailable
13070A
GUIDE,SLIDE
13070-3704
Unavailable
13070B
GUIDE,SLIDE STOPPER
13070-3706
Unavailable
13070C
GUIDE,SLIDE STOPPER
13070-3707
Unavailable
13091
HOLDER,REVERSE LEVER
13091-3756
Unavailable
13116
ROD-PUSH
13116-3703
Unavailable
13168
LEVER,STEERING
13168-3716
Unavailable
13234
SHAFT-COMP,JOINT
13234-3708
Unavailable
13320
LEVER-ASSY,REVERSE
13320-3704
Unavailable
46092
LEVER-GRIP,HANDLE STOPPER
46092-3702
Unavailable
59266
JOINT-BALL
59266-3707
$66.16
92001
BOLT,BALL,6MM
92001-3703
Unavailable
92009
SCREW,TAPPING,4X14
92009-3762
$2.12
92009A
SCREW
92009-3780
$2.67
92028
BUSHING,BUA 12.5 13.5 19
92028-3746
Unavailable
92028A
BUSHING,BUA 26.2 41.8 3.5
92028-3747
Unavailable
92036
RING,SNAP
92036-518
$1.56
92043
PIN
92043-3715
$7.34
92043A
PIN,6X27.5
92043-3732
$9.97
92122
ROLLER
92122-3701
Unavailable
92143
COLLAR,8.2X14X11.2
92143-3724
$13.56
92144
SPRING
92144-3729
$3.99
92144A
SPRING
92144-3734
$15.18
92150
BOLT,FLANGED,8X30
92150-3803
$7.34
92200
WASHER,14.1X25X2
92200-3710
Unavailable
92200A
WASHER,8.5X25X1.5
92200-3717
$4.92
154
BOLT-WP-SMALL,8X35
154R0835
$5.11
156
BOLT-WP,5X20
156R0520
$2.65
156A
BOLT-WP,6X35
156R0635
$4.69
225
SCREW-PAN-WSP-CROS,6X16
225R0616
$5.00
314
NUT-HEX-FINE,10MM
314R1000
$2.02
410
W-PLAIN-S,10MM
410S1000
$3.12
461
WASHER-SPRING,6MM
461S0600
$1.07
461A
WASHER-SPRING,10MM
461S1000
$1.03
551
PIN-DOWEL
551R0408
$5.38
551A
PIN-DOWEL,6X25
551R0625
$6.58
