Description

Price

11009

GASKET,TANK CAP

11009-3020

$13.51

11009A

GASKET

11009-3790

Unavailable

13091

HOLDER

13091-3712

$4.65

13091A

HOLDER,TUBE

13091-3758

$11.19

14090

COVER,FUEL TAP

14090-3727

$4.92

27012

HOOK

27012-3751

$6.01

49057

VALVE-RELIEF

49057-3001

$64.85

51004

TANK-FUEL

51004-3715

Unavailable

51023

TAP-ASSY,PIPE COMP,FUEL TANK

51023-3717

Unavailable

51023A

TAP-ASSY,FUEL

51023-3718

$137.47

51049A

CAP-TANK,FUEL

51049-3719

$28.71

59231

FILLER,FUEL TANK

59231-3001

$17.77

92009

SCREW,4X8

92009-3729

$6.61

92011

SCREW

92011-562

$1.65

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,TUBE

92037-1941

$6.22

92037B

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92072

BAND,L=544

92072-3709

Unavailable

92072A

BAND,L=201

92072-3778

$1.84

92077A

KNOB,FUEL TAP

92077-3719

Unavailable

92190

TUBE,TANK-BREATHER

92190-3799

Unavailable

92190A

TUBE,45X53X145

92190-3838

Unavailable

92190B

TUBE,5.8X10.8X2900

92190-3841

$12.34

92190C

TUBE,5.8X10.8X310

92190-3876

Unavailable

92190D

TUBE,"ON",5.8X10.8X1340

92190-3877

Unavailable

92190E

TUBE,"RES",5.8X10.8X1340

92190-3878

Unavailable

92190F

TUBE,"RETURN",7X12X1340

92190-3879

Unavailable

221

SCREW-CSK-CROS,5X16

221R0516

$2.78

223

SCREW-PAN-WS-CROS,6X14

223R0614

$3.34

225

SCREW-PAN-WSP-CROS,5X16

225R0516

$4.99

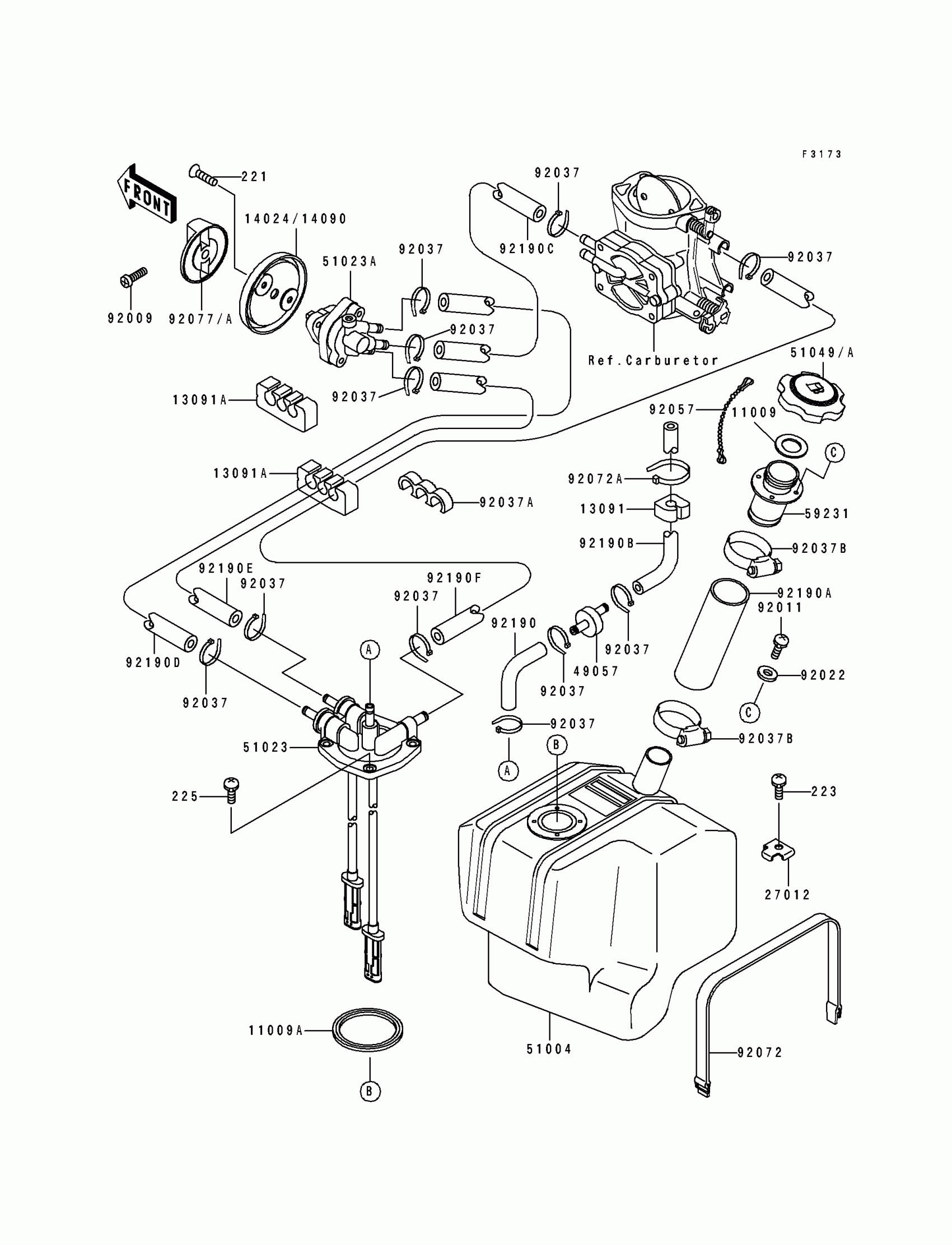

Kawasaki SC Fuel Tank Diagram

GASKET,TANK CAP

GASKET

HOLDER

HOLDER,TUBE

COVER,FUEL TAP

HOOK

VALVE-RELIEF

TANK-FUEL

TAP-ASSY,PIPE COMP,FUEL TANK

TAP-ASSY,FUEL

CAP-TANK,FUEL

FILLER,FUEL TANK

SCREW,4X8

SCREW

WASHER

CLAMP

CLAMP,TUBE

CLAMP

CHAIN,COVER,L=100

BAND,L=544

BAND,L=201

KNOB,FUEL TAP

TUBE,TANK-BREATHER

TUBE,45X53X145

TUBE,5.8X10.8X2900

TUBE,5.8X10.8X310

TUBE,"ON",5.8X10.8X1340

TUBE,"RES",5.8X10.8X1340

TUBE,"RETURN",7X12X1340

SCREW-CSK-CROS,5X16

SCREW-PAN-WS-CROS,6X14

SCREW-PAN-WSP-CROS,5X16
