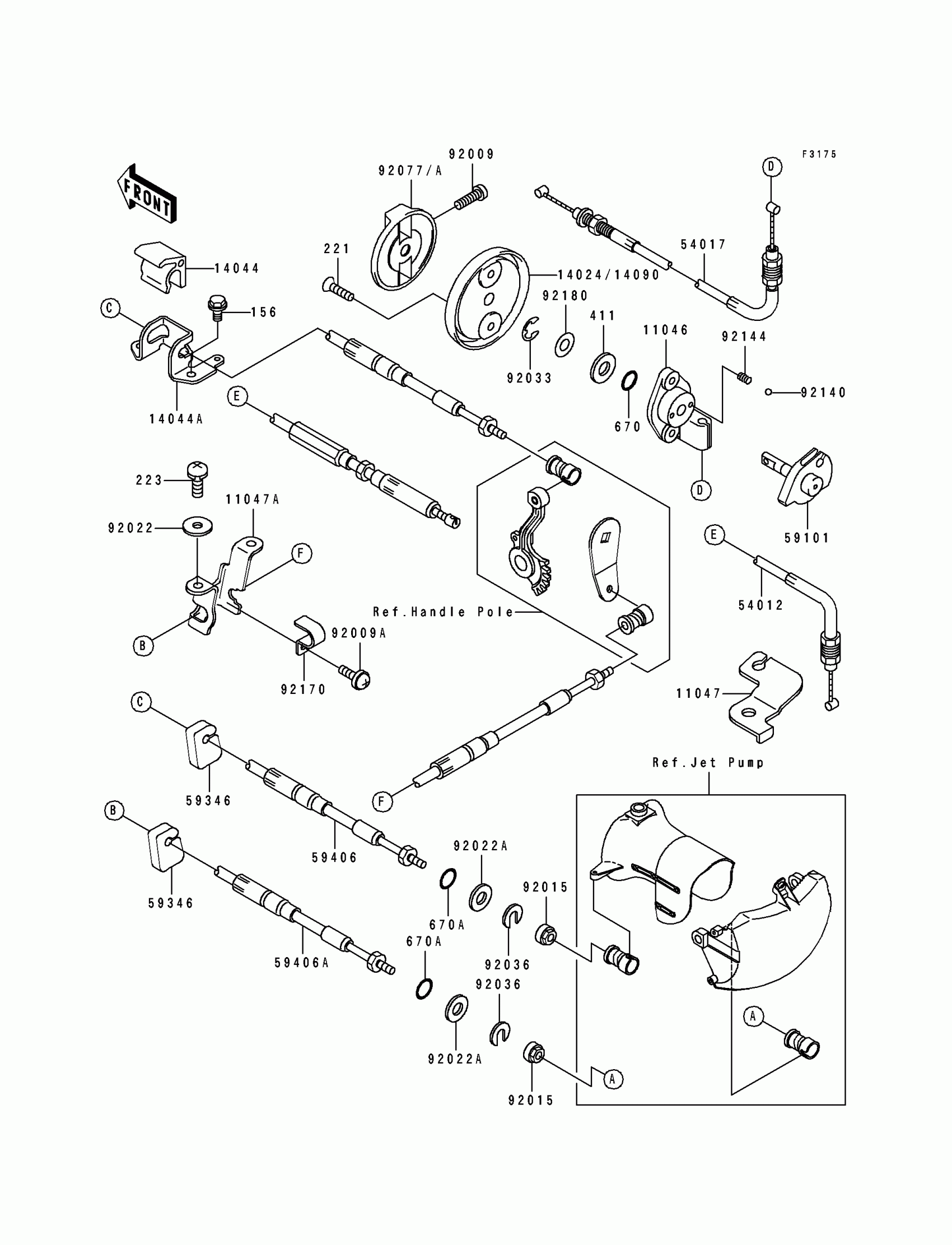

Kawasaki SC Cables Diagram

#

Description
Price

11046

BRACKET,STARTER CABLE

11046-3712

Unavailable

11047

BRACKET,THROTTLE CABLE

11047-3714

Unavailable

11047A

BRACKET,REVERSE CABLE

11047-3722

Unavailable

14044

HOLDER-CABLE,STEERING

14044-3714

$13.40

14044A

HOLDER-CABLE,STEERING

14044-3717

$25.61

14090

COVER,STARTER

14090-3728

Unavailable

54012

CABLE-THROTTLE

54012-3730

$52.75

54017

CABLE-STARTER

54017-3721

Unavailable

59101

REEL,STARTER CABLE

59101-3704

Unavailable

59346

DETENT

59346-504

$8.60

59406

CABLE-STRG

59406-3724

$109.62

59406A

CABLE-STRG,REVERSE

59406-3725

$122.00

92009

SCREW,4X8

92009-3729

$6.61

92009A

SCREW,5X12

92009-3740

$4.18

92015

NUT,20MM

92015-526

$29.72

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92022A

WASHER

92022-535

$7.34

92033

RING-SNAP,7MM

92033-3704

$2.94

92036

RING-SNAP

92036-501

Unavailable

92077A

KNOB,FUEL TAP

92077-3719

Unavailable

92140

BALL,3MM

92140-3702

$4.95

92144

SPRING

92144-3712

$2.53

92170

CLAMP

92170-3724

Unavailable

92180

SHIM,8.5X18X0.15

92180-3702

Unavailable

156

BOLT-WP,6X12

156R0612

$3.90

221

SCREW-CSK-CROS,5X16

221R0516

$2.78

223

SCREW-PAN-WS-CROS,6X16

223R0616

$2.98

411

WASHER-PLAIN,8MM

411S0800

$3.09

670

O RING,8MM

670B1508

$1.29

670A

O RING,11MM

670B2011

$1.28
