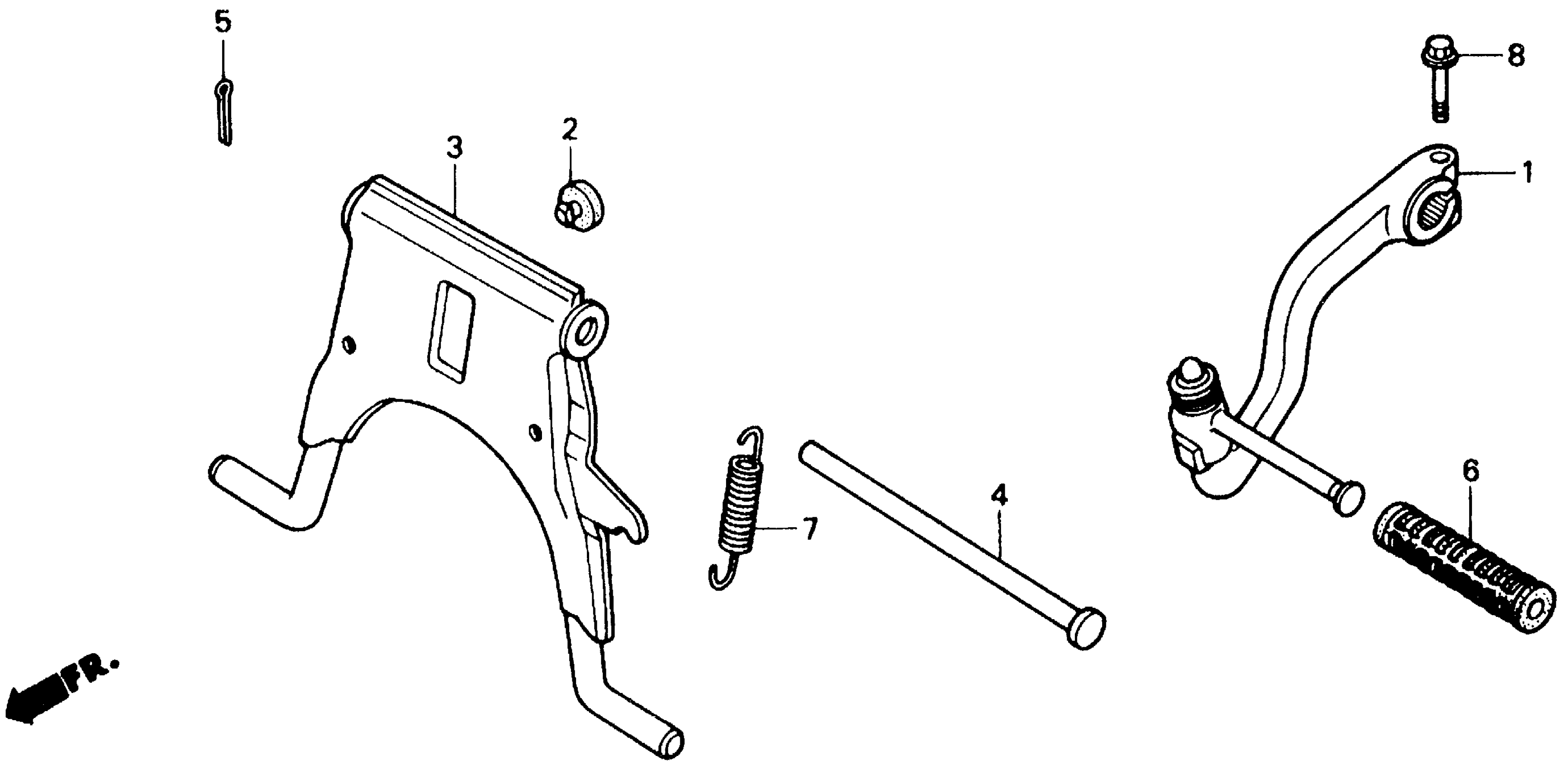

Honda SB50PA (90) ELITE E, JPN, VIN# JH2AF170-LK200001 STAND Diagram

#

Description

Price

1

ARM ASSY., KICK STARTER

28300-GS6-000

Unavailable

2

RUBBER, STOPPER

50352-196-000

Unavailable

3

STAND ASSY., MAIN This part replaces 50500-GS6-010.

50500-GS6-305

Unavailable

3

STAND ASSY., MAIN

50500-GS6-305

Unavailable

4

SHAFT, MAIN STAND This part replaces 50503-GS6-000.

50503-GAB-000

Unavailable

4

SHAFT, MAIN STAND

50503-GAB-000

Unavailable

5

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.94

5

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

5

PIN, COTTER (2.5MM)

94201-25300

$0.94

6

RUBBER A, KICK STARTER

95011-51000

$3.44

7

SPRING D, MAIN STAND

95014-71402

$2.26

8

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
