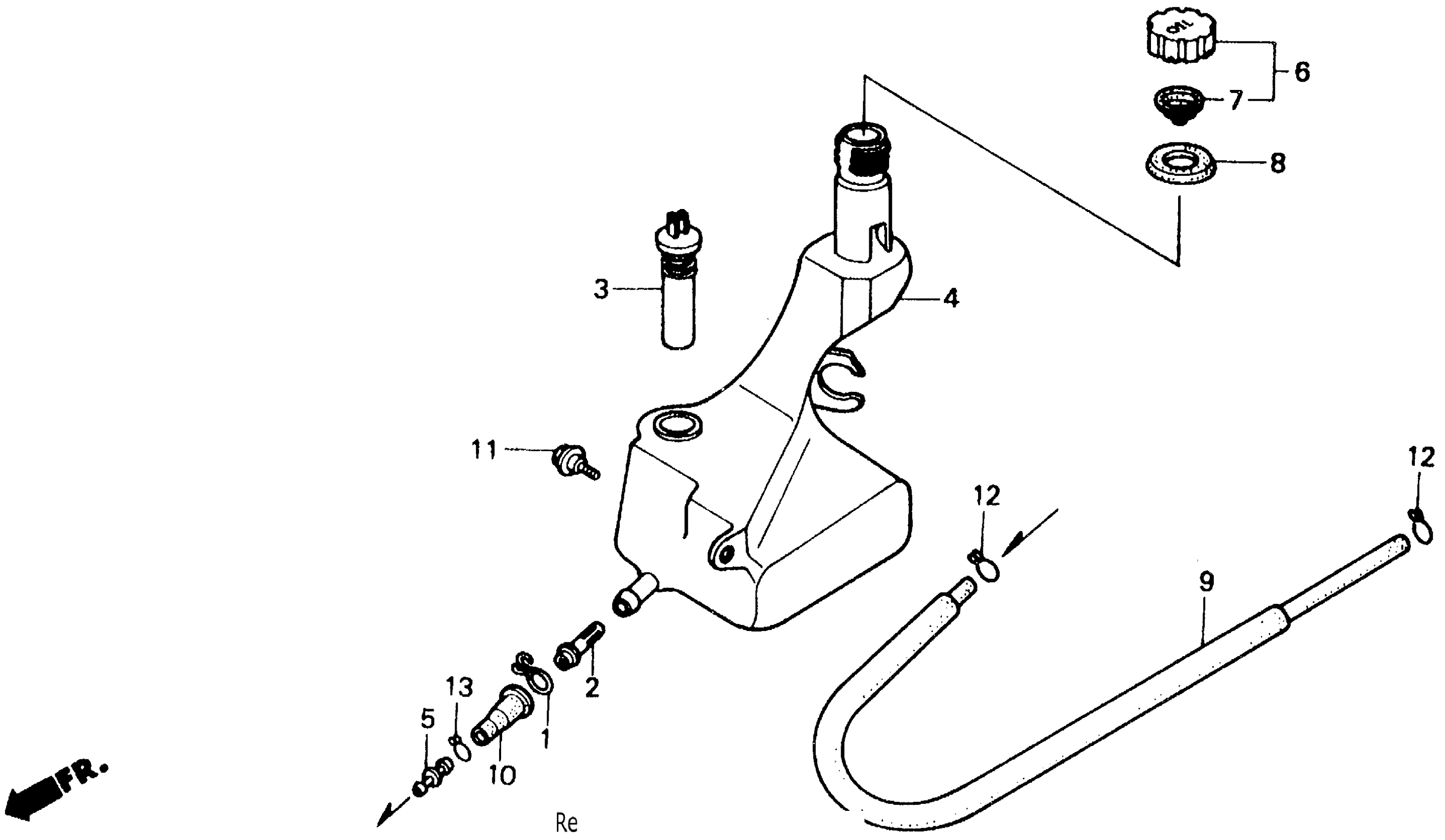

Honda SB50PA (90) ELITE E, JPN, VIN# JH2AF170-LK200001 OIL TANK Diagram

CLIP, BREATHER TUBE

15772-551-000

$2.05

STRAINER, OIL

17502-187-000

$5.37

SWITCH ASSY., OIL LEVEL (MITSUBA)

35410-GF0-014

$58.25

TANK, OIL

55100-GS6-000

Unavailable

TANK, OIL

55100-GS6-153

Unavailable

JOINT, OIL TUBE

55102-166-000

$4.08

CAP ASSY., OIL

55105-GK8-000

$21.84

GASKET, OIL CUP

55107-GK8-000

$8.10

RUBBER, OIL GUIDE

55121-GN2-600

Unavailable

TUBE, OIL (5.3MM) This part replaces 55123-GS6-000.

55123-GN0-405

Unavailable

JOINT, OIL STRAINER

55201-GC8-000

Unavailable

BOLT, FLANGE (6MM)

90111-162-000

$2.89

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (C9)

95002-50000

$1.49
