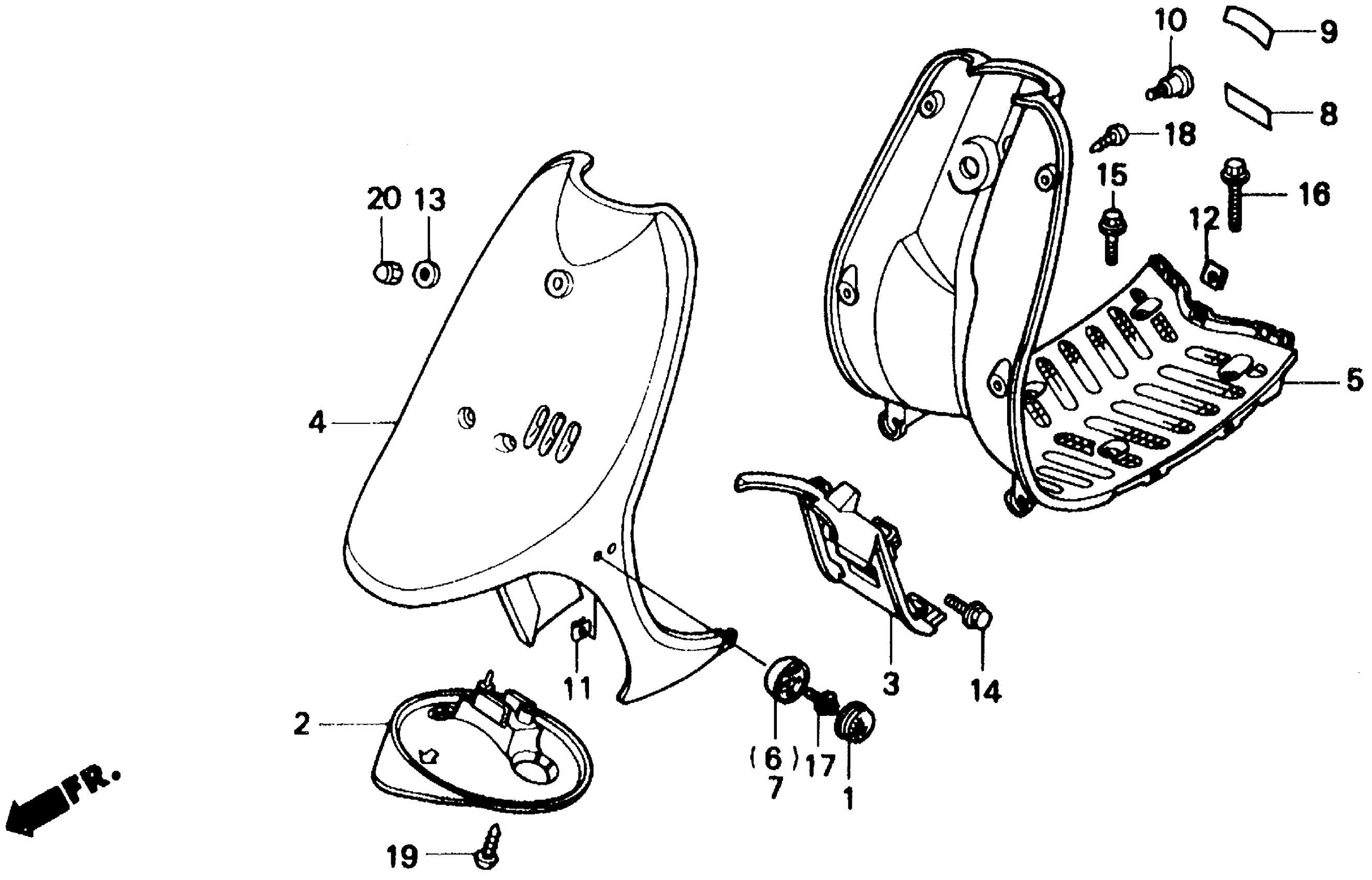

Honda SB50PA (90) ELITE E, JPN, VIN# JH2AF170-LK200001 FRONT COVER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-GS7-671

$14.68

2

FENDER, FR. (INNER)

61100-GS6-000

Unavailable

3

SPLASH GUARD, FR.

61150-GS6-000

Unavailable

4

COVER, FR. *RP114* (WOL) (SHERBET PINK) (NOT AVAILABLE)

64310-GS6-670ZB

Unavailable

4

COVER, FR. *NH1* (WOL) (BLACK)

64310-GS6-670ZC

Unavailable

5

COVER (INNER) *NH154R* (TASMAN GRAY)

64311-GS6-000ZF

Unavailable

6

BASE, R. FR. REFLECTOR

81132-GS6-680

Unavailable

7

BASE, L. FR. REFLECTOR

81133-GS6-680

Unavailable

8

LABEL, TIRE

87505-GS6-680

$6.08

9

LABEL B, CAUTION (TYPEW)

87509-GS7-680ZA

Unavailable

10

BOLT, FLANGE (6MM)

90113-GS6-010

$2.88

11

NUT, SPRING (5MM)

90320-GC3-000

$2.20

12

NUT, CLIP (5MM)

90320-GS6-000

Unavailable

13

WASHER (6X17)

90474-GS6-000

Unavailable

14

BOLT-WASHER (6X16)

93404-06016-00

$1.55

15

BOLT-WASHER (6X20)

93404-06020-07

$1.55

16

BOLT-WASHER (6X32)

93404-06032-07

Unavailable

17

SCREW-WASHER (5X12)

93891-05012-00

$1.49

18

SCREW, TAPPING (4X12)

93903-34380

$2.18

19

SCREW, TAPPING (5X25)

93904-25520

Unavailable

20

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

20

NUT, CAP (6MM)

94021-06020

$1.73

20

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

20

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73
