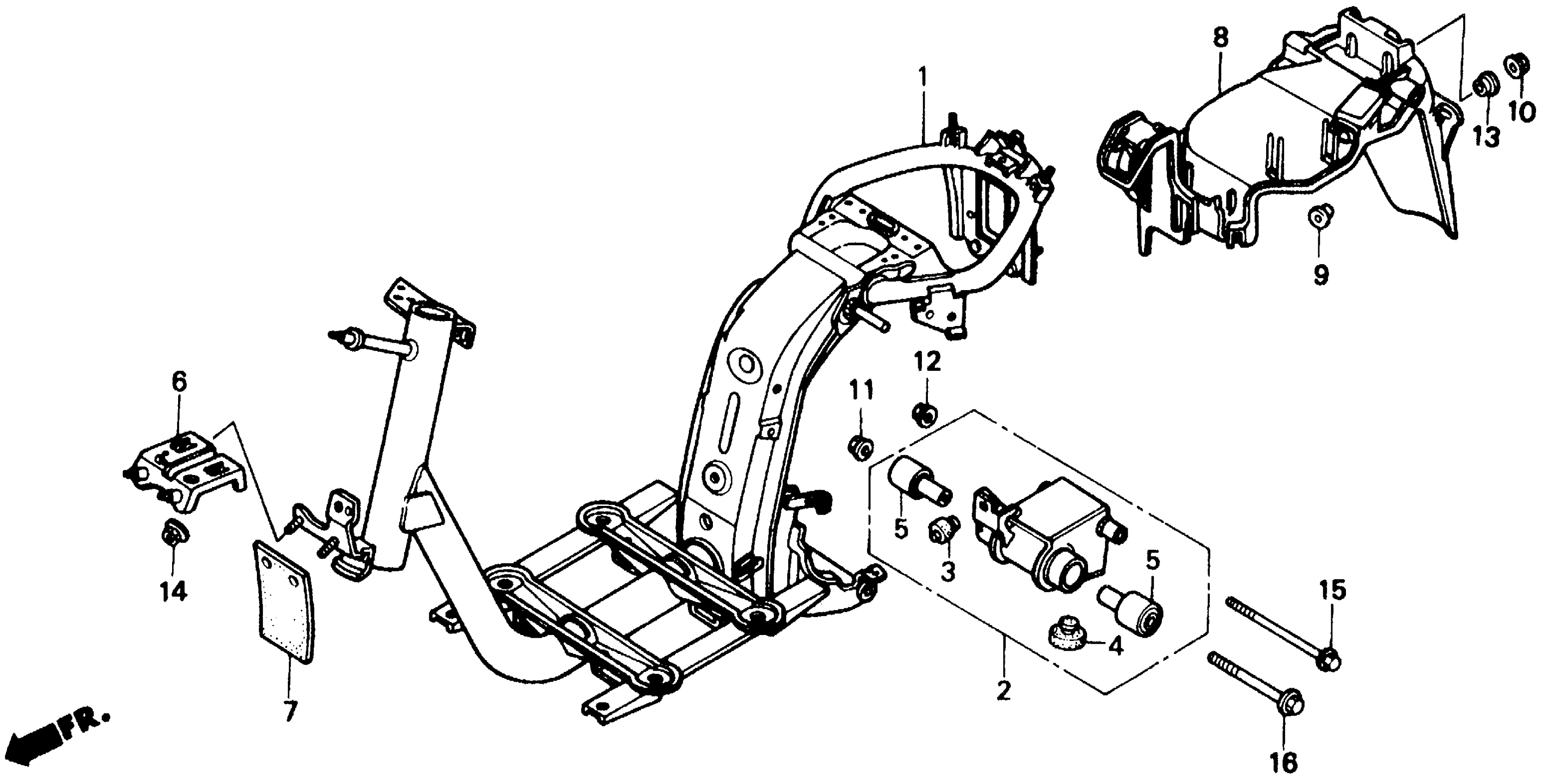

Honda SB50PA (90) ELITE E, JPN, VIN# JH2AF170-LK200001 FRAME Diagram

FRAME

50100-GS6-670

Unavailable

LINK ASSY., ENGINE HANGER

50350-GS6-020

Unavailable

RUBBER, LINK STOPPER

50352-GS6-000

$4.53

RUBBER, STOPPER

50352-196-000

Unavailable

BUSH, ENGINE HANGER RUBBER

50353-GS6-000

Unavailable

STAY, FR. COVER

64315-GS6-000

Unavailable

SPLASH GUARD, FR. (B)

64319-GS6-000

Unavailable

FENDER, RR. (NOT AVAILABLE)

80101-GS6-000

Unavailable

SPACER, RR. FENDER

80103-GS6-670

Unavailable

NUT, FLANGE (6MM)

90302-187-000

$2.39

NUT, U (10MM)

90304-GE8-003

$3.67

NUT, FLANGE (8MM)

90309-428-731

$3.35

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (8X125)

95801-08125-08

Unavailable

BOLT, FLANGE (10X120)

95801-10120-00

$4.73
