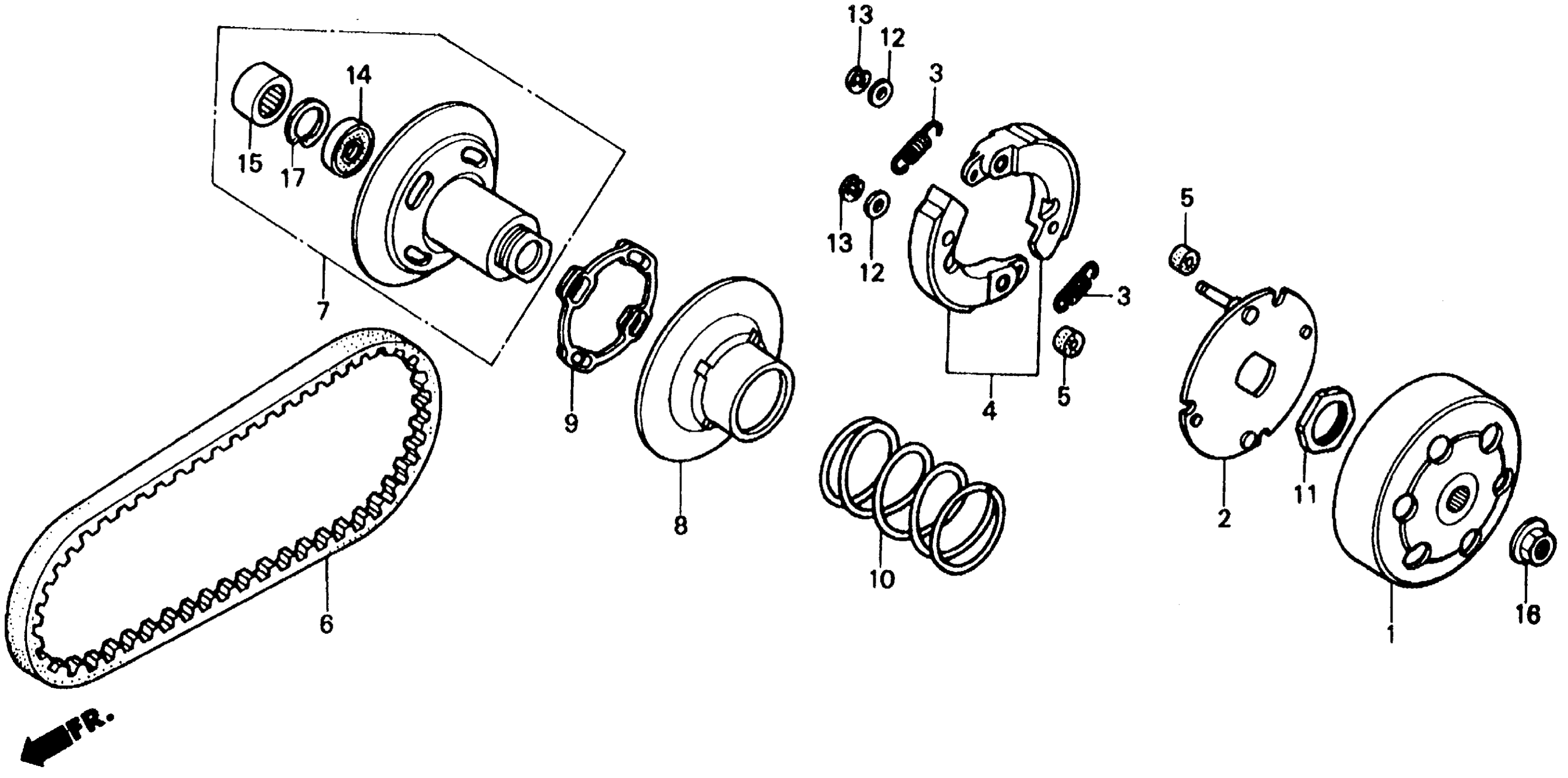

Honda SB50PA (90) ELITE E, JPN, VIN# JH2AF170-LK200001 DRIVEN FACE Diagram

CLUTCH (OUTER)

22100-GS6-000

Unavailable

PLATE, DRIVE

22350-GS6-000

$37.23

SPRING, CLUTCH

22401-GS6-000

Unavailable

WEIGHT SET, CLUTCH

22535-GS6-315

Unavailable

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

BELT, DRIVE

23100-GK8-870

$38.95

FACE ASSY., DRIVEN

23200-GS6-000

Unavailable

FACE, MOVABLE DRIVEN

23220-GS6-010

Unavailable

PLATE, SLIDE

23224-GS6-000

$13.16

SPRING, DRIVEN FACE

23233-GS6-000

Unavailable

NUT, SPECIAL (28MM)

90202-187-000

$7.32

WASHER, THRUST (6MM)

90442-GB2-000

$3.80

CIRCLIP (6MM)

90454-GB2-000

$1.79

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

BEARING, NEEDLE (15X25X15) (TOYO)

91103-GK8-003

Unavailable

NUT, FLANGE (10MM)

94050-10000

$1.59

CIRCLIP (INNER) (24MM)

94520-24000

$1.49
