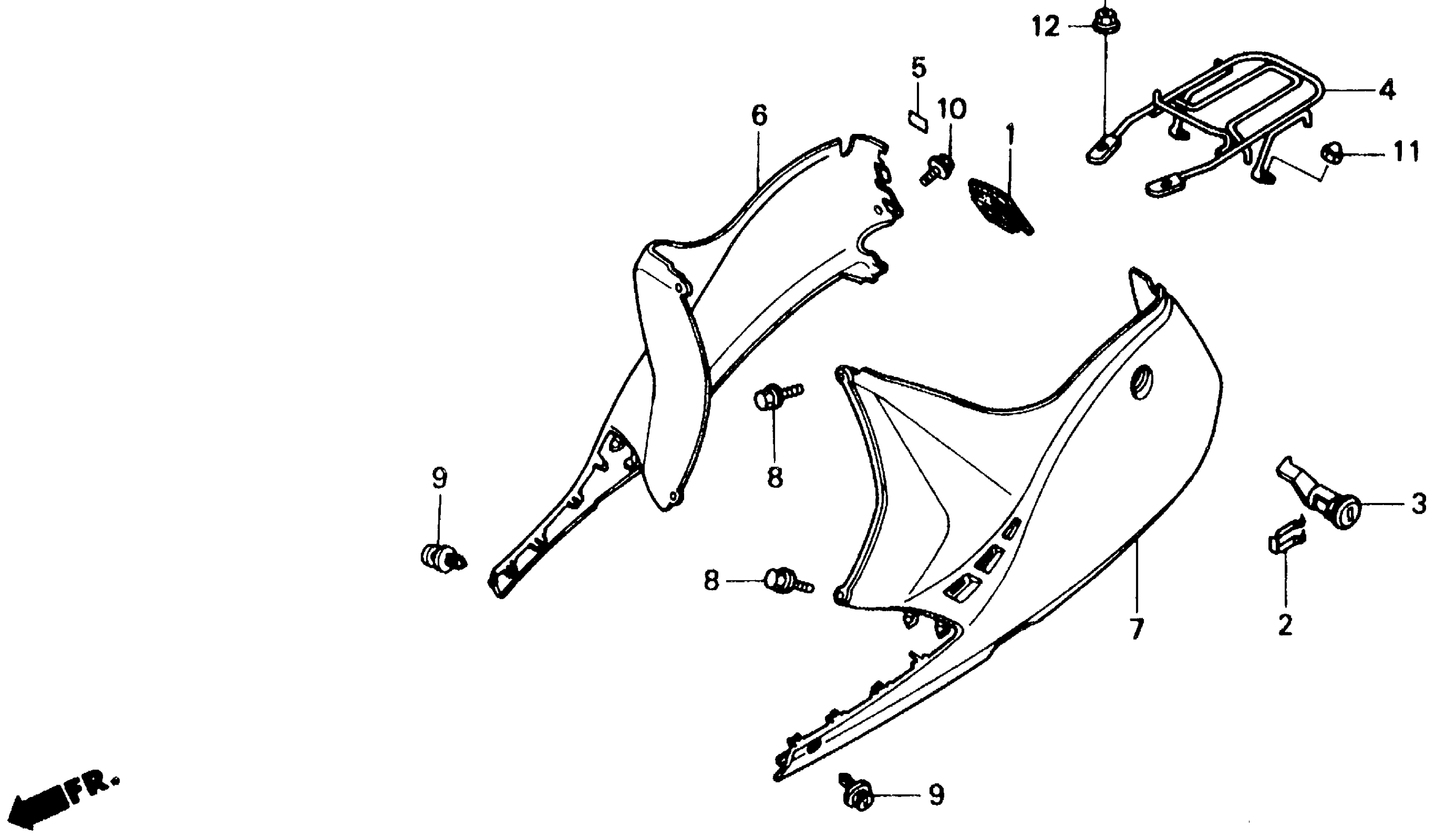

Honda SB50PA (90) ELITE E, JPN, VIN# JH2AF170-LK200001 BODY COVER Diagram

GROMMET, FUEL METER

54701-GS6-000

Unavailable

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

LOCK ASSY., SEAT

77230-GS6-003

Unavailable

CARRIER, LUGGAGE (NOT AVAILABLE)

81200-GS6-670

Unavailable

LABEL, RR. CARRIER *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

81220-GS7-680ZA

Unavailable

LABEL, RR. CARRIER (TYPEB)

81220-GS7-680ZB

Unavailable

COVER, R. BODY *RP114* (WOL) (SHERBET PINK) (NOT AVAILABLE)

83500-GS6-670ZB

Unavailable

COVER, R. BODY *NH1* (WOL) (BLACK)

83500-GS6-670ZC

Unavailable

COVER, L. BODY *RP114* (WOL) (SHERBET PINK) (NOT AVAILABLE)

83600-GS6-670ZB

Unavailable

COVER, L. BODY *NH1* (WOL) (BLACK) (NOT AVAILABLE)

83600-GS6-670ZC

Unavailable

BOLT-WASHER (5X16)

90302-GR2-000

$3.61

CLIP, BODY COVER

90683-GR1-003

$2.92

BOLT-WASHER (6X12)

93404-06012-00

$1.55

NUT, CAP (6MM)

94021-06070-0S

$1.62

NUT, FLANGE (6MM)

94050-06000

$1.49
