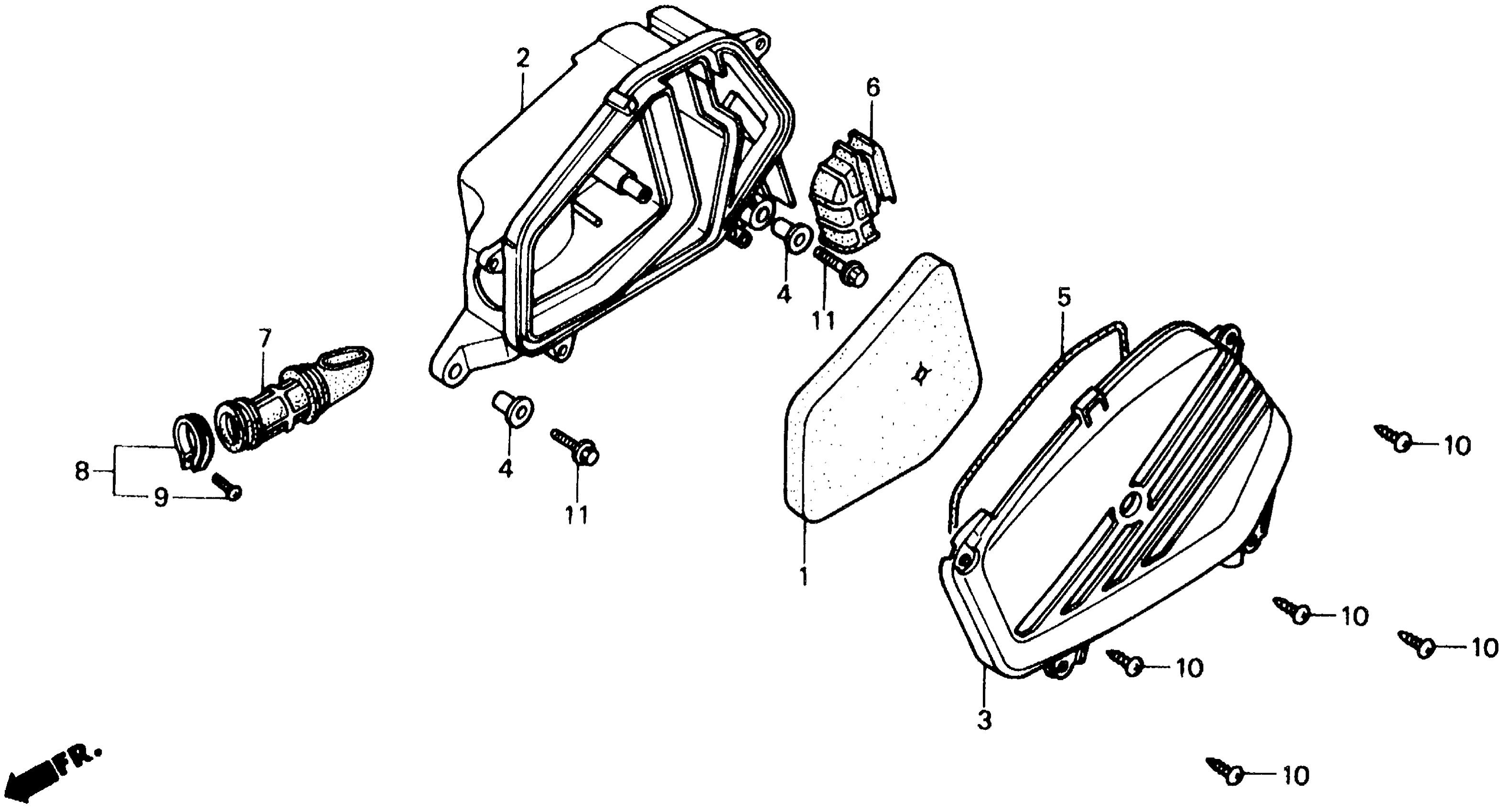

Honda SB50PA (90) ELITE E, JPN, VIN# JH2AF170-LK200001 AIR CLEANER Diagram

#

Description

Price

1

ELEMENT, AIR CLEANER

17205-GS6-000

$4.84

2

HOUSING, AIR CLEANER

17206-GS6-000

Unavailable

3

COVER, AIR CLEANER HOUSING

17207-GS6-000

Unavailable

4

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.92

5

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17212-GS6-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

6

DUCT, AIR CLEANER HOUSING

17214-GS6-000

Unavailable

7

TUBE, AIR CLEANER CONNECTING

17253-GS6-000

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 90652-GHB-600.

95018-34250

$7.78

8

BAND, AIR CLEANER CONNECTING TUBE (34)

95018-34250

$7.78

9

SCREW, PAN (4X25)

93500-04025-0G

$1.49

10

SCREW, TAPPING (5X16)

93903-25380

$1.49

11

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
