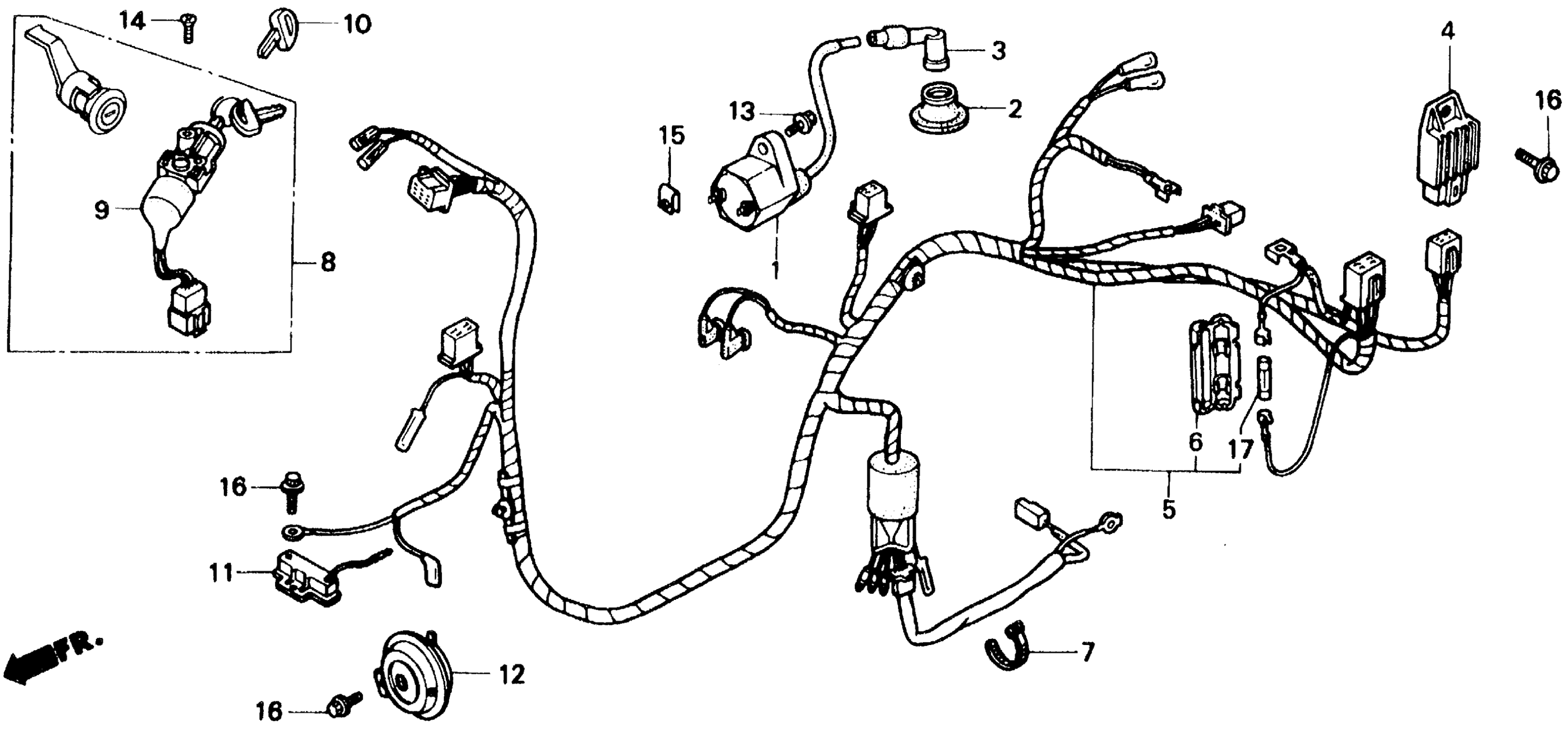

Honda SB50PA (89) ELITE E, JPN, VIN# JH2AF170-KK100001 WIRE HARNESS Diagram

COIL, IGNITION This part replaces 30510-GR1-000.

30510-GR2-405

$74.70

COIL, IGNITION

30510-GR2-405

$74.70

SEAL, IGNITION

30605-GR1-010

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-GN0-601.

30700-KE6-702

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-GN0-602.

30700-KE6-702

Unavailable

CAP ASSY., NOISE SUPPRESSOR

30700-KE6-702

Unavailable

RECTIFIER, REGULATOR (SHINDENGEN)

31600-GW0-004

Unavailable

WIRE HARNESS

32100-GS6-670

Unavailable

CASE, FUSE (7A)

32120-155-000

Unavailable

BAND B1, CABLE

32161-404-610

$2.23

LOCK SET This part replaces 35010-GS6-670.

35010-GS6-671

Unavailable

LOCK SET

35010-GS6-671

Unavailable

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GR1-670.

35100-GR1-671

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-GR1-671

Unavailable

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

RESISTOR

35400-GAB-000

Unavailable

RESISTOR This part replaces 35400-GN2-000.

35400-GAB-000

Unavailable

HORN This part replaces 38110-GS6-670.

38110-GS6-700

Unavailable

HORN

38110-GS6-700

Unavailable

BOLT, FLANGE (5X22) This part replaces 90112-GK8-000.

90112-GK8-010

$2.84

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

NUT, FLANGE (5MM)

94050-05000

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

FUSE A (7A)

98200-10700

$1.49
