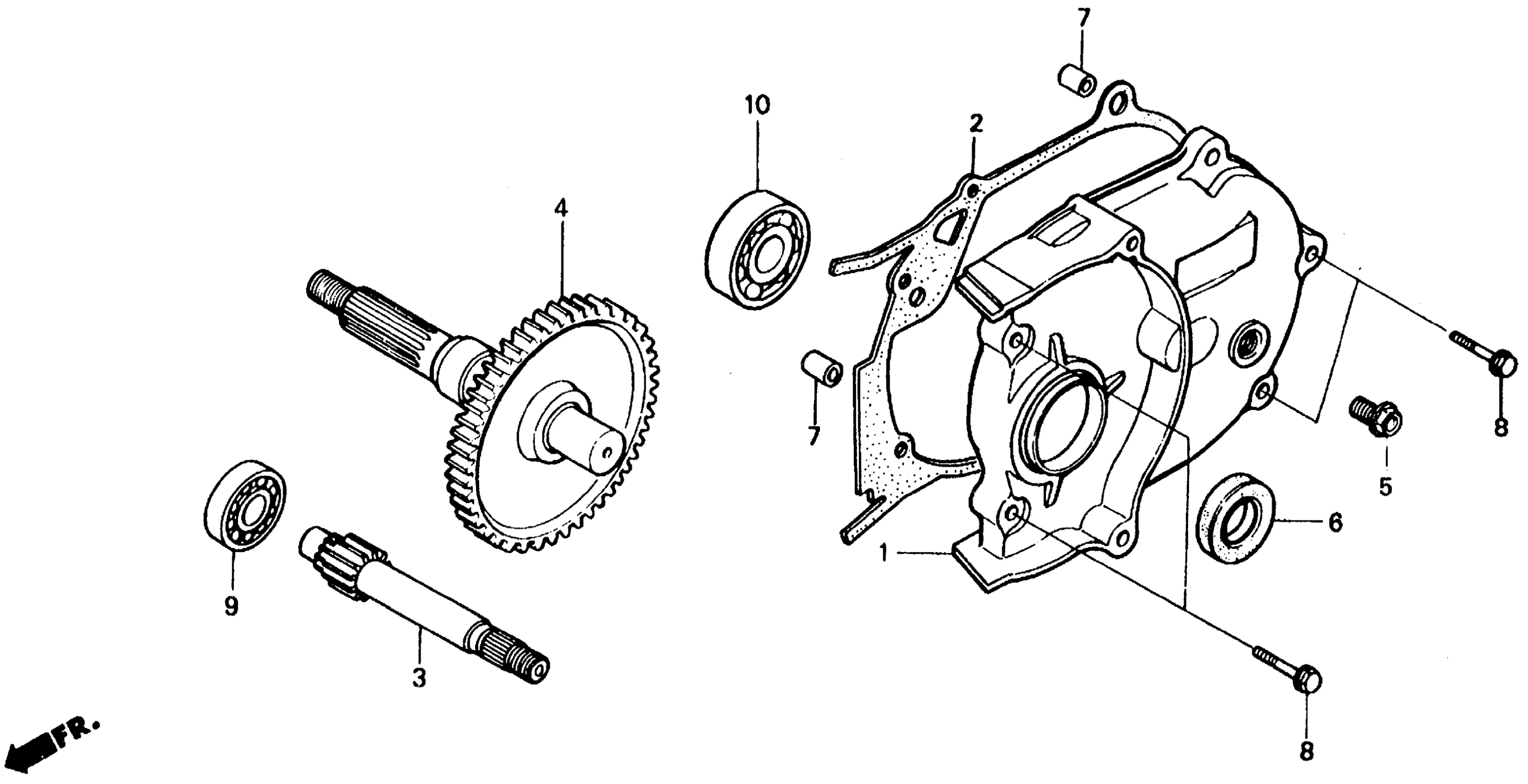

Honda SB50PA (89) ELITE E, JPN, VIN# JH2AF170-KK100001 TRANSMISSION Diagram

COVER, TRANSMISSION

21301-GK8-010

Unavailable

GASKET, TRANSMISSION | Use up to Engine SN 2612952 This part replaces 21395-GR2-000.

21395-GR2-306

Unavailable

GASKET, TRANSMISSION This part replaces 21395-GR2-010.

21395-GR2-306

Unavailable

GASKET, TRANSMISSION

21395-GR2-306

Unavailable

DRIVESHAFT (13T)

23411-GS6-000

Unavailable

GEAR, FINAL (83T)

23430-GAB-000

Unavailable

GEAR, FINAL (83T) This part replaces 23430-GK8-000.

23430-GAB-000

Unavailable

GEAR, FINAL (83T) This part replaces 23430-GK8-670.

23430-GAB-000

Unavailable

BOLT, CHECK (8MM)

90035-GF4-000

$7.16

OIL SEAL (15X24X5)

91204-GK8-003

$4.85

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BEARING, RADIAL BALL (6201)

96100-62013-00

$9.33

BEARING, RADIAL BALL (6202)

96100-62023-00

Unavailable
