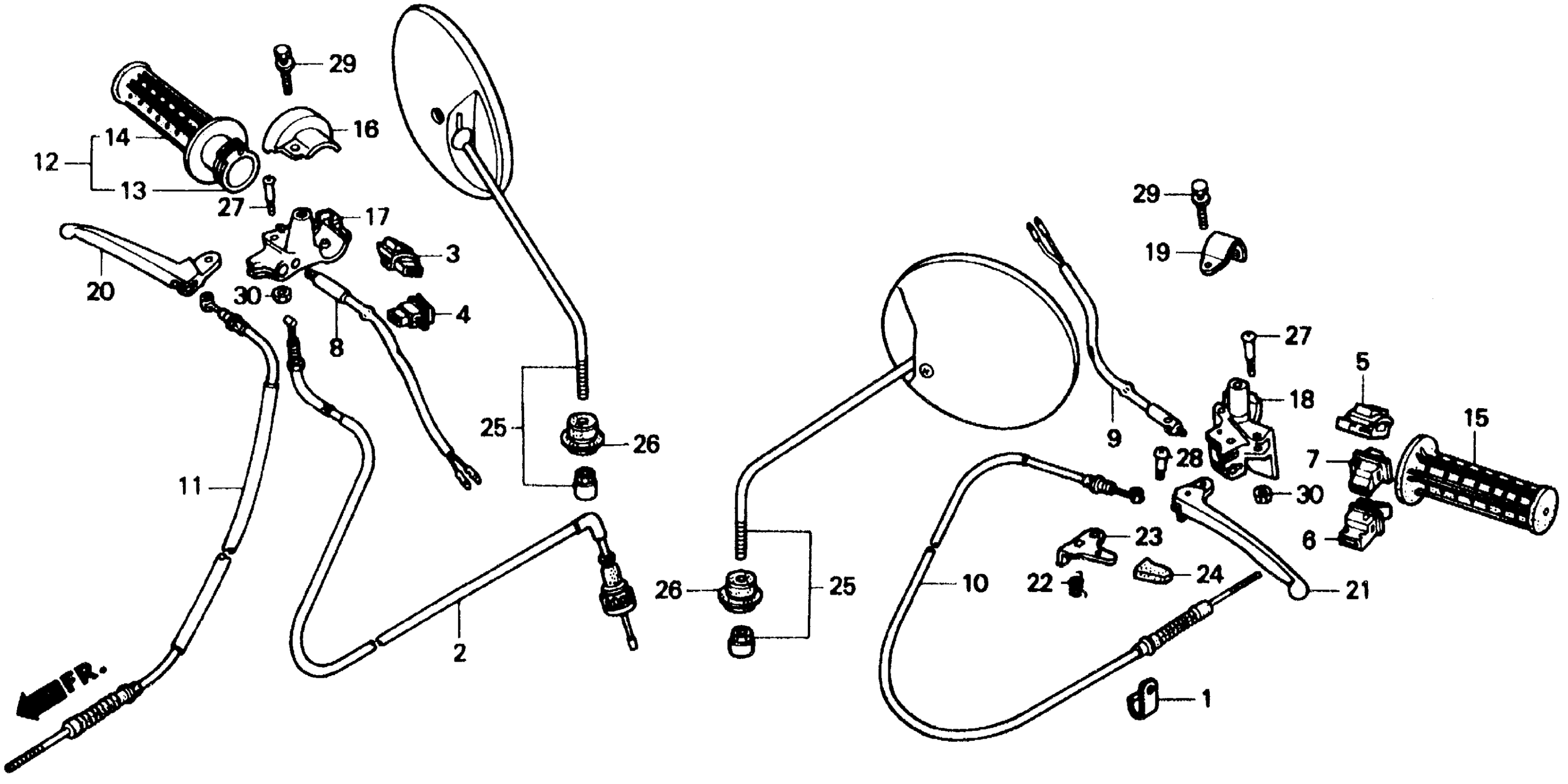

Honda SB50PA (89) ELITE E, JPN, VIN# JH2AF170-KK100001 HANDLE SWITCH Diagram

CLIP, TUBE

17113-196-000

Unavailable

CABLE SET, THROTTLE

17920-GS6-305

Unavailable

SWITCH UNIT, STOP

35130-GS7-671

Unavailable

SWITCH UNIT, STARTER This part replaces 35160-GS7-670.

35160-GS7-671

Unavailable

SWITCH UNIT, STARTER

35160-GS7-671

Unavailable

SW UNIT,DIMMER . This part replaces 35170-GS7-670.

35170-GBM-701

Unavailable

SWITCH UNIT, HORN | Use up to Frame SN KK106788 This part replaces 35180-GS7-670.

35180-GS7-671

$23.31

SWITCH UNIT, HORN

35180-GS7-671

$23.31

SWITCH UNIT, TURN SIGNAL

35200-GS7-670

$23.44

SWITCH ASSY., FR. STOP This part replaces 35340-GM0-010.

35340-GBJ-000

$21.26

SWITCH ASSY., FR. STOP This part replaces 35340-GN2-003.

35340-GBJ-000

$21.26

SWITCH ASSY., FR. STOP This part replaces 35340-GN2-771.

35340-GBJ-000

$21.26

SWITCH ASSY., FR. STOP This part replaces 35340-GN2-003.

35340-GBJ-000

$21.26

SWITCH ASSY., FR. STOP This part replaces 35340-GN2-771.

35340-GBJ-000

$21.26

CABLE, RR. BRAKE

43450-GS6-670

Unavailable

CABLE, FR. BRAKE

45450-GS6-670

Unavailable

GRIP, THROTTLE

53140-GS7-000

Unavailable

GRIP, L. HANDLE

53166-GA7-000

$6.48

HOUSING, THROTTLE This part replaces 53167-GS7-003.

53167-GS7-013

Unavailable

HOUSING, THROTTLE (LOWER) (TOYO)

53168-GS6-003

Unavailable

BRACKET, HANDLE

53172-GS6-670

Unavailable

BAND, HANDLE BRACKET

53173-GS7-003

$5.09

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GR2-000.

53175-GGA-305

$12.88

LEVER, L. HANDLEBAR

53178-GS6-670

Unavailable

SPRING, PARKING BRAKE LEVER

53191-957-010

Unavailable

LEVER, PARKING BRAKE LOCK

53192-GS7-670

Unavailable

CAP, PARKING BRAKE LEVER

53193-957-000

Unavailable

MIRROR ASSY.

88110-GM8-000

Unavailable

CAP, LOCK NUT

88113-GS7-000

Unavailable

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.72

SCREW, PARKING LEVER PIVOT

90116-GS7-670

Unavailable

BOLT-WASHER (6X20)

93401-06020-00

$1.55

NUT, HEX. (5MM)

94001-05000-0S

$2.74
