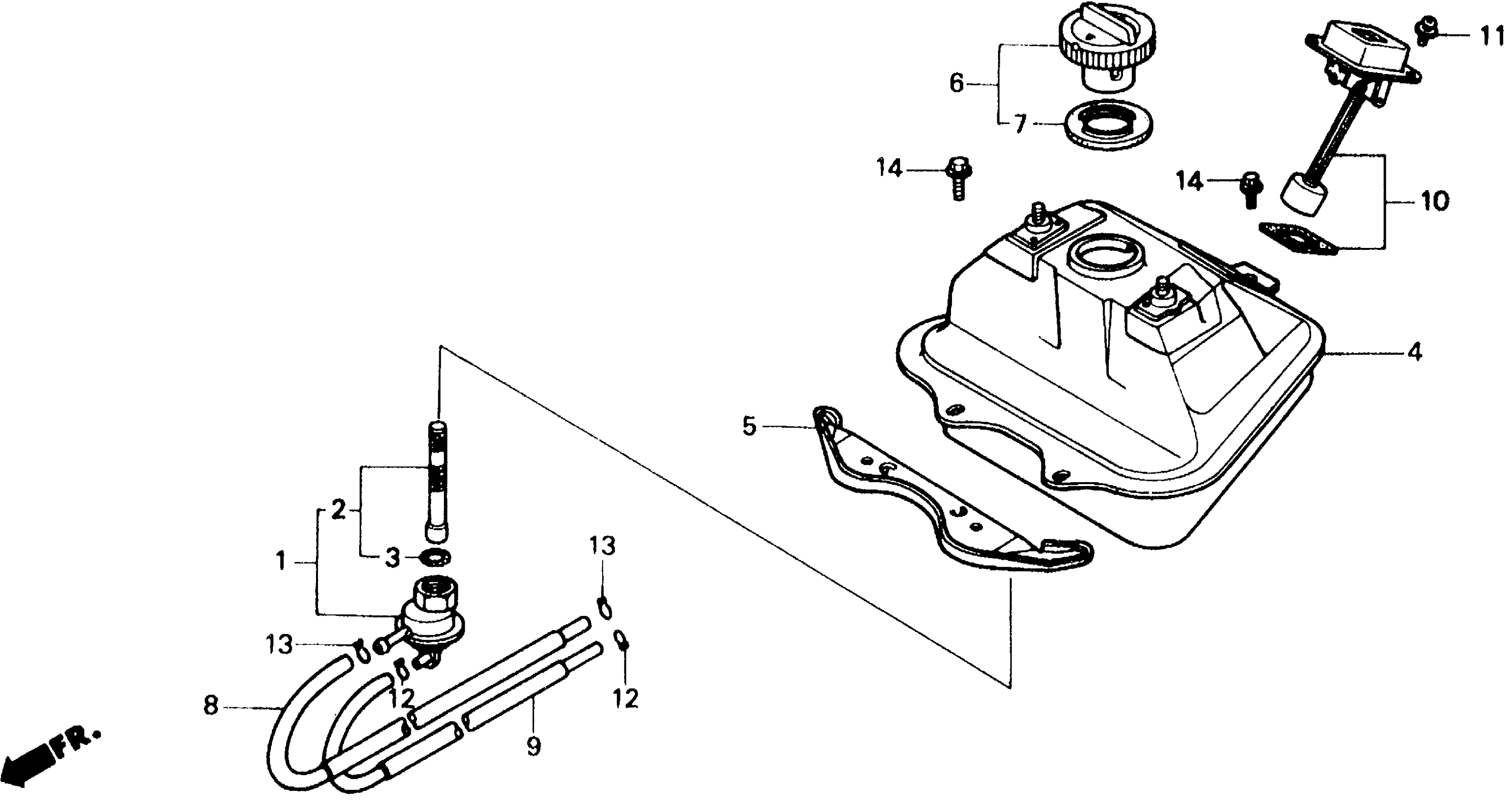

Honda SB50PA (89) ELITE E, JPN, VIN# JH2AF170-KK100001 FUEL TANK Diagram

PETCOCK ASSY., AUTO This part replaces 16950-KJ9-751.

16950-KJ9-752

$52.06

SCREEN SET, FUEL STRAINER

16952-GM8-305

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16952-KJ9-751.

16952-GM8-305

Unavailable

O-RING (9X1.3)

16958-397-771

$4.93

TANK, FUEL

17500-GS6-670

Unavailable

PLATE, GUIDE

17551-GS6-000

Unavailable

CAP, FUEL FILLER This part replaces 17620-GS7-671.

17620-GCC-C52

Unavailable

GASKET, FUEL FILLER CAP | Use up to Frame SN KK112745 This part replaces 17632-383-830.

17632-383-832

Unavailable

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

Unavailable

TUBE, FUEL

17681-GS6-000

Unavailable

TUBE, VACUUM

17683-GS6-000

Unavailable

METER ASSY., FUEL (NOT AVAILABLE)

17800-GS6-670

Unavailable

SCREW-WASHER (5X10)

93893-05010-07

$1.19

CLIP, TUBE (B7)

95002-02070

$1.59

CLIP, TUBE (B8)

95002-02080

$1.59

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
