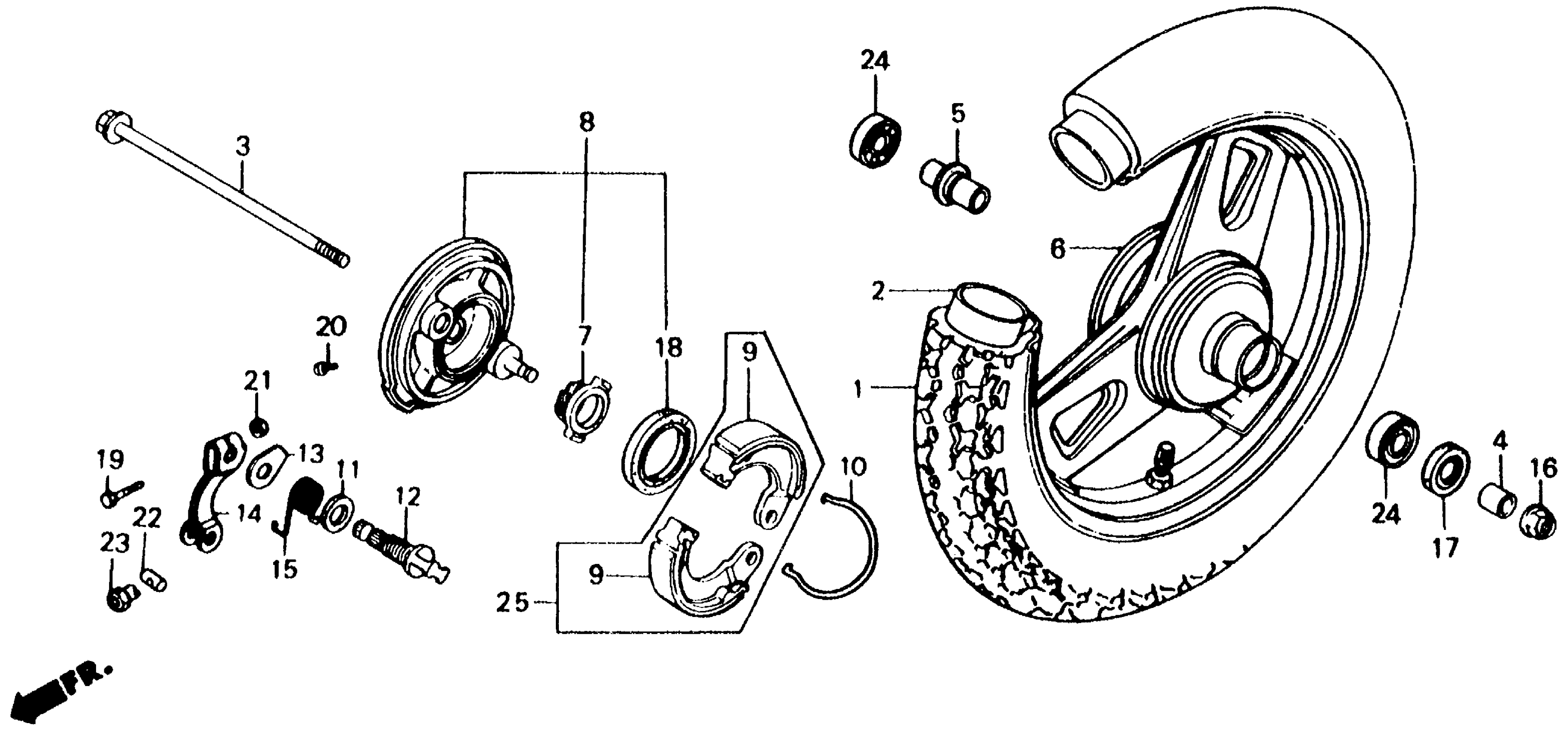

Honda SB50PA (89) ELITE E, JPN, VIN# JH2AF170-KK100001 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06430-131-405

$15.33

NI

SHOE SET, BRAKE This part replaces 451A2-147-672.

06430-131-405

$15.33

1

*42711-GS6-673 This part replaces 42711-GS6-672.

42711-GS6-702

Unavailable

1

TIRE (2.50-10) (4PR 33J MB35K) (INOUE)

42711-GS6-673

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-GF0-003.

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-GF0-004.

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE)

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-GN2-622.

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-GS6-154.

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-187-003.

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-187-004.

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-187-005.

42712-GF0-005

Unavailable

3

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-191-000.

44301-147-000

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-GS6-000

Unavailable

5

COLLAR, FR. DISTANCE

44620-147-000

$8.80

6

WHEEL SET, FR. *NH35M* (CLOUD SILVER METALLIC) This part replaces 44650-GK8-020ZA.

44650-GK8-305ZA

Unavailable

6

WHEEL SET, FR. *NH35M* (CLOUD SILVER METALLIC) This part replaces 44650-GK8-030ZA.

44650-GK8-305ZA

Unavailable

6

WHEEL SET, FR. *NH35M* (CLOUD SILVER METALLIC)

44650-GK8-305ZA

Unavailable

7

GEAR, SPEEDOMETER

44806-GA7-003

Unavailable

8

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) | Use up to Frame SN KK106309

45010-GS6-306ZA

Unavailable

8

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) | Use from Frame SN KK106310 This part replaces 45010-GS6-305ZA.

45010-GS6-315ZA

Unavailable

8

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) | Use from Frame SN KK106310

45010-GS6-315ZA

Unavailable

9

SHOE SET, BRAKE

06430-131-405

$15.33

9

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

9

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

9

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

10

SPRING, BRAKE SHOE

45133-044-000

$2.31

11

SEAL, BRAKE CAM

45134-165-890

$1.57

12

CAM, FR. BRAKE

45141-GR1-010

Unavailable

13

INDICATOR, FR. BRAKE

45145-GN2-000

Unavailable

14

ARM, FR. BRAKE

45410-GK8-000

Unavailable

15

SPRING, BRAKE ARM RETURN

45435-GC3-000

$5.90

16

NUT, U (10MM)

90304-GE8-003

$3.67

17

OIL SEAL (19X30.5X7) (ARAI)

90754-147-003

$5.31

18

OIL SEAL (34X42X5)

91252-GK8-000

Unavailable

19

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

20

SCREW, PAN (4X6)

93500-04006-0A

$1.49

21

NUT, HEX. (5MM)

94001-05000-0S

$2.74

22

JOINT A, BRAKE ARM

95015-31001

$1.53

23

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

24

BEARING, RADIAL BALL (6200U)

96140-62000-10

$15.44

25

SHOE SET, BRAKE | (Optional). This part replaces 06430-GAB-003.

06430-131-405

$15.33

25

SHOE SET, BRAKE | (Optional). This part replaces 06430-GZ9-003.

06430-131-405

$15.33
