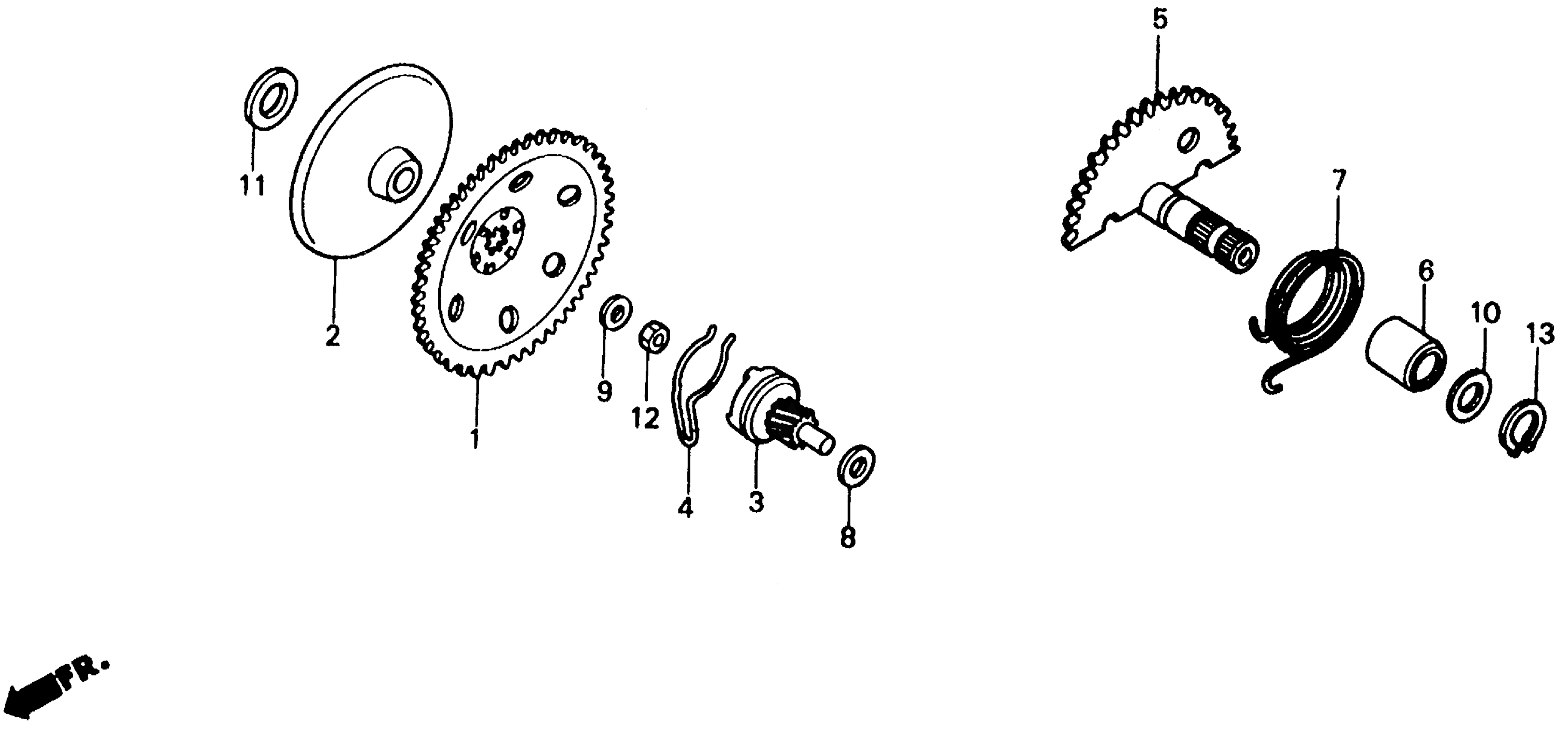

Honda SB50PA (89) ELITE E, JPN, VIN# JH2AF170-KK100001 DRIVE FACE Diagram

#

Description

Price

1

FACE, DRIVE (64T)

22102-GS6-700

Unavailable

2

FACE, R. DRIVE

22103-GS6-000

Unavailable

3

GEAR, KICK DRIVEN (7T)

28220-GR2-000

Unavailable

4

SPRING, STARTER GEAR FRICTION

28223-GR2-020

Unavailable

5

SPINDLE, KICK STARTER (42T)

28250-GR2-000

Unavailable

6

BUSH, KICK SPINDLE

28253-GN2-601

$9.13

7

SPRING, KICK RETURN

28281-GR2-023

Unavailable

8

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$1.49

9

WASHER, SPECIAL (10X18) This part replaces 90426-001-000.

90426-GW0-730

$3.49

9

WASHER, SPECIAL (10X18)

90426-GW0-730

$3.49

10

WASHER (14MM) This part replaces 90451-GN2-600.

90451-GBL-870

$2.92

11

WASHER, THRUST (12MM)

90452-166-600

$2.39

12

NUT, HEX. (10MM)

94002-10200-0S

$1.49

13

CIRCLIP (OUTER) (14MM)

94511-14000

$1.49
