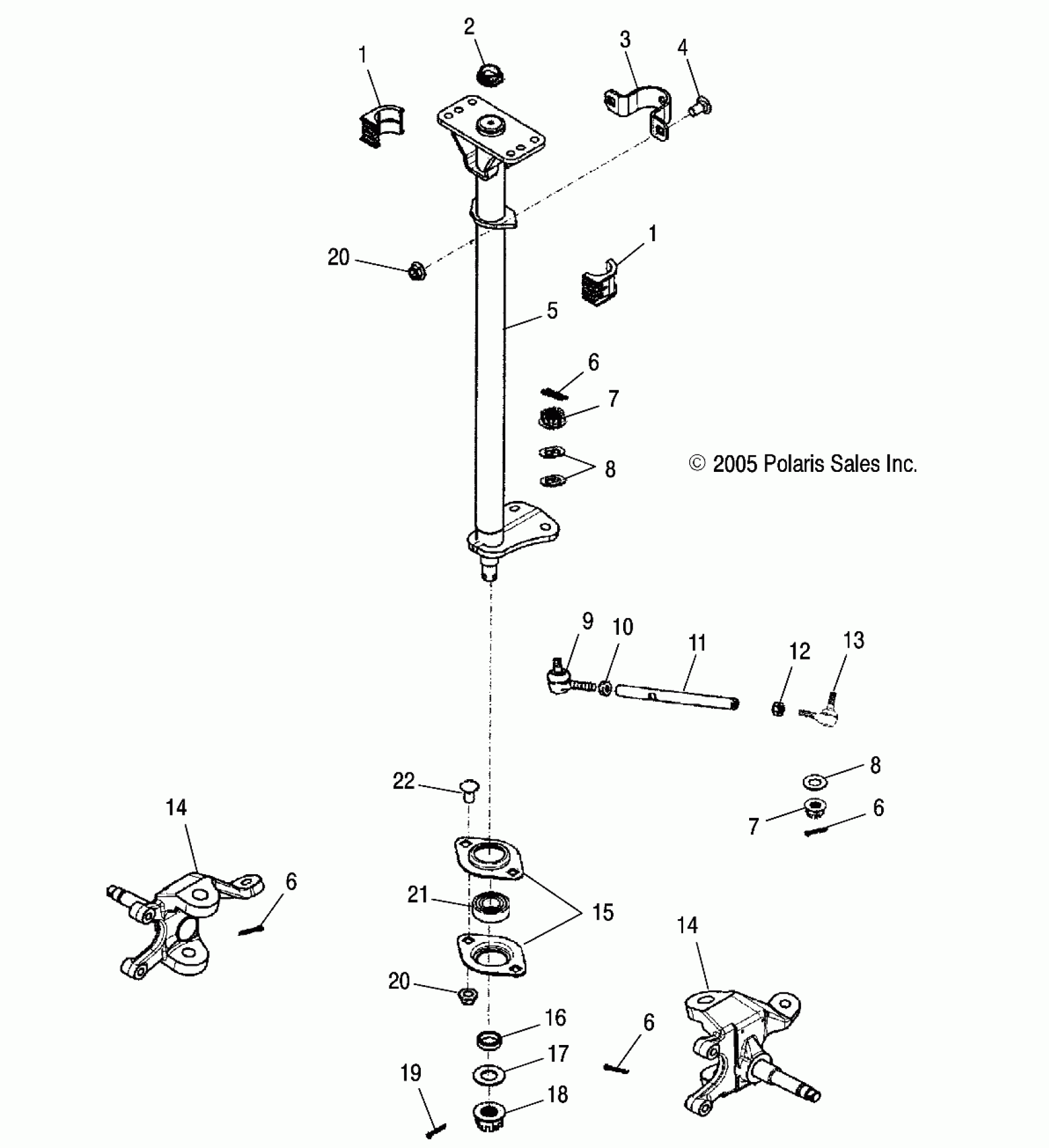

Polaris SAWTOOTH QUAD - A06PB20VA STEERING - A06PB20VA/VB (4999202869920286C02) Diagram

#

Description
Price

1

BUSHING, STEERING, UPPER

0452709

$19.84

1

BUSHING, STEERING, UPPER

0452709

$19.84

2

CAP, RUBBER

0452704

$3.99

3

Bracket, Bushing, Upper

0452713

$36.41

4

Bolt, Carriage

0452716

$0.79

5

Post, Steering, Black

0452826-067

$147.62

6

PIN, COTTER

0450719

$3.17

6

PIN, COTTER

0450719

$3.17

6

PIN, COTTER

0450719

$3.17

6

PIN, COTTER

0450719

$3.17

7

NUT, CASTLE

0450502

$9.52

7

NUT, CASTLE

0450502

$9.52

8

WASHER

0450279

$3.17

8

WASHER

0450279

$3.17

9

Rod End, LH

0453129

$60.70

10

NUT, HEX

0453131

$4.76

11

Tie Rod

0453082

Unavailable

12

NUT, JAM

0450224

$4.76

13

Rod End, RH

0453128

Unavailable

14

Knuckle, LH

0452274

Unavailable

14

Knuckle, RH

0452275

Unavailable

14

Knuckle, LH

0452274

Unavailable

14

Knuckle, RH

0452275

Unavailable

15

FLANGETTE

0452707

$10.51

16

SPACER, RING

0452719

$8.73

17

WASHER

0452671

$4.99

18

NUT, CASTLE

0452669

$12.99

19

PIN, COTTER

0450395

$3.17

20

Nut

0450882

$1.59

20

Nut

0450882

$1.59

21

Bearing, Ball

0450261

$39.68

22

BOLT, CARRIAGE

0452776

$4.76
