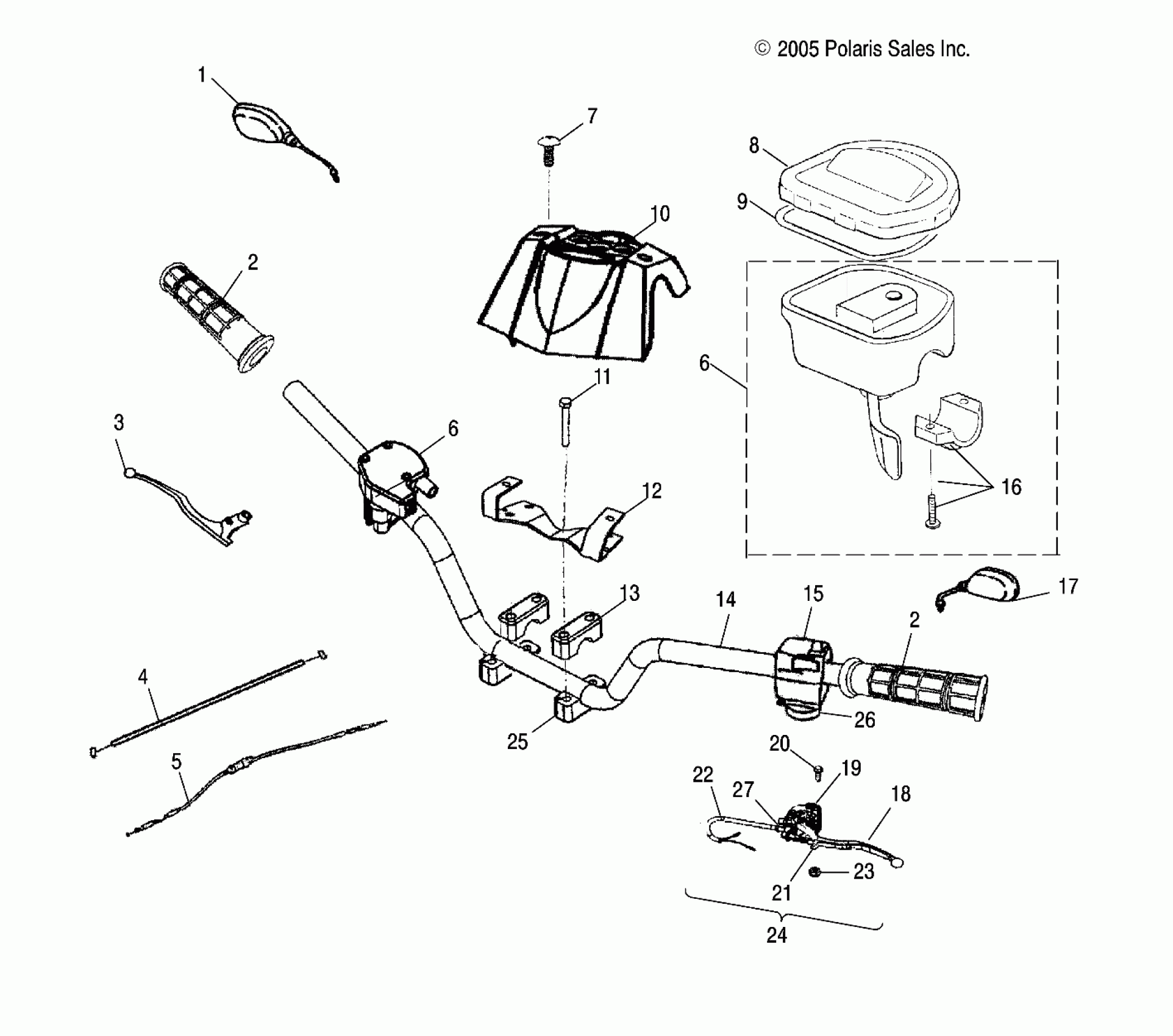

Polaris SAWTOOTH QUAD - A06PB20VA HANDLEBAR - A06PB20VA/VB (4999202869920286B14) Diagram

#

Description
Price

1

Mirror, Quad, RH

0453288

$18.89

2

GRIP, HANDLEBAR

0453370

$23.99

2

GRIP, HANDLEBAR

0453370

$23.99

3

Asm., Brake Lever, RH

0453311

$69.84

4

Choke, Cable, Manual

0452697

Unavailable

5

CABLE, THROTTLE

0453099

$51.99

6

Asm., Throttle Control, 2x4

2010204

Unavailable

6

Asm., Throttle Control, 2x4

2010204

Unavailable

7

Bolt

0450667

$5.59

8

COVER, THROTTLE CONTROL

5434113

$31.99

9

O-RING

5411439

$2.39

10

Cover, Handlebar, Black

0453287-070

$24.79

11

Bolt

0452699

Unavailable

12

Bracket, Handlebar/Pod

0453233

$13.19

13

CLAMP, HANDLEBAR, UPPER

0452688

$31.99

14

Handlebar, Black

0453232

$67.99

15

Asm., Switch, LH

0453314

Unavailable

16

ASM-THROTTLE CLAMP

2010191

$31.99

17

Mirror, Quad, LH

0453289

$19.03

18

Lever, Brake, LH

0450693

$27.99

19

Cam, Brake, Wide

0452642

$104.75

20

BOLT, BRAKE LEVER

0450807

$7.19

21

Lock, Brake, Hand

0453285

$8.73

22

Sensor, Brake

0453286

$71.99

23

NUT

0450808

$2.39

24

Asm., Brake Lever, LH

0453284

Unavailable

25

CLAMP, HANDLEBAR, LOWER

0452685

$31.99

26

Asm., Choke, Manual

0451037

$36.41

27

Adjuster, Brake Cable

0454260

Unavailable
