Description

Price

-

Asm., Driven Clutch [Incl. All less 9]

0452477

$379.99

1

Asm., Drive Plate [Incl. 2-7]

0452478

Unavailable

2

Clip, Cir

0450052

Unavailable

3

Plate, Drive, Side

0452480

Unavailable

4

Spring, Clutch

0452481

Unavailable

5

Weight, Clutch

0452482

Unavailable

6

Bushing, Rubber

0452483

Unavailable

7

Plate, Drive, Inner

0452479

Unavailable

8

NUT

0452492

$7.19

9

HOLD, CAM

0452475

$95.99

10

CLUTCH, OUTER

0452495

$175.99

11

WASHER

0452476

$5.59

12

RETAINER, BALL

0452499

$47.99

13

WASHER, BELLEVILLE

0452500

$23.99

14

GUIDE, CAM

0452501

$31.99

15

SCREW, SET

0452768

$3.99

16

NUT, DRIVEN

0452502

$31.99

17

Washer, Gear

0452440

$4.79

18

CLIP, CIR

0452497

$3.99

19

BALL, STEEL

0452498

$5.59

20

SPRING, CLUTCH

0452490

$47.99

21

SEAL, COLLAR

0452491

$11.99

22

O-RING

0452494

$3.19

23

PIN, GUIDE

0452488

$12.79

23

PIN, GUIDE

0452488

$12.79

24

ROLLER, GUIDE

0452489

$12.79

24

ROLLER, GUIDE

0452489

$12.79

25

ASM., SHEAVE, MOVEABLE

0452487

$99.99

26

SEAL, DRIVEN

0452493

$11.19

26

SEAL, DRIVEN

0452493

$11.19

27

ASM., SHEAVE, DRIVEN [INCL. BEARINGS AND CLIP]

0452484

$119.99

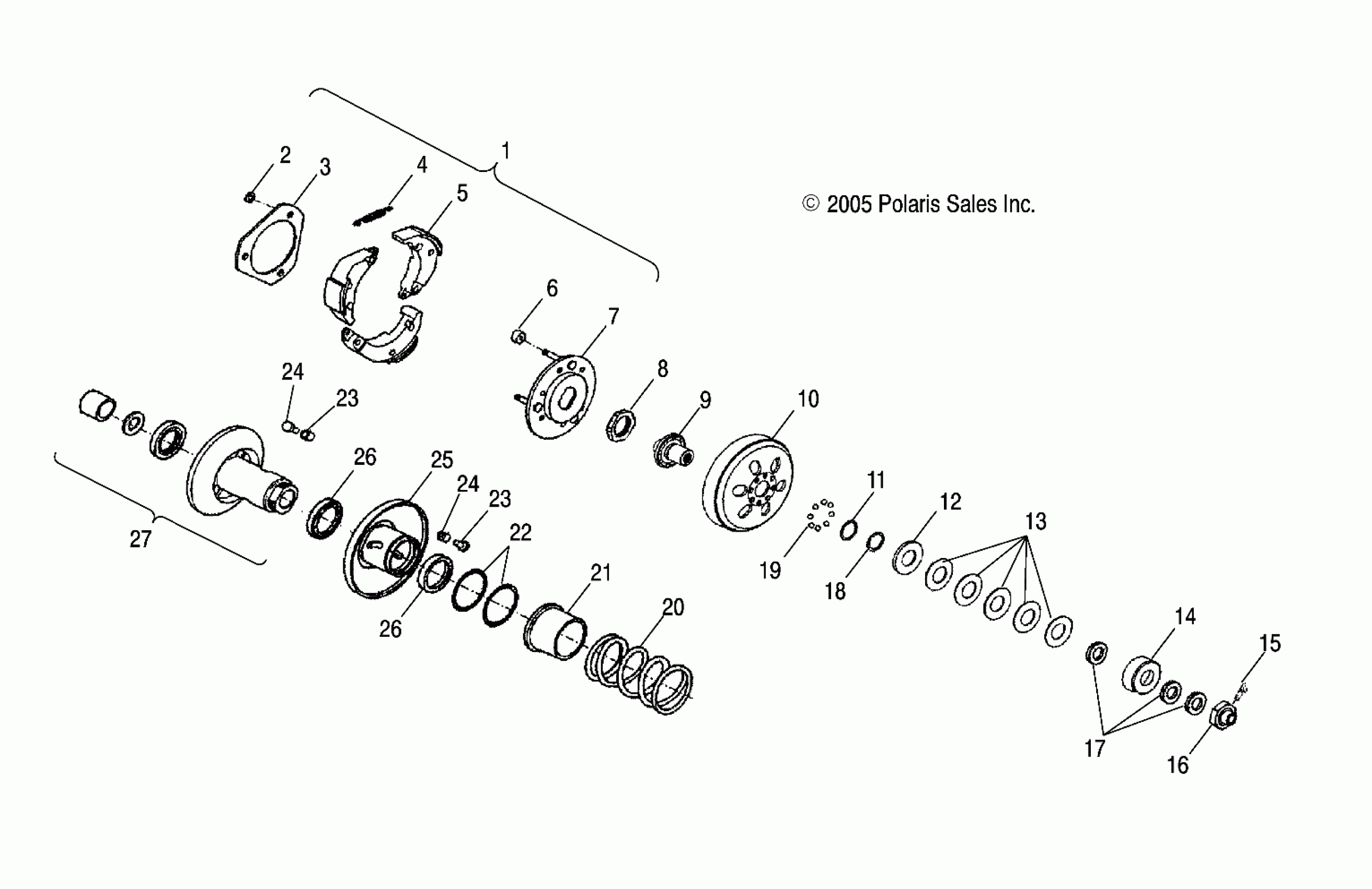

Polaris SAWTOOTH QUAD - A06PB20VA DRIVEN CLUTCH - A06PB20VA/VB (4999202799920279A11) Diagram

Asm., Driven Clutch [Incl. All less 9]

Asm., Drive Plate [Incl. 2-7]

Clip, Cir

Plate, Drive, Side

Spring, Clutch

Weight, Clutch

Bushing, Rubber

Plate, Drive, Inner

NUT

HOLD, CAM

CLUTCH, OUTER

WASHER

RETAINER, BALL

WASHER, BELLEVILLE

GUIDE, CAM

SCREW, SET

NUT, DRIVEN

Washer, Gear

CLIP, CIR

BALL, STEEL

SPRING, CLUTCH

SEAL, COLLAR

O-RING

PIN, GUIDE

PIN, GUIDE

ROLLER, GUIDE

ROLLER, GUIDE

ASM., SHEAVE, MOVEABLE

SEAL, DRIVEN

SEAL, DRIVEN

ASM., SHEAVE, DRIVEN [INCL. BEARINGS AND CLIP]
