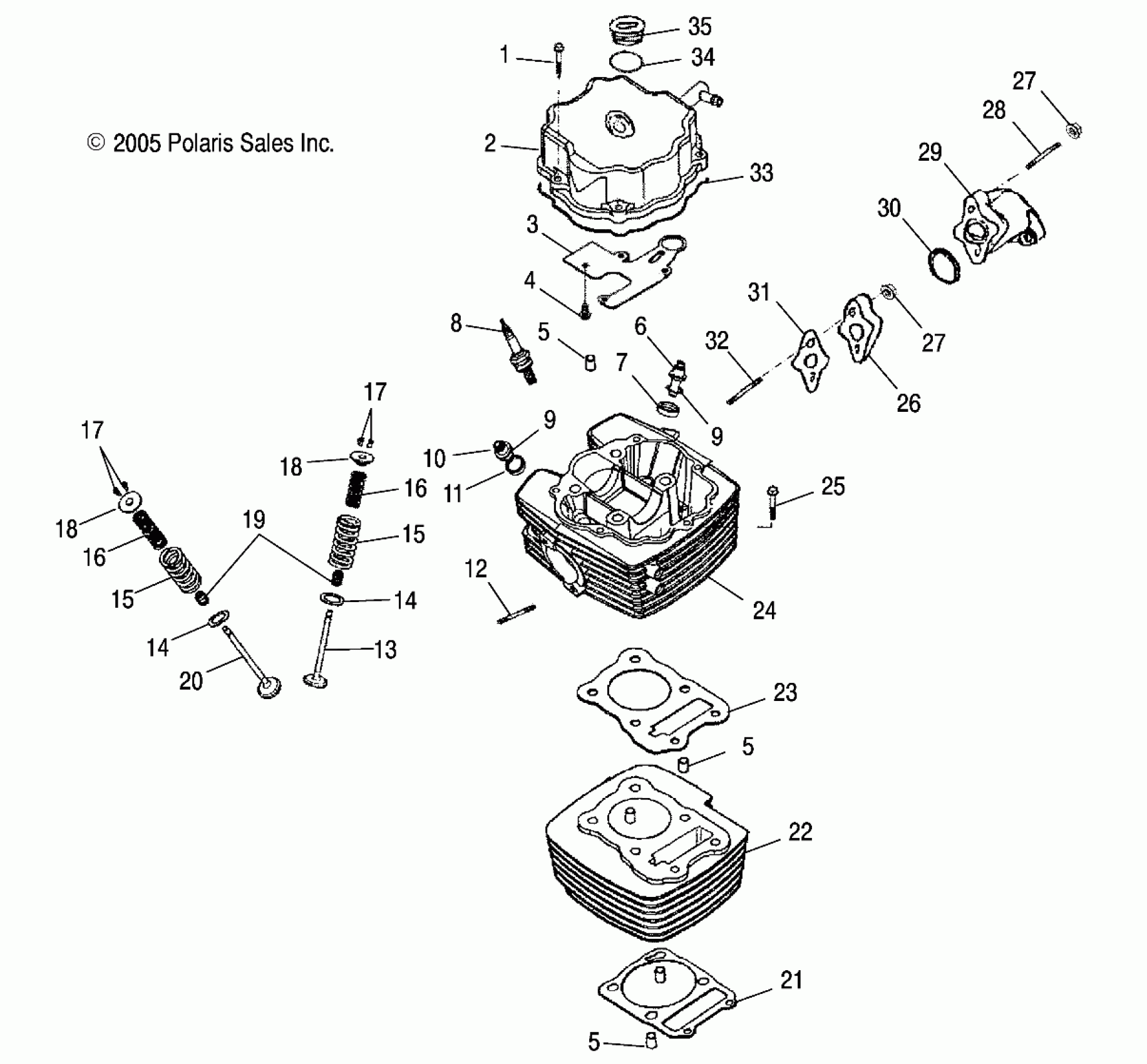

Polaris SAWTOOTH QUAD - A06PB20VA CYLINDER HEAD - A06PB20VA/VB (4999202869920286A03) Diagram

#

Description
Price

1

BOLT

0452400

$4.35

2

Cover, Cylinder Head

0452395

$101.17

3

Breather, Crankcase, Lower

0452125

$13.99

4

SCREW

0451766

$3.17

5

PIN, DOWEL

0450142

$3.97

5

PIN, DOWEL

0450142

$3.97

5

PIN, DOWEL

0450142

$3.97

6

GUIDE, VALVE INTAKE

0452380

$34.99

7

SEAT, INTAKE

0452378

$32.37

8

PLUG, SPARK

0452402

$3.97

9

O-RING

0452382

$1.60

9

O-RING

0452382

$1.60

10

GUIDE, VALVE EXHAUST

0452381

$34.99

11

SEAT, EXHAUST

0452379

$28.32

12

BOLT, STUD

0452398

$4.35

13

VALVE, INTAKE

0452383

$93.32

14

SEAT, VALVE, SPRING, OUTER

0452388

$8.99

14

SEAT, VALVE, SPRING, OUTER

0452388

$8.99

15

SPRING, VALVE, OUTER

0452385

$10.99

15

SPRING, VALVE, OUTER

0452385

$10.99

16

SPRING, VALVE, INNER

0452386

$8.99

16

SPRING, VALVE, INNER

0452386

$8.99

17

CLIP, RETAINER

0452389

$8.54

17

CLIP, RETAINER

0452389

$8.54

18

RETAINER, VALVE, SPRING

0452387

$26.17

18

RETAINER, VALVE, SPRING

0452387

$26.17

19

SEAL, VALVE

0452390

$9.76

20

VALVE, EXHAUST

0452384

$75.54

21

GASKET, CYLINDER

0452376

$9.70

22

CYLINDER

0452375

$323.79

23

GASKET

0452391

$56.65

24

Head, Cylinder

0452844

$139.99

25

BOLT

0452401

$5.99

26

INSULATOR, MANIFOLD

0452404

$12.94

27

NUT

0450880

$3.97

27

NUT

0450880

$3.97

28

BOLT, STUD

0452405

$4.35

29

Manifold

0452396

$62.21

30

O-RING

0452397

$1.99

31

GASKET, MANIFOLD

0452403

$4.84

32

BOLT, STUD

0452399

$4.35

33

GASKET-CYL HEAD

0452392

$24.27

34

O-Ring, Head Cover Cap

0452394

$1.60

35

CAP, HEAD COVER

0452393

$9.49
