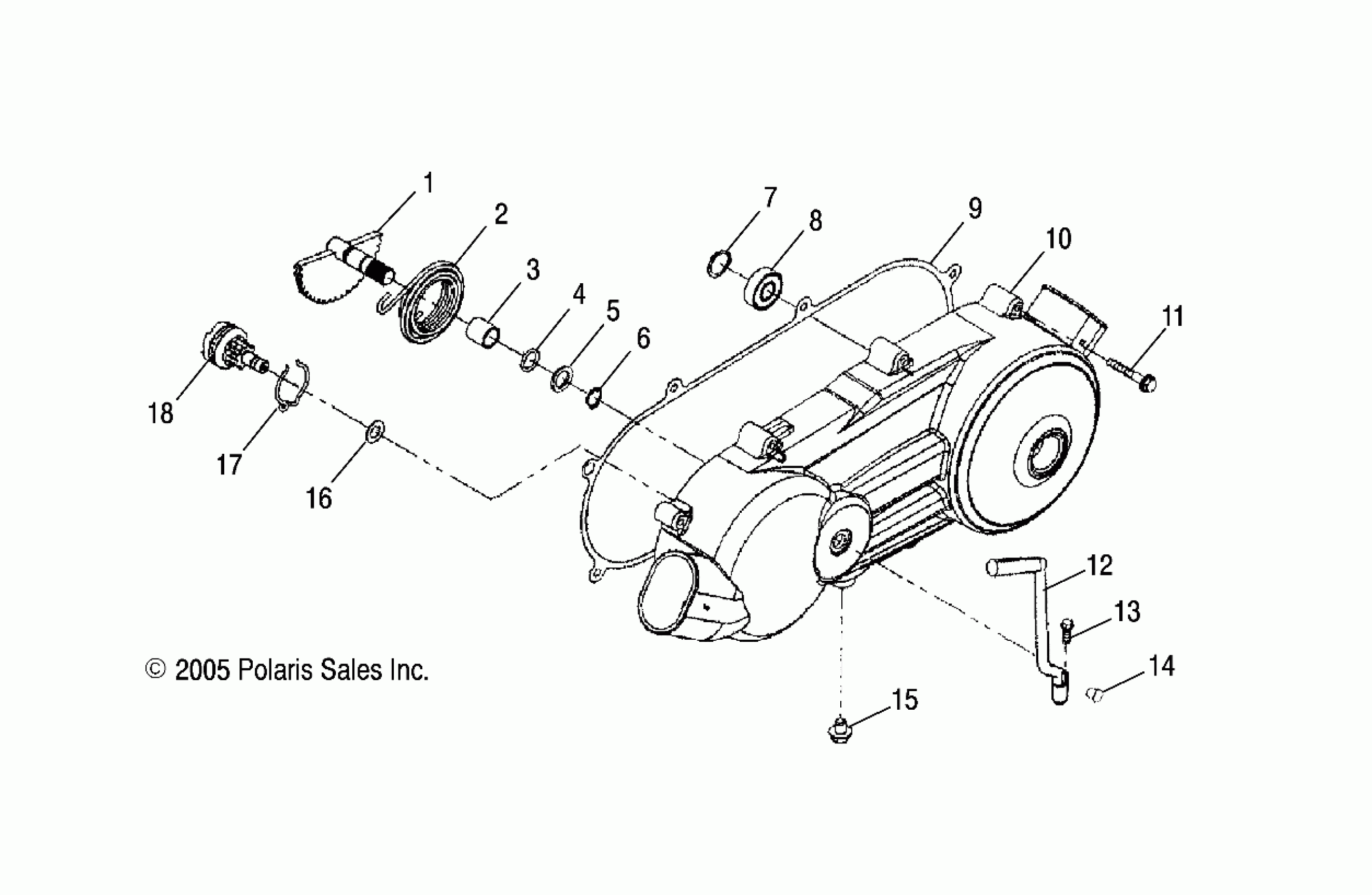

Polaris SAWTOOTH QUAD - A06PB20VA CRANKCASE COVER, LH - A06PB20VA/VB (4999202869920286A07) Diagram

#

Description
Price

1

Spindle, Kick Start

0452359

Unavailable

2

SPRING, KICK START

0452360

$35.99

3

SPACER, KICK START

0452361

$2.39

4

O-RING

0452394

$1.59

5

WASHER, FLAT

0452363

$3.99

6

CLIP, RETAINER

0452364

$3.99

7

CLIP, RETAINER

0452339

$3.99

8

Bearing, Ball

0450261

Unavailable

9

GASKET

0452328

Unavailable

10

Cover, Clutch

0452327

Unavailable

11

BOLT

0452331

$3.99

12

Asm., Kick Start

0453219

Unavailable

13

BOLT

0451704

$3.99

14

CAP, SHAFT, KICK STARTER

0451746

$5.59

15

BOLT

0452126

$4.79

16

WASHER, FLAT

0452367

$3.19

17

SPRING, KICK START GEAR

0452366

$6.39

18

GEAR, KICK START, DRIVEN

0452365

$75.99
