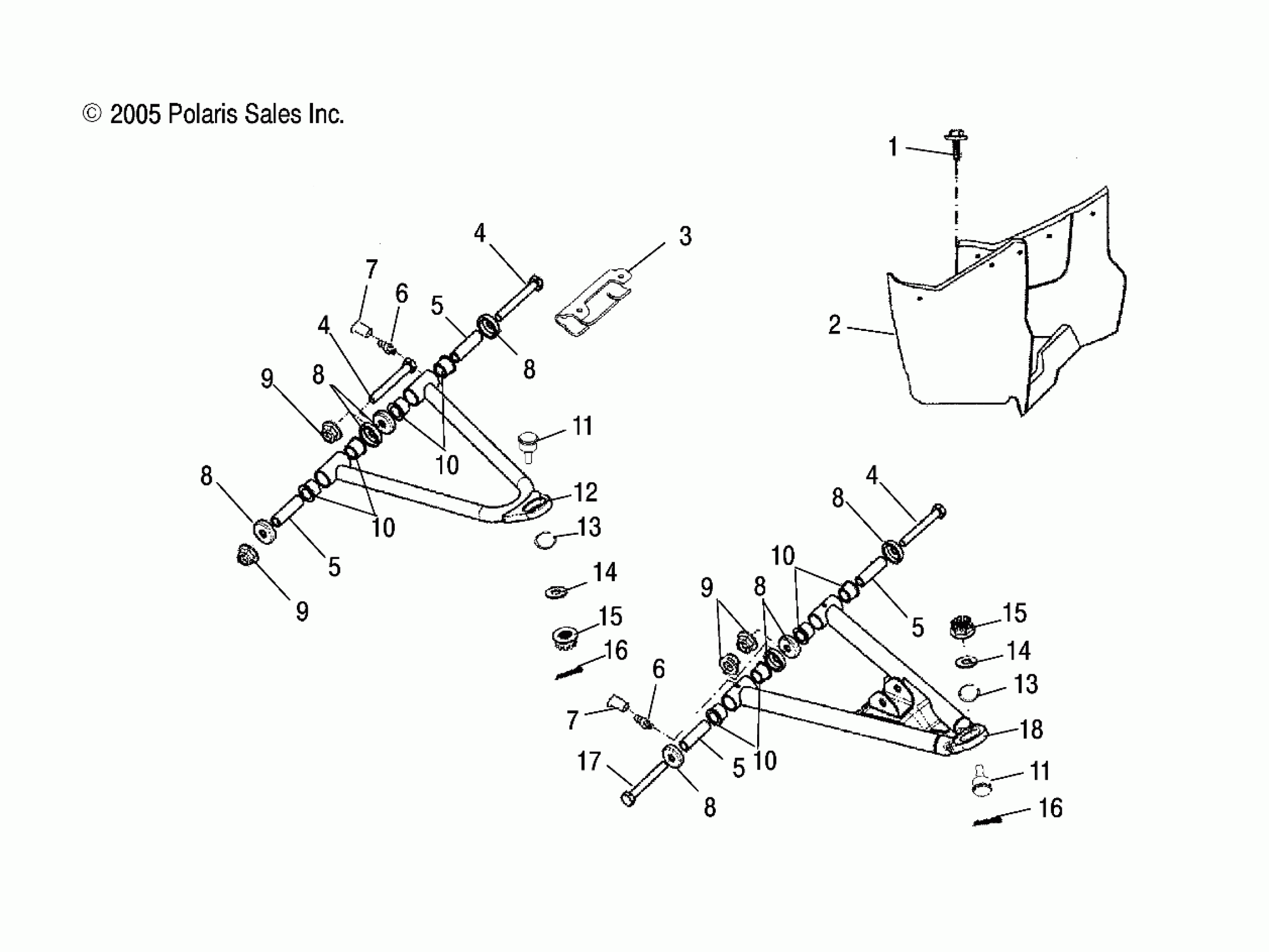

Polaris SAWTOOTH QUAD - A06PB20VA CONTROL ARM and FOOTREST - A06PB20VA/VB (4999202869920286B05) Diagram

#

Description
Price

1

BOLT, HEX

0452215

$3.97

2

Footrest, LH

0453061

Unavailable

2

Footrest, RH

0453062

Unavailable

3

Retainer, Brake Line, Front

0453079

$27.78

4

Bolt

0452626

$5.69

4

Bolt

0452626

$5.69

4

Bolt

0452626

$5.69

5

Spacer

0452625

$8.73

5

Spacer

0452625

$8.73

5

Spacer

0452625

$8.73

5

Spacer

0452625

$8.73

6

Valve, Grease

0450320

$6.46

6

Valve, Grease

0450320

$6.46

7

Cap, Rubber

0450321

$3.22

7

Cap, Rubber

0450321

$3.22

8

Cap, Rubber

0451762

$8.89

8

Cap, Rubber

0451762

$8.89

8

Cap, Rubber

0451762

$8.89

8

Cap, Rubber

0451762

$8.89

8

Cap, Rubber

0451762

$8.89

8

Cap, Rubber

0451762

$8.89

9

Nut

0450249

$3.97

9

Nut

0450249

$3.97

9

Nut

0450249

$3.97

10

Bushing

0451763

$10.32

10

Bushing

0451763

$10.32

10

Bushing

0451763

$10.32

10

Bushing

0451763

$10.32

11

Joint, Ball

7081190

$48.40

11

Joint, Ball

7081190

$48.40

12

A-Arm, Upper, LH, Black

0452624-067

$81.17

12

A-Arm, Upper, RH, Black

0452623-067

$68.25

13

Ring, Snap

0452630

$4.76

13

Ring, Snap

0452630

$4.76

14

WASHER

0450279

$3.17

14

WASHER

0450279

$3.17

15

NUT

0450502

$9.52

15

NUT

0450502

$9.52

16

PIN, COTTER

0450719

$3.17

16

PIN, COTTER

0450719

$3.17

17

Bolt

0451764

$10.32

18

A-Arm, Lower, LH, Black

0452622-067

$89.68

18

A-Arm, Lower, RH, Black

0452621-067

Unavailable
