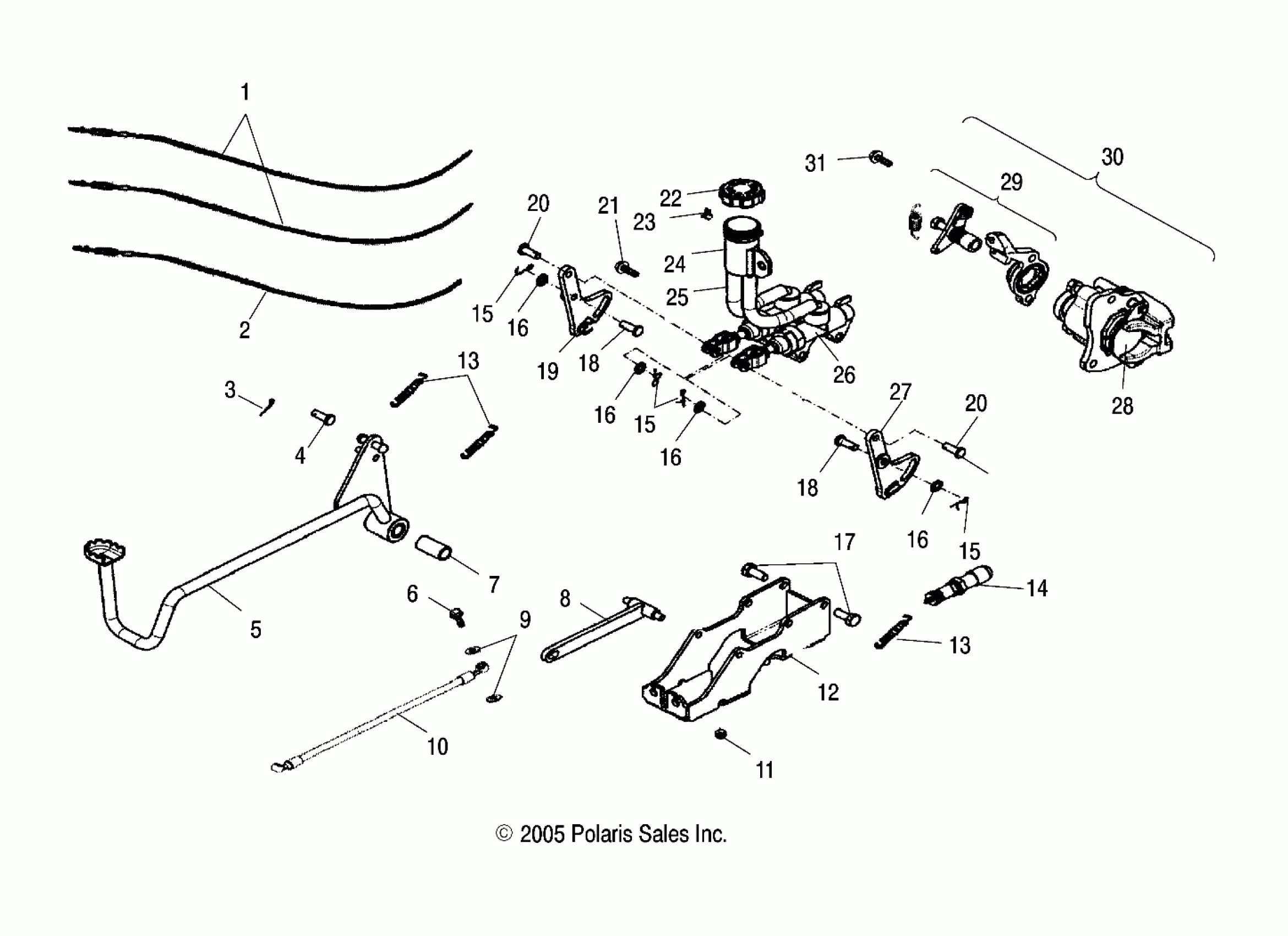

Polaris SAWTOOTH QUAD - A06PB20VA BRAKE, REAR - A06PB20VA/VB (4999202869920286B13) Diagram

#

Description
Price

1

Cable, Brake, Front

0453272

Unavailable

2

Cable, Brake, Rear

0452873

Unavailable

3

PIN, COTTER

0450719

$3.17

4

PIN

0453363

$3.97

5

Lever, Brake, Foot

0453273

$65.87

6

BOLT, BANJO

0452871

$10.32

7

BUSHING

0453274

$5.56

8

Rod, Connecting, Brake

0453278

$53.17

9

Washer, Plain

0453313

$1.59

10

Hose, Brake

0453301

$92.99

11

NUT

0450282

$3.17

12

Plate, Mounting, Master Cylinder

0453298

$90.48

13

Spring, Brake Lever

0452686

$5.65

13

Spring, Brake Lever

0452686

$5.65

14

SWITCH, BRAKE LIGHT

0453015

$47.49

15

Pin

0453281

$1.27

15

Pin

0453281

$1.27

15

Pin

0453281

$1.27

16

Washer, Plain

0453279

$0.63

16

Washer, Plain

0453279

$0.63

16

Washer, Plain

0453279

$0.63

16

Washer, Plain

0453279

$0.63

17

Bolt, Hex w/Spring Washer

0453126

$3.97

18

Pin

0453280

$1.43

18

Pin

0453280

$1.43

19

Arm, Lever, RH

0453276

$49.21

20

Bolt

0453282

$1.43

20

Bolt

0453282

$1.43

21

Bolt, Hex, Washer Face

0452816

$4.75

22

Asm., Cap, Reservoir, Brake Fluid

0453023

$12.30

23

CLAMP

0453300

$4.76

24

Reservoir, Fluid Brake

0453299

$3.33

25

Hose, Brake

0453277

$4.92

26

Cylinder, Master

0453293

Unavailable

27

Arm, Lever, LH

0453275

$49.21

28

Pad, Brake, Rear

0453812

Unavailable

29

Asm., Arm, Brake Lever

0453199

Unavailable

30

Asm., Caliper Brake [Incl. 28,29]

0453201

Unavailable

31

Bolt, Hex, Washer Face

0452888

$3.17
