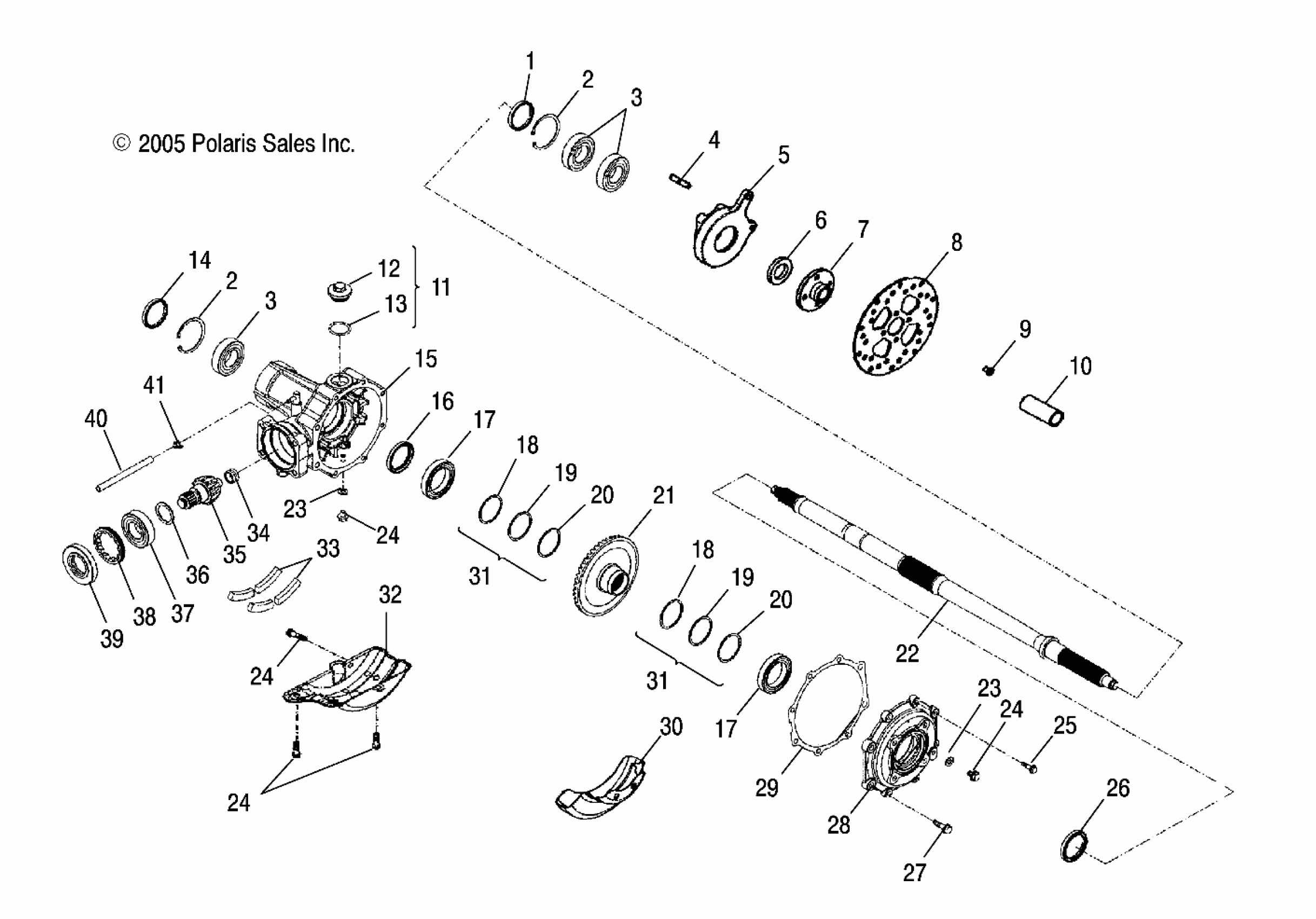

Polaris SAWTOOTH QUAD - A06PB20VA AXLE, REAR WHEEL - A06PB20VA/VB (4999202869920286C01) Diagram

#

Description
Price

1

O-RING

0452718

$1.99

2

RETAINER

0452717

$10.39

2

RETAINER

0452717

$10.39

3

BEARING

0452715

Unavailable

3

BEARING

0452715

Unavailable

4

Bolt, Stud, Brake, Rear

0452906

$3.03

5

Asm., Seat, Rear Axle

0452900

$74.27

6

Seal, Oil

0452901

Unavailable

7

Mount, Brake Disc

0452902

$54.27

8

Disc, Brake, Rear

0452903

$91.65

9

BOLT, BRAKE DISC

0452904

$7.19

10

Spacer, Collar

0452905

$14.39

11

Asm., Cap [Incl. 12,13]

0452754

$10.39

12

Cap, Oil Fill

0452368

$23.99

13

O-RING, DRAIN PLUG

0452371

$1.59

14

SEAL, OIL

0452752

$15.99

15

GEARCASE

0453148

$303.99

16

SEAL, OIL

0452737

$11.99

17

BEARING

0452730

$35.99

17

BEARING

0452730

$35.99

18

SHIM

0452732

$5.59

18

SHIM

0452732

$5.59

19

SHIM

0452733

$5.59

19

SHIM

0452733

$5.59

20

SHIM

0452734

$5.59

20

SHIM

0452734

$5.59

21

GEAR, RING

0452736

$311.99

22

Axle

0452907

$312.99

23

Washer, Aluminum, Plain

0452712

$3.99

23

Washer, Aluminum, Plain

0452712

$3.99

24

Bolt, Hex, Washer Face

0452126

$4.79

24

Bolt, Hex, Washer Face

0452126

$4.79

24

Bolt, Hex, Washer Face

0452126

$4.79

24

Bolt, Hex, Washer Face

0452126

$4.79

25

BOLT

0452749

$3.19

26

SEAL, OIL

0452726

$11.99

27

BOLT

0452747

$4.79

28

COVER, GEARCASE

0453147

$151.99

29

GASKET, COVER

0452729

Unavailable

30

Cover, Disk, Black [VA]

0452909-067

$30.55

30

Cover, Gearcase, Silver [VB]

0452909-385

$32.15

31

Asm., Shim

0452731

Unavailable

31

Asm., Shim

0452731

Unavailable

32

Plate, Gearcase, Black [VA]

0452757-067

$79.99

32

Plate, Gearcase, Silver [VB]

0452757-385

$66.39

33

SPACER, RUBBER

0452756

$8.79

34

BEARING, NEEDLE

0452739

$59.99

35

GEAR, PINION

0452740

$135.99

36

SHIM

0452741

$12.79

37

BEARING

0452742

$35.99

38

NUT

0452743

$27.99

39

SEAL, OIL

0452745

$15.99

40

Hose, Breather

0452698

$5.19

41

Clip, Cir

0452758

$3.99
