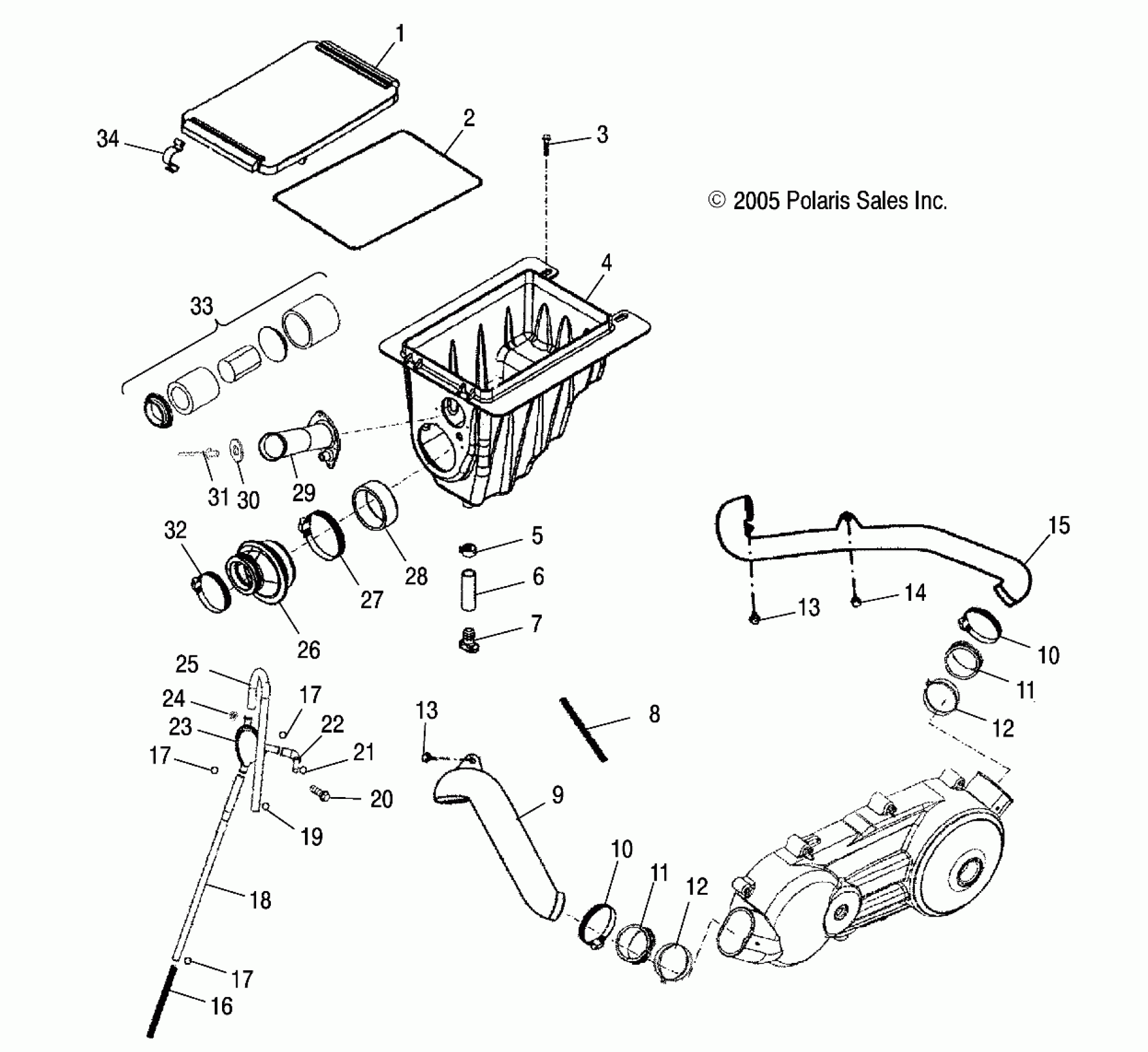

Polaris SAWTOOTH QUAD - A06PB20VA AIR CLEANER - A06PB20VA/VB (4999202869920286B01) Diagram

#

Description
Price

-

Asm., Air Box [Incl. 1-7,26-34]

0453084

Unavailable

-

Asm., Breather Tube [Incl. 16-25]

0452570

Unavailable

1

Cover, Air Box

0452560

$35.99

2

Gasket

0452569

$10.39

3

Bolt

0450340

Unavailable

4

Box, Air

0452559

$127.99

5

Clamp

0452566

$4.79

6

Hose, Drain

0452567

$3.99

7

Plug, Trap

0452568

$12.79

8

Tape, Antivibration

0450863

$3.99

9

Duct, Inlet, Air Box

0452575

$79.99

10

Clamp

0452578

$5.59

10

Clamp

0452578

$5.59

11

Boot, Duct

0452574

Unavailable

11

Boot, Duct

0452574

Unavailable

12

Clamp

0452577

$10.39

12

Clamp

0452577

$10.39

13

BOLT

0450824

$2.39

13

BOLT

0450824

$2.39

14

Bolt

0453249

Unavailable

15

Duct, Outlet

0452576

$95.99

16

Spring

0452793

$7.19

17

Clip

0452796

$3.99

17

Clip

0452796

$3.99

17

Clip

0452796

$3.99

18

Tube, Breather, Ventilated

0452794

$47.99

19

Clip

0452795

$3.99

20

Bolt

0450701

$1.49

21

Clip

0450054

$1.49

22

Tube, Breather, Inlet

0452572

Unavailable

23

Separator, Oil

0452307

Unavailable

24

Nut, Flange

0450880

$3.99

25

Tube, Breather, Outlet

0452573

Unavailable

26

Boot

0452563

$27.99

27

Clamp

0452561

$7.99

28

Duct

0452557

$23.99

29

Duct, Air Box

0453085

Unavailable

30

Washer, Flat

0453098

$3.99

31

Rivet

0453097

$3.19

32

Clamp

0452562

$7.99

33

Element, Air Cleaner

0452306

Unavailable

34

Clip

0452565

$4.79
