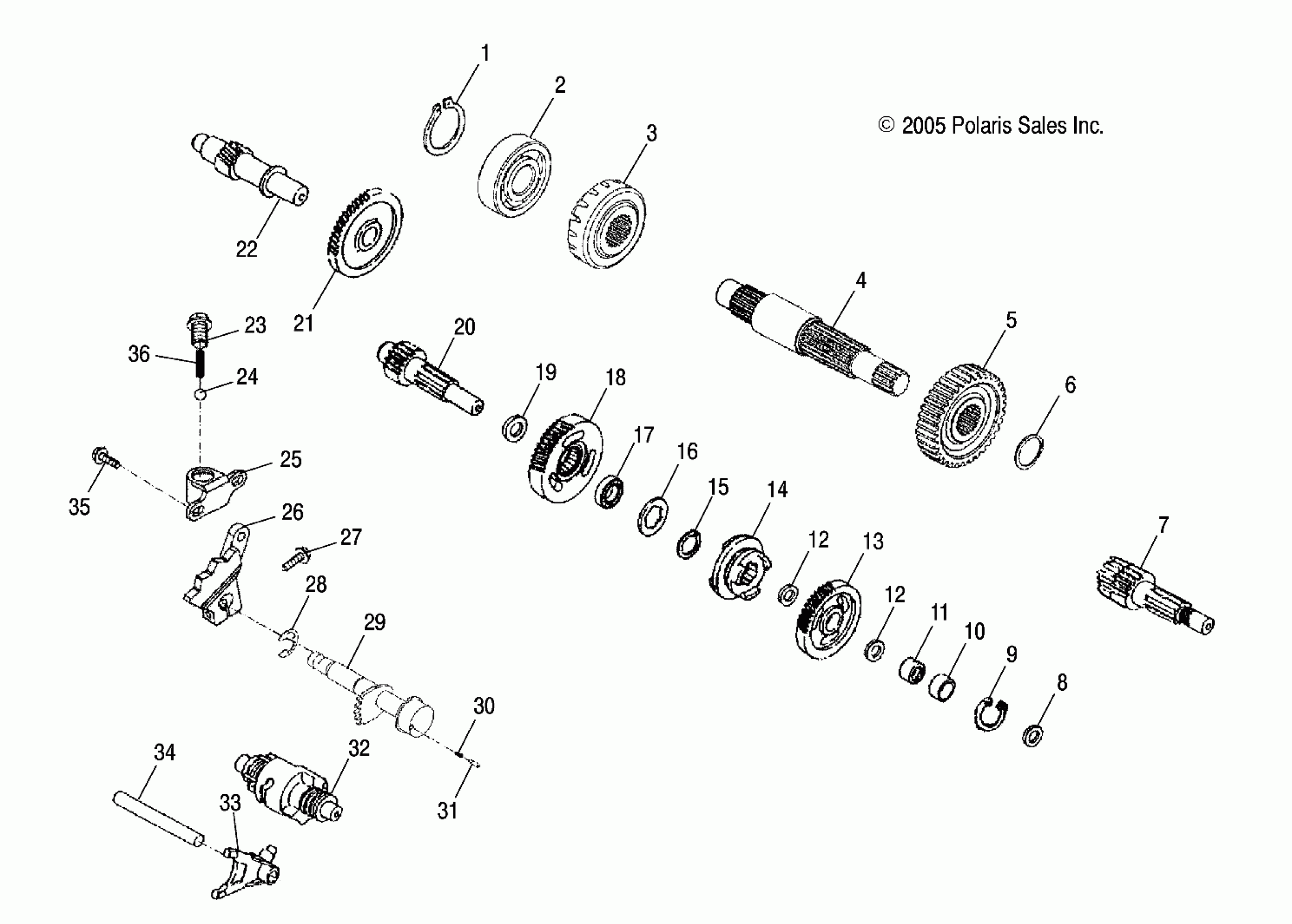

Polaris SAWTOOTH - A06SB20AA TRANSMISSION - A06SB20AA/AB (4999202799920279A13) Diagram

#

Description
Price

-

ASM., REVERSE GEAR [INCL. 17,18]

0452519

$135.99

-

Asm., Spur Gear [Incl. 11,13]

0452514

Unavailable

1

CLIP, RETAINER

0452339

$3.99

2

BEARING, BALL

0452349

$35.99

3

GEAR, FINAL RING

0452531

$103.99

4

SHAFT

0452528

$91.99

5

GEAR

0452530

$103.99

6

CLIP, CIR

0453779

$4.79

7

SHAFT, DRIVE

0452525

$91.99

8

Washer, Plain

0453123

Unavailable

9

CLIP, CIR

0450187

$3.99

10

COLLAR, SHAFT

0453120

$23.99

11

BUSHING

0452516

$6.15

12

WASHER, FLAT

0452513

$4.79

12

WASHER, FLAT

0452513

$4.79

13

Gear

0453121

Unavailable

14

RATCHET, SHIFT

0452517

$83.99

15

Ring, Retainer

0452789

$5.59

16

WASHER, SPLINE

0452518

$7.99

17

BEARING, NEEDLE

0452521

$15.99

18

Gear, Reverse

0452520

$76.89

19

WASHER, FLAT

0452522

$10.39

20

SHAFT, TRANSMISSION

0453551

$95.99

21

GEAR, COUNTER

0452527

$103.99

22

SHAFT, COUNTER

0452526

$79.99

23

Bolt, Detent

0452635

$12.21

24

BALL, STEEL

0452134

$4.79

25

Housing

0452634

Unavailable

26

Detent

0452633

$71.10

27

BOLT

0450189

$1.49

28

E-CLIP

0452161

$3.99

29

SPINDLE

0452160

$63.99

30

SPRING, DRUM SENSOR

0452162

$3.99

31

ROLLER, DRUM SENSOR

0452163

$7.19

32

Drum, Gear Shift Asm.

0452159

$159.99

33

FORK, SHIFT

0452157

$59.99

34

SHAFT, GEAR SHIFT

0452158

$8.79

35

BOLT

0452330

$3.99

36

Spring, Detent

0453033

$1.59
